PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 1600 × 1200 mm
Overall footprint	1600 x 1600 x 1200 mm
Worksurface height from floor	750 mm
Partition height above worksurface	350 mm
Partition panel thickness	83 mm
Knee clearance height under worksurface	620 mm
Knee opening width at curved front	800 mm
Modesty panel height	450 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Cable grommet diameter	60 mm
Partition perforated vent strip height	150 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worksurface static load capacity	300 kg
Mobile pedestal drawer static load	40 kg
Recommended user weight capacity	120 kg
Surface scratch resistance	2000 abrasion cycles
Fabric partition light transmission	15%
Product warranty	5 years
Available color options	30
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worksurface core	25mm thick E1 grade melamine-faced chipboard
Worksurface edge	2mm thick PVC edge banding
Partition frame	1.2mm thick powder-coated aluminum alloy
Partition infill lower panel	Sage green woven fabric wrapped fiberboard
Partition top vent panel	Perforated powder-coated steel mesh
Modesty panels	18mm thick melamine particleboard matching worksurface finish
Mobile pedestal drawer fronts	18mm thick sage green melamine board with key lock
Mobile pedestal casters	50mm diameter hard plastic swivel casters
Drawer slides	Full extension cold-rolled steel ball bearing slides
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connection system	Steel connecting brackets link adjacent workstations for multi-seat layouts
Cable management	60mm desktop grommet routes power/data cables to under-desk raceway
Mobile pedestal mobility	Four swivel casters allow pedestal to be repositioned under either desk arm
Drawer security	Central key lock secures all pedestal drawers for personal document storage
Privacy partition function	1200mm total height blocks direct line of sight between seated adjacent workers
Curved knee cutout	Rounded inner corner eliminates sharp edges and increases leg movement range
Drawer operation	Full-extension slides allow 100% drawer access for legal/letter size file storage
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office space	Provides individual seated work zones with visual privacy in shared office environments
Call center and administrative staff zones	Supports long-duration seated computer work with ergonomic knee clearance
Small business team work areas	Modular brackets allow 2+ person configurations to scale with team size
Startup and co-working spaces	Two-tone light wood/sage green finish fits modern casual office design aesthetics
Back office administrative departments	Integrated lockable storage keeps documents and personal items secure at each seat

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements for commercial use
EN 1335-1:2020	Office furniture ergonomic dimensions for seated workstations
EN 1022:2018	Domestic and office furniture stability test requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance and safety standard for commercial office use
ANSI/BIFMA X5.6-2016	Panel systems and cubicle workstations structural performance standard
ANSI/BIFMA X5.9-2019	Storage cabinets and pedestals durability and load rating standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applies to worksurface and cabinet components
GB 18580-2017	Formaldehyde emission limits for wood-based panels, requires E1 grade panel compliance
GB/T 35607-2017	Stability and strength requirements for office tables and workstations

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applies to worksurface and cabinet components;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requires E1 grade panel compliance;
3. GB/T 35607-2017: Stability and strength requirements for office tables and workstations;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L1600-SG-MP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L1600-SG-MP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L1600-SG-MPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

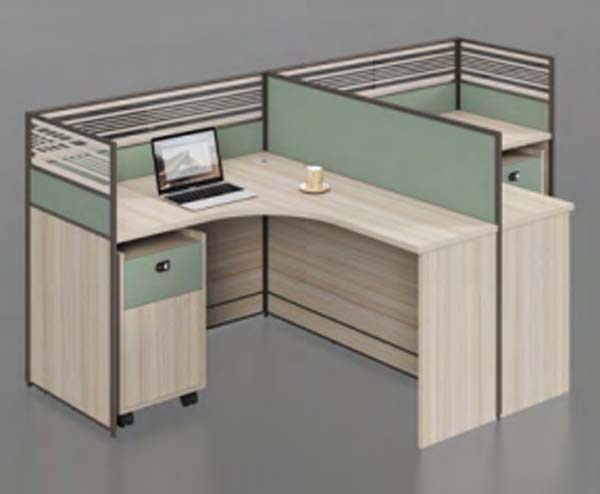

The L-Shaped Modular Office Cubicle Workstation with Mobile Pedestal is a functional, unbranded office desk solution designed to balance privacy, flexibility, and utility for shared work environments. This model features a streamlined two-tone aesthetic, pairing light wood-toned worksurfaces with matching modesty panels and sage green fabric privacy partitions that add soft visual contrast suited to modern office design schemes. The overall footprint forms a symmetrical L-shape, with a curved inner knee cutout that eliminates sharp edges and creates a generous open leg space for seated users; low-profile partitions rise just high enough to block direct line of sight between adjacent seated workers without creating a closed-off, isolated feel, and the perforated steel vent panel at the top of each partition supports gentle air circulation across work zones.
The worksurface is constructed from 25mm thick E1 grade melamine-faced particleboard, finished with 2mm thick PVC edge banding to resist daily wear, withstanding 2000 abrasion cycles for reliable scratch resistance. Privacy partitions use a rigid 1.2mm thick powder-coated aluminum frame, with a lower infill of sage green woven fabric wrapped fiberboard that allows 15% light transmission to maintain ambient light flow without compromising privacy. The integrated 60mm desktop grommet routes power and data cables to an under-desk raceway to reduce surface clutter. The included lockable mobile pedestal sits on 50mm hard plastic swivel casters, allowing it to slide easily under either arm of the L-shaped desk to suit user preference; its full-extension cold-rolled steel ball bearing slides allow full access to drawers sized for legal and letter size files, secured by a central key lock to protect personal documents and small items.
Each workstation supports a 300kg static load on the worksurface, 40kg per pedestal drawer, and a 120kg recommended user weight capacity, with 620mm of under-desk knee clearance to support comfortable long-duration seated work. Steel connecting brackets allow adjacent units to be linked into multi-seat layouts that scale with team size, making the unit suitable for open plan offices, call centers, administrative zones, small business team areas, startup offices, co-working spaces, and back office departments. The product is backed by a 5-year warranty, with 30 available color options to align with varied interior palettes. Procurement teams should note each unit ships in 2 cartons, with a packaged gross weight of 120kg and packaging volume of 0.8 cubic meters per set, requiring 40 minutes of assembly time per station, and plan layout spacing and installation resources accordingly when scaling to multi-seat configurations.

L-Shaped Modular Office Cubicle Workstation with Mobile Pedestal Specifications
