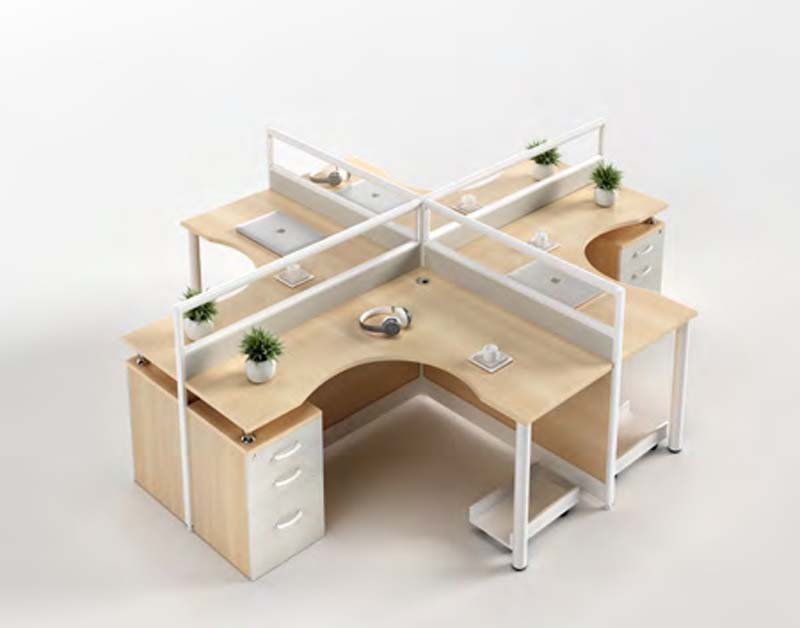

Name: 4-Person Cross-Shaped Modular Office Workstation with Mobile Pedestals
Brand: KANAITE
SKU: NTKRNG

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2840 × 2840 × 1100 mm
overall assembled dimensions	2840 x 2840 x 1100 mm
worksurface height	760 mm
single L-shaped workstation arm length	1420 mm
single workstation worktop depth	600 mm
knee well clearance height under worktop	650 mm
knee well arch width at front edge	800 mm
privacy divider height above worktop	340 mm
mobile 3-drawer pedestal dimensions	400 x 500 x 620 mm
worktop thickness	25 mm
cable grommet diameter	60 mm
support leg section size	50 x 50 mm
leveler foot adjustment range	15 mm
pedestal caster diameter	50 mm
edge banding thickness	2 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total product net weight	260 kg
static load capacity per worktop	120 kg
drawer slide cycle rating	50000 cycles
hinge and lock cycle rating	50000 cycles
worktop surface abrasion resistance	2000 cycles
recommended maximum user weight per station	150 kg
product warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

worktop core	E1 grade particleboard core
worktop finish	Light oak melamine laminate facing
edge banding	2mm thick PVC edge banding
support frame and legs	1.2mm thick powder-coated steel square tubing
privacy divider frame	1.2mm thick white powder-coated aluminum profile
divider infill panel	1.0mm thick steel panel with white powder coating
mobile pedestal body	Matching melamine faced particleboard
pedestal hardware	Zinc alloy drawer pulls and keyed locks
pedestal casters	Hard nylon swivel casters
leveling feet	Reinforced nylon base with steel threaded stem
cable management parts	ABS plastic cable grommets
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

four independent L-shaped work zones	Symmetric cross layout separated by dividers for individual staff workspaces
under-desk mobile storage pedestal	3-drawer lockable rolling unit positioned at outer corner of each station
surface cable access grommet	Circular port at each station for routing power and data cables from worktop to floor
adjustable leg levelers	Threaded feet at each support leg to stabilize desk on uneven office floors
lockable drawer storage	Keyed lock on each pedestal secures three drawers for personal office supplies
rolling pedestal mobility	Swivel casters allow pedestals to be repositioned or pulled out for easy access
low divider privacy separation	Mid-height dividers block direct line of sight between adjacent seated users
curved knee well cutout	Arched front edge at each station provides increased seated leg room
modular assembly design	Knock-down construction allows reconfiguration or expansion of workstation clusters
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office space	Provides four partitioned workstations for team members in a compact footprint
Startup co-working space	Modular layout allows flexible team expansion and dedicated assigned seats
Small business admin area	Integrated storage reduces need for separate filing cabinets for front office staff
Call center team zones	Low dividers reduce visual distraction while allowing easy team communication
Government staff workspace	Commercial grade durability meets standard public sector office furniture requirements
Recommended supporting configuration	Pair with mid-back ergonomic office chairs, monitor arms, and under-desk cable management trays

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements for desk work surfaces
EN 1335-1:2020	Office furniture ergonomic dimensions for seated work surface clearance
EN 15372:2008	Durability and stability requirements for non-domestic office storage units

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance and safety standard for worktop load and stability
ANSI/BIFMA X5.9-2019	Storage units performance standard for drawer slide and lock durability
ANSI/BIFMA X7.1-2020	Formaldehyde emission standard for low-emission office furniture materials

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to panel worktops and pedestals
GB/T 5237.1-2008	Wrought aluminum alloy profiles for partition frames, applicable to divider structure
GB/T 13668-2015	Requirements for steel office storage furniture, applicable to mobile pedestal hardware
GB 18580-2017	Formaldehyde emission limits for wood-based panels used in indoor office furniture
GB/T 1951.1-2010	Determination of surface abrasion resistance for laminated furniture worktops

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to panel worktops and pedestals;
2. GB/T 5237.1-2008: Wrought aluminum alloy profiles for partition frames, applicable to divider structure;
3. GB/T 13668-2015: Requirements for steel office storage furniture, applicable to mobile pedestal hardware;
4. GB 18580-2017: Formaldehyde emission limits for wood-based panels used in indoor office furniture;
5. GB/T 1951.1-2010: Determination of surface abrasion resistance for laminated furniture worktops;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CWS-4P-LW-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CWS-4P-LW-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CWS-4P-LW-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

The KANAITE CWS-4P-LW-01 is a 4-person cross-shaped modular office workstation designed to balance individual privacy and collaborative accessibility for modern work environments. It presents a symmetric cross layout that divides the overall footprint into four independent L-shaped work zones, with mid-height privacy dividers separating adjacent stations. These dividers block direct line of sight between seated users to reduce visual distraction, while retaining open sightlines above divider height to support easy team communication. Each L-shaped work arm extends to form a generous individual workspace, with a worksurface positioned at a standard office-appropriate height, and adequate knee well clearance to support comfortable seated postures for extended work periods.
Constructed for consistent commercial use, the workstation’s worktops feature an E1 grade particleboard core finished with light oak melamine laminate, edged with 2mm thick PVC banding to resist impact and wear from daily use. The support structure relies on 1.2mm thick powder-coated steel square tubing for legs and frames, paired with threaded adjustable leg levelers to stabilize the unit on uneven flooring. Privacy dividers use 1.2mm thick white powder-coated aluminum frames with 1.0mm thick powder-coated steel infill panels. Each station comes with a matching 3-drawer mobile pedestal, built from melamine-faced particleboard with zinc alloy pulls, keyed locks, and hard nylon swivel casters for smooth repositioning.
Practical functional details are integrated throughout the design: each worktop includes a circular cable access grommet to route power and data cables neatly from the surface to the floor, while each mobile pedestal’s keyed lock secures three drawers for personal office supply storage, eliminating the need for separate standalone filing cabinets in smaller footprints. The unit supports a substantial static load per worktop, with hardware rated for repeated long-term use, and is backed by a 5-year product warranty. Each set ships across multiple cartons with a referenced assembly time of 40 minutes per full unit.
This workstation is well suited for open plan office spaces, startup co-working environments, small business admin areas, call center team zones, and government staff workspaces where commercial-grade durability and compact, high-density seating are priorities. It pairs seamlessly with mid-back ergonomic office chairs, monitor arms, and under-desk cable management trays for a fully configured work setup. When procuring, teams should account for the assembled footprint to ensure adequate clearance for pedestal access and chair movement, and confirm that on-site flooring conditions are compatible with the adjustable leveler stabilization system. The modular design also supports phased workspace expansion, allowing teams to add matching units as headcount grows without disrupting existing layout cohesion.

4-Person Cross-Shaped Modular Office Workstation with Mobile Pedestals Specifications
