PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3630 × 1830 × 1250 mm
Overall footprint (L x W x H)	3630 x 1830 x 1250 mm
Worktop height from floor	762 mm
Each L-shaped worktop arm length	1800 mm
Worktop depth	700 mm
Knee clearance height under worktop	673 mm
Privacy screen total height	1250 mm
Worktop panel thickness	25 mm
Lower privacy panel thickness	40 mm
3-drawer pedestal dimensions	400 x 560 x 700 mm
Cable grommet diameter	60 mm
Steel support frame tube wall thickness	1.5 mm
Integrated metal footrest depth	300 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight reference	283 kg
Static load per workstation worktop	150 kg
Load capacity per storage drawer	30 kg
Recommended users per workstation	1 person per L-station, 2 total per pod
Drawer slide cycle rating	50000 open/close cycles
Surface abrasion resistance	2000 revolutions
Standard warranty period	5 years
Available finish variants	2 standard finishes (light oak/white, white/white)
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop core	High-density fiberboard (HDF) with 720kg/m³ density
Worktop surface	Wear-resistant melamine laminate, light oak finish
Worktop edge banding	2mm thick PVC hot-melt edge banding
Structural frame	White powder-coated cold-rolled steel square tubing
Upper privacy screen panels	Semi-transparent frosted acrylic with white steel frame
Lower privacy screen panels	Melamine-faced particleboard matching worktop finish
Drawer hardware	Three-section soft-close ball-bearing steel slides, metal cam locks
Pedestal drawer fronts	Light grey melamine finish with integrated curved pull handles
Leveling components	Nylon adjustable feet with steel threaded stems
Integrated footrests	Perforated white powder-coated steel platform
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	60mm diameter desktop grommets with under-desk routing channels
Privacy divider configuration	Three-panel corner divider separating two facing work zones
Storage drawer function	Three lockable drawers per pedestal for stationery and file storage
Leveling adjustment	Threaded adjustable feet to compensate for uneven floor surfaces
Knee access design	Concave curved knee cutout per seated position for ergonomic leg clearance
Foot support function	Fixed steel footrest platform at open desk sides for seated foot placement
Cable separation	Minimum 300mm distance between power and data cable routing paths
Mobility preparation	Pre-drilled holes for optional casters on storage pedestal for repositioning
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Provides individual work zones with visual privacy for shared office environments
Small business team work areas	Accommodates two staff members in compact corner floor space footprint
Administrative and clerical workspaces	Suitable for daily computer, paperwork and document storage tasks
Call center and customer support zones	Semi-private partitions reduce cross-staff visual distraction
Medical and financial office settings	Lockable storage meets secure document storage requirements for sensitive workplaces
Startup co-working spaces	Modular corner layout creates dedicated two-person work pods in flexible offices

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and performance requirements, applicable to worktop height and stability
EN 527-2:2016	Office worktables mechanical safety requirements, applicable to load and durability testing
EN 1335-1:2020	Office furniture workstation ergonomic dimensions, applicable to seated clearance dimensions

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability and structural performance
ANSI/BIFMA X5.9-2019	Storage units standard, applicable to drawer pedestal load and cycle testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to panel worktops and cabinet components
GB/T 3325-2017	Metal office furniture technical standards, applicable to steel frame and hardware components
GB 18580-2017	Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use
GB/T 10357.1-2013	Furniture mechanical performance test for tables, applicable to worktop static load testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to panel worktops and cabinet components;
2. GB/T 3325-2017: Metal office furniture technical standards, applicable to steel frame and hardware components;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use;
4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to worktop static load testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L2-1800-LTWH

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L2-1800-LTWH

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L2-1800-LTWHOpen Export Tool

Quick Actions

Post an RFQ

Product Description

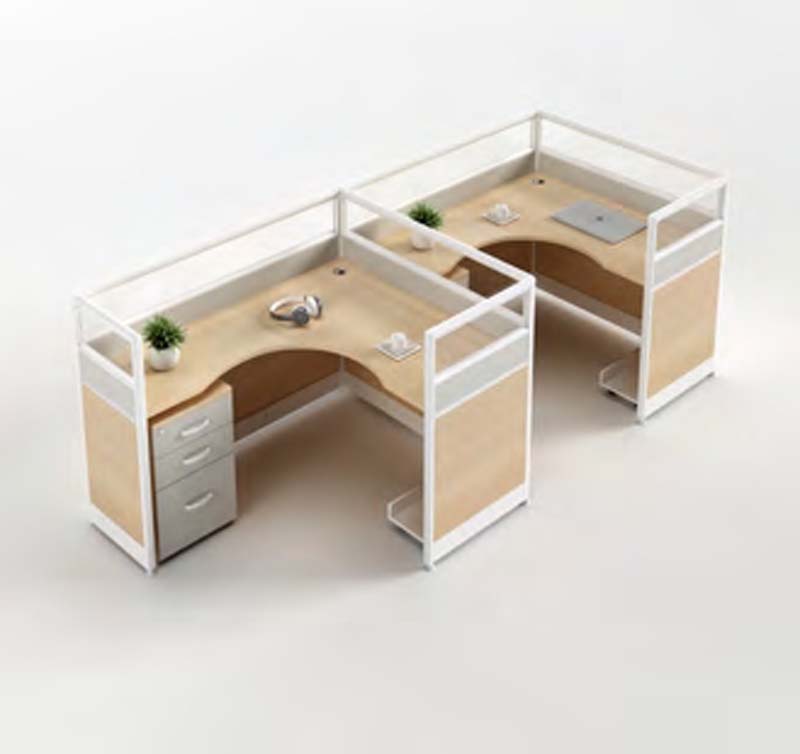

The Two-Person L-Shaped Office Cubicle Workstation (model WS-L1800-LTWH) features a modern steel-wood partition structure designed to support two individual users, one per L-shaped work zone. Its modular corner layout forms a compact, self-contained work pod, with a three-panel corner divider splitting two facing work areas. Upper privacy panels are semi-transparent frosted acrylic set in white steel frames, paired with lower melamine-faced panels matching the light oak worktop finish for balanced visual separation and open feel. A fixed steel footrest platform sits at the open desk sides, with concave curved knee cutouts at each seated position to enable comfortable leg positioning.
The workstation uses a high-density fiberboard core for its worktops, surfaced with wear-resistant light oak melamine laminate and finished with 2mm PVC hot-melt edge banding. Its structural frame is constructed from white powder-coated cold-rolled steel square tubing, supported by nylon adjustable feet with steel threaded stems to level the unit on uneven floors. Each work zone integrates a 3-drawer storage pedestal with light grey melamine fronts and integrated curved pull handles, fitted with three-section soft-close ball-bearing steel slides and metal cam locks. The worktop is set at a standard desk height, with sufficient knee clearance underneath for seated use.
Practical functionality is built into the design for daily commercial use. Desktop cable grommets pair with under-desk routing channels that maintain separation between power and data cabling to reduce tangling. Each lockable drawer supports secure storage of stationery and files, while the semi-transparent upper dividers reduce cross-staff visual distraction without fully closing off the workspace. The soft-close drawer hardware is rated for extended repeated use, and the laminate worktop surface resists abrasion from regular office equipment and paperwork.
This workstation is well suited for open plan offices, small business team corners, administrative and clerical workspaces, call center and customer support zones, medical and financial offices, and startup co-working environments. It fits compact corner floor space to maximize area efficiency, and its lockable storage supports secure document handling for sensitive work settings. For procurement, note the unit ships in two cartons per set, with a 5-year standard warranty. Teams should plan for short on-site assembly, and account for the need for level floor access during installation, as the adjustable feet compensate for minor surface unevenness. The fixed two-person pod layout works best for spaces where paired work zones are planned, rather than fully flexible unassigned desk arrangements.

Two-Person L-Shaped Office Cubicle Workstation Specifications
