PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4200 × 4200 × 1200 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single work surface static load capacity	100 kg
Mobile pedestal drawer static load	25 kg
Applicable user count	3
Total unit weight (per cluster)	280 kg
Partition panel sound transmission class	20
Caster rolling load rating (per wheel)	40 kg
Work surface abrasion resistance	2000 cycles
Recommended warranty period	3 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm melamine-faced particleboard, light oak finish
Partition upper panel	Fabric-wrapped MDF with horizontal slatted vent cutouts
Partition lower panel	Fabric-wrapped MDF, sage green finish
Partition frame	Powder-coated black steel rectangular tubing
Mobile pedestal cabinet body	18mm melamine-faced particleboard, light oak finish
Pedestal upper drawer front	18mm melamine-faced MDF, sage green finish
Drawer handles	Black recessed plastic pull handles
Pedestal casters	Black hard plastic swivel casters
Modesty panel under work surface	18mm melamine-faced particleboard, light oak finish
Edge banding	1mm thick PVC edge trim on all board components
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular cluster layout	120-degree angled three-station layout to form a connected work cluster
Seated privacy screening	1100mm high partitions block direct line of sight between seated adjacent users
Mobile pedestal storage	Each station includes a rolling two-drawer cabinet that fits fully under the work surface
Cable management access	Partition frame includes internal routing channels for power and data cables between stations
Swivel caster mobility	Four swivel casters per pedestal allow easy repositioning for floor cleaning or access
Configurable arrangement	Modular frame connectors allow rearrangement into linear or alternative cluster layouts
Ventilated upper partition	Slatted upper partition panels allow air circulation and partial visual transparency
Lockable drawer option	Recessed handle positions support standard core lock installation for secure storage
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Suitable for 3-person team zones to provide individual privacy while maintaining easy collaboration
Administrative work areas	Ideal for clerical, data entry or administrative staff with integrated under-desk storage
Call center operations	Partition height supports focused phone work without blocking overhead facility access
Small business office layouts	Compact footprint fits efficiently in small to medium office floor plans
Startup co-working spaces	Modular design allows flexible reconfiguration as team sizes change
Corporate department work zones	Uniform two-tone finish coordinates with standard commercial office interior schemes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk safety requirement	EN 527:2002
Office furniture stability standard	EN 1730:2000
Office furniture fire resistance	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office desk performance standard	ANSI/BIFMA X2021
Mobile storage unit standard	ANSI/BIFMA X2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk dimensional standard	GB/T 3326
Panel furniture safety standard	GB/T 3324
Office furniture mechanical stability	GB/T 10357.1
Formaldehyde emission limit	GB 18580

Standardized tender description text

This product must meet the following technical requirements:
1. Desk dimensional standard: GB/T 3326;
2. Panel furniture safety standard: GB/T 3324;
3. Office furniture mechanical stability: GB/T 10357.1;
4. Formaldehyde emission limit: GB 18580;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L3-4200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L3-4200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L3-4200Open Export Tool

Quick Actions

Post an RFQ

Product Description

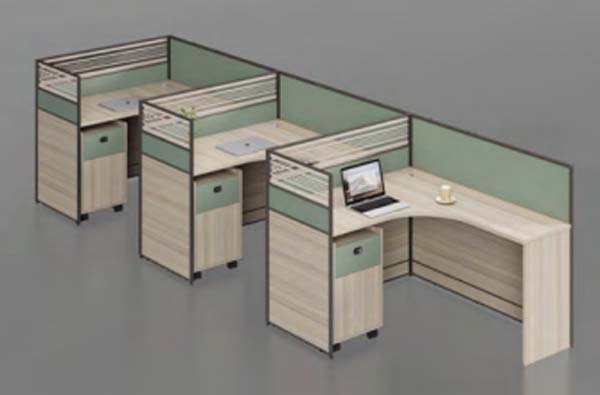

The CUB-L4200Three-Person L-Shaped Office Cubicle Workstation Set is an unbranded modular commercial work cluster designed to balance individual privacy and cross-team collaboration for multi-user office environments. Its visual identity features a coordinated two-tone finish pairing light oak work surfaces and storage components with sage green fabric-covered lower partition panels and matte black steel framing, creating a polished, professional look that aligns with standard commercial office interior schemes. The core cluster uses a 120-degree angled three-station layout, with 1100mm-high partitions that block direct line of sight between seated adjacent users, while slatted vent cutouts on upper partition panels maintain air circulation and partial visual transparency to avoid a closed-off feel.
Constructed for durable daily use, the set combines melamine-faced particleboard and MDF for work surfaces, modesty panels, and storage bodies, with fabric-wrapped MDF partition panels mounted on powder-coated black steel rectangular tubing frames. Primary structural components are built to a 40mm thickness aligned with load-bearing requirements, with 5mm operating clearance for all hardware and moving parts to support smooth function. Each work surface supports 100kg of static load and withstands 2000 abrasion cycles for long-term wear resistance; partition panels carry a 20 sound transmission class rating to reduce cross-station noise distraction. Each station includes a matching mobile pedestal built from 18mm melamine-faced board, with a sage green upper drawer front, black recessed plastic pull handles, and four black hard plastic swivel casters rated for 40kg rolling load per wheel. Each pedestal drawer supports 25kg of static load, and the unit fits fully under the adjacent work surface to save floor space; casters enable easy repositioning for floor cleaning or access adjustments.
Functional design details include integrated internal cable routing channels within partition frames to run power and data cords between stations without visible clutter, and modular frame connectors that support rearrangement into linear or alternate cluster layouts as space needs evolve. The set is well suited for open-plan office 3-person team zones, administrative work areas for clerical and data entry staff, call center operations, small to medium business office layouts, flexible startup co-working spaces, and standardized corporate department work zones. For procurement planning, note that each workstation cluster weighs 280kg when fully assembled, ships in 2 cartons with a total packaged gross weight of 120kg and 0.8m³ packaging volume, and requires 40 minutes of assembly time per set.

Three-Person L-Shaped Office Cubicle Workstation Set Specifications
