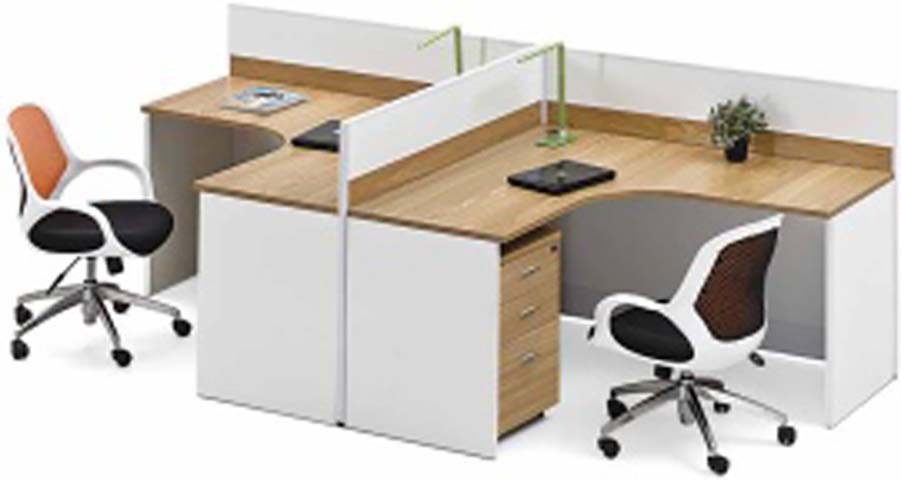

2-Person Curved Corner Office Workstation Cubicle with Dividers and Drawer Pedestals (model WS-2P-CRV-1800-OAK-WHT) is listed under L-Shaped Office Desk, with overall dimensions of 3600 × 1800 × 1200 mm and main material of Particle‑board (PB). Load capacity: 136 kg. Certifications: low,partition,divider,L-shaped,curved,worktop,under-desk,storage,2-seat,configuration. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 3600 x 1800 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Work surface thickness | 25 mm | |
| Per-user L-worktop arm length | 1800 mm | |
| Work surface depth | 750 mm | |
| Knee clearance height under desk | 650 mm | |
| Knee clearance width at curved cutout | 800 mm | |
| Privacy screen height above worktop | 450 mm | |
| Privacy screen thickness | 30 mm | |
| Edge band thickness | 2 mm | |
| Drawer pedestal dimensions | 400 x 500 x 650 mm | |
| Support frame wall thickness | 1.5 mm | |
| Modesty panel thickness | 18 mm | |
| Cable grommet diameter | 60 mm | |
| Leveling foot adjustment range | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per work surface static load capacity | 136 kg | |
|---|---|---|
| Unit total net weight | 220 kg | |
| Recommended user weight capacity per station | 150 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | 25mm E1 grade engineered wood with thermally fused light oak laminate, 2mm PVC edge banding | |
|---|---|---|
| Privacy dividers | 30mm thick panel with fabric-upholstered pinnable surface, white laminate upper panel, metal connecting frames | |
| Side modesty panels and cabinetry | 18mm E1 grade engineered wood with matte white thermally fused laminate finish | |
| Drawer pedestals | 18mm engineered wood with light oak laminate front faces, full extension ball bearing steel slides, lockable top drawer, dual-wheel nylon casters | |
| Support framework | 1.5mm thick powder-coated rectangular steel tubing with anti-corrosion coating, adjustable nylon leveling feet | |
| Cable management components | ABS plastic cable grommets, under-desk steel cable tray with 20kg load capacity |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy separation | Low central dividers provide seated visual separation between two adjacent users without blocking overhead light | |
|---|---|---|
| Drawer storage | Two integrated 3-drawer mobile pedestals provide lockable personal filing and supply storage per user, rolling on casters for repositioning | |
| Cable management | Surface cable grommets and under-desk tray route power and data cables from worktop devices to floor outlets, reducing cord clutter | |
| Floor leveling | Adjustable feet at all frame contact points compensate for uneven floor surfaces to keep worktops stable and level |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office layouts | Two separated work zones for staff in open offices, balancing collaboration and personal focus | |
|---|---|---|
| Small business team areas | Compact corner footprint fits tight office floor plans while providing two dedicated workstations with storage |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and safety adjustments, applicable to work surface height | |
| EN 13986:2004 | Wood-based panels for construction use, applicable to engineered wood components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, applicable to load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Standard for storage units, applicable to drawer pedestal performance and cycle testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate worktops and cabinet components | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks and workstations, applicable to structural stability and load rating | |
| GB 18580-2017 | Formaldehyde emission limits for engineered wood panels, applicable to all wood-based components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate worktops and cabinet components; 2. GB/T 3327-2017: Performance requirements for office desks and workstations, applicable to structural stability and load rating; 3. GB 18580-2017: Formaldehyde emission limits for engineered wood panels, applicable to all wood-based components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
