Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

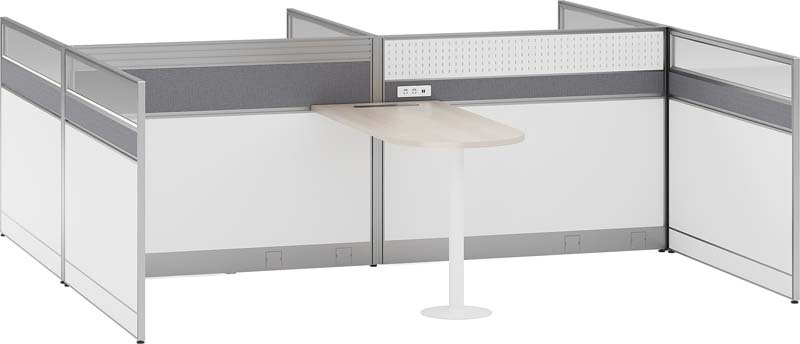

| Overall installed footprint | 3600 x 2400 x 1600 mm | |
|---|---|---|
| Partition panel height | 1600 mm | |
| Partition panel module width | 900 mm | |
| Partition system thickness | 32 mm | |
| Glazed upper section height | 300 mm | |
| Fabric tackable band height | 250 mm | |
| Solid lower panel height | 1050 mm | |
| Attached tabletop diameter | 900 mm | |
| Tabletop thickness | 25 mm | |
| Finished table height | 750 mm | |
| Under-table knee clearance height | 690 mm | |
| Round disc base diameter | 450 mm | |
| Leveling foot diameter | 30 mm | |
| Power/data faceplate size | 180 x 80 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| System static load capacity | 300 kg | |
|---|---|---|
| Round table vertical load | 80 kg | |
| Seating capacity at round table | 3 persons | |
| Workstations enclosed by shown partition run | 3 work zones | |
| Fabric tackable pin zone area | 0.225 m2 per 900 mm panel | |
| Suggested live load per partition panel | 20 kg | |
| Product net weight | 95 kg | |
| Warranty duration | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Partition frame | Anodized or powder-coated aluminum extrusions with vertical posts and horizontal rails | |
|---|---|---|
| Lower privacy panel | White laminate-faced composite board with gray perimeter trim | |
| Middle tackable band | Gray woven fabric over tackable core for pinning notices | |
| Upper glazing | Translucent or clear tempered safety glass set into aluminum rails | |
| Tabletop | Light gray or off-white 25 mm laminate/MFC rounded surface | |
| Table edge | Matching laminate or PVC edge band with rounded outer profile | |
| Pedestal column | White painted steel central column attached to the partition junction | |
| Floor base | White circular steel disc base with a smooth painted finish | |
| Leveling feet | Black nylon or rubber-tipped adjustable metal glides at partition bases | |
| Raceway | Gray aluminum or steel lower channel with removable inspection covers | |
| Power/data plate | White plastic faceplate containing socket openings and data ports | |
| Panel connectors | Concealed steel or die-cast corner connectors between modular panels |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular corner assembly | Panels connect at straight and 90-degree posts to form enclosed work bays | |
|---|---|---|
| Integrated meeting surface | The 900 mm rounded table bridges two partition runs for quick discussions | |
| Central pedestal support | A round column and disc floor base carry the table while preserving knee space | |
| Power and data access | The faceplate places socket and data openings at 750 mm working height | |
| Horizontal cable routing | Cables route through the lower gray raceway and removable cover plates | |
| Separate power/data segregation suggestion | Use isolated conduits inside the raceway for power and low-voltage data cables | |
| Leveling on uneven floors | 30 mm glides at each panel foot adjust contact height and stabilize the run | |
| Tackable display function | The 250 mm fabric band accepts pinned notes across each 900 mm panel | |
| Privacy zoning | The 1050 mm solid lower panel blocks seated sightlines while the 300 mm glazing admits light | |
| Reconfiguration | Posts, rails and panels can be unbolted and re-laid into L, X or linear bays | |
| Floor anchoring option | The base rail can be screwed to the floor for high-traffic or seismic installations | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office focus zones | Use the partition run to separate individual work seats while retaining visual light through glazed tops | |
|---|---|---|
| Project team meeting point | Place 3 stools or chairs around the attached table for short reviews beside workstations | |
| Call-center clusters | Repeat the angular modules to create compact teams with accessible power and data at each junction | |
| Agency and admin work areas | Combine fabric pinning, privacy screening and meeting space without building permanent walls | |
| Training or consultation corner | Use the rounded table for laptop placement, forms or one-to-one discussions | |
| Hybrid workplace neighborhoods | Pair the shown module with desks, task chairs and overhead storage for a complete work neighborhood |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
