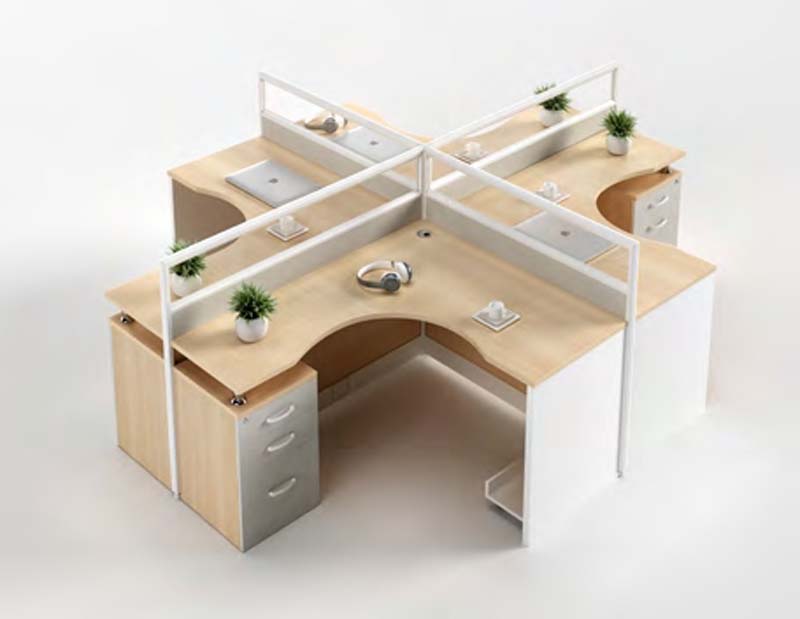

Product supplier4-Person Cross-Shaped Modular Office Cubicle Workstation with Mobile Pedestals, E1 grade particleboard, 25mm thick
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2840 × 2840 × 1100 mm | |
|---|---|---|
| Overall footprint | 2840 x 2840 x 1100 mm | |
| Privacy divider height above work surface | 350 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit assembled weight | 180 kg | |
|---|---|---|
| Per work surface static load capacity | 120 kg | |
| Recommended maximum user weight per station | 120 kg | |
| Surface scratch resistance rating | 2000 cycles | |
| Surface heat resistance | 80 °C | |
| Drawer slide cycle rating | 50000 cycles | |
| Design capacity | 4 seated employees | |
| Manufacturer warranty period | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | E1 grade particleboard, 25mm thick | |
|---|---|---|
| Work surface finish | Light oak effect melamine laminate, 0.6mm thick | |
| Edge banding | 2mm thick white PVC impact-resistant edging | |
| Structural frame | 1.2mm thick white powder-coated steel tubular frame | |
| Privacy divider panels | 40mm thick melamine-faced composite panels | |
| Mobile pedestal cabinet bodies | 18mm thick melamine-faced particleboard | |
| Mobile pedestal drawer fronts | 0.8mm thick brushed steel panels | |
| Hardware components | Zinc alloy drawer locks, steel ball-bearing slides | |
| Feet glides | Adjustable nylon leveling glides | |
| Cable grommets | ABS plastic cable management grommets | |
| Pedestal casters | 50mm diameter nylon swivel casters | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Circular desk grommets route power/data cables from surface to under-desk tray | |
|---|---|---|
| Pedestal mobility | Lockable 3-drawer pedestals roll on swivel casters for flexible under-desk positioning | |
| Modular assembly | CKD bolt-together construction allows reconfiguration or addition of adjacent units | |
| Visual privacy | Cross-mounted low dividers separate adjacent work positions to reduce peripheral distraction | |
| Knee access | Curved concave cutout at each station inner corner provides unrestricted leg room for seated users | |
| Adjustable leveling | Base glides adjust by 15mm to compensate for uneven office flooring | |
| Drawer locking | Central pedestal lock secures all three drawers with one key | |
| Under-desk CPU clearance | Open space at outer station edges accommodates floor-placed CPU towers or printer stands | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan corporate offices | Creates 4 dedicated work positions for teams needing balanced privacy and collaboration | |
|---|---|---|
| Startup and co-working spaces | Modular design supports flexible seating arrangements for rotating staff | |
| Call center and administrative departments | Integrated storage and cable management suits daily computer-based work | |
| Government and public service offices | Uniform layout creates standardized workstations for clerical staff | |
| Staff training rooms and project zones | Fixed work surfaces support temporary project teams and equipment setup | |
| Small business open offices | Compact 2.84m square footprint maximizes seating capacity in limited space |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables dimensional and safety requirements, applicable to work surface design | |
|---|---|---|
| EN 15372:2016 | Office furniture strength/durability/stability requirements for worktables | |
| EN 1335-1:2020 | Office chair ergonomic dimension compatibility reference for knee clearance zones |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and cabinet components | |
|---|---|---|
| GB/T 5237.1-2008 | Aluminum/steel alloy building profile standards, applicable to frame structural components | |
| GB/T 17657-2013 | Test methods for surface properties of wood-based panels, applicable to melamine finishes | |
| GB 18584-2001 | Formaldehyde emission limit for interior wooden furniture, applicable to E1-grade panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet components; 2. GB/T 5237.1-2008: Aluminum/steel alloy building profile standards, applicable to frame structural components; 3. GB/T 17657-2013: Test methods for surface properties of wood-based panels, applicable to melamine finishes; 4. GB 18584-2001: Formaldehyde emission limit for interior wooden furniture, applicable to E1-grade panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
