PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed worktop static load	80 kg
Pedestal drawer static load	15 kg per drawer
Cabinet shelf static load	20 kg per shelf
Single-user capacity	1 person
Partition privacy height above floor	1200 mm
net furniture weight	75 kg
Recommended floor loading	2.0 kPa
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop and cabinet panels	Melamine-faced particleboard with oak-grain horizontal surfaces and white vertical panels
Edge treatment	PVC edge banding on exposed worktop and cabinet edges
Partition screen frame	Anodized aluminum posts and rails with silver finish
Lower privacy panels	Board-backed upholstered or laminated panels in neutral gray-beige finish
Upper screen infill	Louvered translucent or fabric-faced panels with horizontal ventilation slots
Storage cabinet hardware	Steel drawer runners, pull handles and one visible drawer lock

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped work surface	Provides a 90-degree corner layout with a curved front edge for one seated user and separate task zones
Privacy partition system	Two-sided screen panels separate the user from adjacent work areas while retaining overhead visibility
Integrated right-side storage	Combines a lockable drawer, lower cabinet door and open curved shelf for files, personal items and reference materials
Knee-well access	Concave front cutout allows the shown wheeled task chair to pull fully under the work surface

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for one employee in a call center, administration, finance or general clerical cluster where seated privacy is required
Shared administrative workspace	Suitable for laptop, paperwork, books and small personal storage in a fixed individual workstation

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L1400-OAK-WHT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L1400-OAK-WHT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L1400-OAK-WHTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

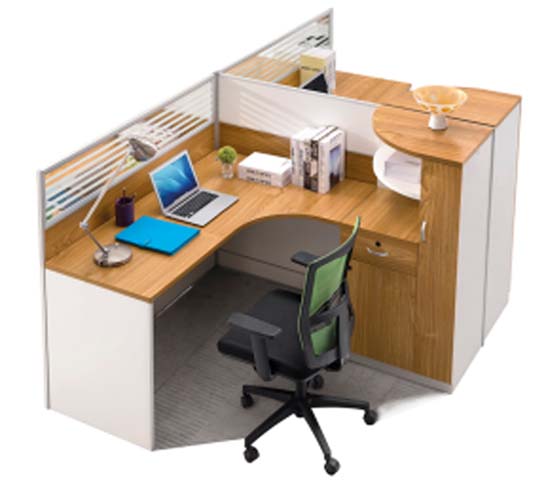

The L-Shaped Panel Office Workstation is a structured single-user desk solution designed for corner placement in active work environments. Its 90-degree layout separates daily tasks into distinct zones, while the curved front edge softens the workstation profile and supports a comfortable seated approach. A concave knee-well cutout allows a wheeled task chair to move fully beneath the worktop, helping maintain a compact footprint when not in use. Visual separation is provided by a two-sided partition system that rises to privacy height while preserving overhead visibility. Anodized aluminum posts and rails in a silver finish frame the screens, with neutral gray-beige board-backed upholstered or laminated lower panels. The upper sections use louvered translucent or fabric-faced infill with horizontal ventilation slots, balancing privacy, light transmission, and a lighter spatial appearance. Oak-grain horizontal surfaces pair with white vertical panels for a contemporary office finish, while PVC edge banding protects exposed worktop and cabinet edges. Construction uses melamine-faced particleboard for the worktop and storage cabinets, with steel support hardware. The finished top thickness is 50 mm, and the main support section is 80 mm with 2 mm metal wall thickness. Each main seating position provides 680 mm high and 900 mm wide effective knee clearance. The worktop is rated for a distributed static load of 80 kg, supporting typical office equipment and paperwork rather than unusually heavy use. Cable management is integrated into the desk through an 80 mm diameter cable opening and a cable tray with 120 mm depth. Storage is positioned on the right side and combines a lockable drawer, a lower cabinet door, and an open curved shelf suitable for files, personal items, and reference materials. Drawer static capacity is 15 kg per drawer, and cabinet shelf capacity is 20 kg per shelf. Steel runners, pull handles, and one visible drawer lock complete the practical storage specification. This workstation is well suited to open-plan offices, call centers, administration and finance teams, and general clerical clusters where one employee needs a fixed individual position with seated privacy. It is also appropriate for shared administrative settings involving laptop work, paperwork, books, and limited personal storage. Procurement planning should account for a 75 kg net furniture weight, recommended floor loading of 2.0 kPa, and assembly time of 40 minutes per set. Packaging records differ in format: one reference lists one set in two cartons, while dimensional and gross-weight logistics reference four cartons and 180 kg packaged gross weight, so buyers should confirm shipment configuration, carton count, and access for delivery before ordering.

L-Shaped Panel Office Workstation with Partition Screens and Storage Cabinet Specifications
