Automatic mm / inch conversion · Core engineering specifications

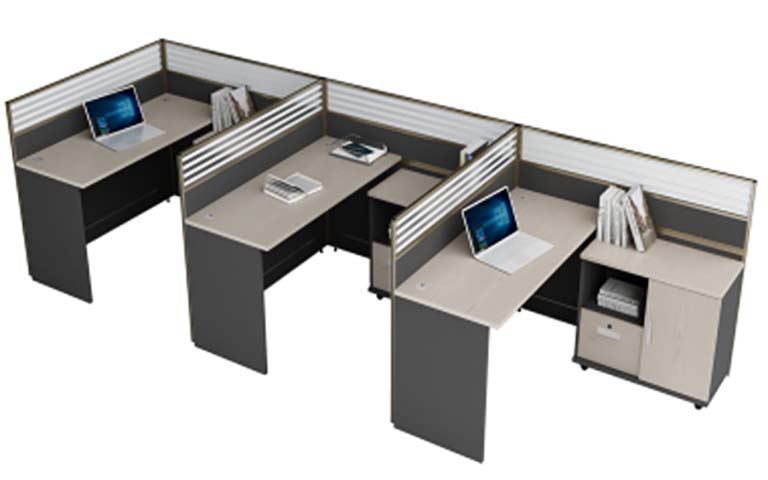

| Overall assembled cluster dimensions | 4910 x 1640 x 1600 mm | |
|---|---|---|
| Individual L-shaped workstation footprint | 1400 x 1400 mm | |
| Desktop work surface height | 750 mm | |
| Work surface main section depth | 700 mm | |
| Side return work surface width | 600 mm | |
| Desktop panel thickness | 25 mm | |
| Total partition screen height | 1200 mm | |
| Frosted upper privacy strip height | 400 mm | |
| Partition panel thickness | 83 mm | |
| Knee clearance height under desk | 650 mm | |
| Mobile storage pedestal dimensions | 400 x 500 x 600 mm | |
| End integrated storage cabinet dimensions | 800 x 450 x 700 mm | |
| Cable grommet diameter | 60 mm | |
| Edge banding thickness (work surfaces) | 2.0 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Total cluster static load capacity | 270 kg | |
|---|---|---|
| Caster rolling load rating per pedestal | 100 kg | |
| Seated user capacity per cluster | 3 people | |
| Surface abrasion resistance rating | 2000 cycles | |
| Melamine board density | 0.74 g/cm³ | |
| Board formaldehyde emission level | 0.018 mg/m³ | |
| Product warranty period | 10 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Work surface panels | E1 grade melamine-faced particleboard, 25 mm thick, gray wood grain finish | |
|---|---|---|
| Desk side modesty panels | 18 mm thick melamine-faced particleboard, dark gray finish | |
| Partition panel frames | Powder-coated aluminum alloy, metallic trim finish | |
| Upper partition sections | Semi-translucent frosted acrylic panels with horizontal slat detailing | |
| Lower partition sections | Fabric-wrapped or melamine hard panel, dark gray finish | |
| Storage cabinet and pedestal bodies | 18 mm thick melamine-faced particleboard, two-tone gray/light wood finish | |
| Drawer slides and hardware | Cold-rolled steel with zinc plating, three-quarter extension slides | |
| Pedestal and cabinet casters | Hard nylon swivel casters, 50 mm diameter, two lockable per unit | |
| Edge banding | Color-matched PVC edge banding, 2.0 mm on top edges, 1.5 mm on vertical edges | |
| Cable management grommets | Black ABS plastic flip-top grommets, 60 mm diameter | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Partition privacy function | 1200 mm high dividers with frosted upper strips block direct line of sight between seated users while allowing overhead light transmission | |
|---|---|---|
| Cable management function | Integrated 60 mm ABS grommets on each work surface route power, data and monitor cables below desk to reduce surface clutter | |
| Mobile storage function | Two under-desk rolling pedestals with lockable drawers provide movable file and supply storage, can be repositioned under left or right desk section | |
| End cabinet storage function | Fixed end storage unit includes top open book shelf, middle lockable drawer, and lower closed cabinet door for shared or end-user supplies | |
| Modular configuration function | Panel and desk components are field-reconfigurable to extend cluster length or adjust station orientation to fit office floor plans | |
| Drawer locking function | Keyed locks on all storage drawers and cabinet doors secure confidential documents and personal items | |
| Pedestal caster lock function | Two lockable casters per mobile pedestal prevent unintended movement when positioned under desk | |
| Work surface orientation | Each station uses 90-degree L-shaped layout to separate main computer work zone from side document/meeting zone | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Open-plan corporate office zones | Suits 3 staff teams in administration, finance or customer service roles requiring partitioned privacy in shared space | |
|---|---|---|
| Small business startup offices | Provides dedicated work surfaces and private storage for growing teams without full office buildout | |
| Call center and shared service centers | Seated-height partitions reduce visual distraction between adjacent agents during phone and computer work | |
| Government and public sector work areas | Durable commercial construction meets long-term heavy-use requirements for public institution offices | |
| Co-working space dedicated team zones | Fixed modular cluster provides permanent assigned desks for member teams within flexible co-working facilities | |
| Back-office administrative departments | Integrated mobile pedestals and end cabinet support document storage for HR, accounting and operations teams |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for commercial office desk surfaces | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture, safety and durability requirements for pedestals and cabinets | |
| EN 1022:2019 | Furniture seating, stability requirements for companion office chair use at workstations | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction, formaldehyde emission and structural performance requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, covers static load, durability and stability testing for office work surfaces | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Standard for storage units, covers drawer cycle, load and lock performance for pedestals and cabinets |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to work surface and storage cabinet structural quality and dimension tolerances | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for furniture desks and tables, applies to static load, stability and surface durability testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, requires E1 grade emission for interior office furniture | |
| GB/T 4897-2015 | Specification for particleboard used in furniture, applies to structural worktop and panel board performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to work surface and storage cabinet structural quality and dimension tolerances; 2. GB/T 3327-2017: Performance test methods for furniture desks and tables, applies to static load, stability and surface durability testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requires E1 grade emission for interior office furniture; 4. GB/T 4897-2015: Specification for particleboard used in furniture, applies to structural worktop and panel board performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
