PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 2800 × 1200 mm
Overall cluster dimensions	3200 x 2800 x 1200 mm
Work surface height from floor	750 mm
Per-seat L-shaped work surface size	1400 x 1600 mm
Seated knee clearance height under desk	680 mm
Privacy partition total height	1200 mm
Privacy partition panel thickness	50 mm
Work surface thickness	25 mm
Side support/storage panel thickness	25 mm
Cable grommet diameter	60 mm
Integrated mobile storage unit dimensions	400 x 400 x 560 mm
Storage caster diameter	50 mm
Knee clearance depth per seat	600 mm
Under-desk legroom width per seat	800 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per work surface static load capacity	100 kg
Total cluster static weight capacity	400 kg
Work surface abrasion resistance	2000 cycles
Formaldehyde emission level	0.037 mg/m³
Product net weight	110 kg
Recommended user capacity	4 persons
Caster load rating per wheel	40 kg
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface substrate	E0 grade melamine-faced particleboard
Work surface edge treatment	2mm PVC edge banding
Privacy divider frame	Anodized aluminum alloy profile
Lower privacy divider panel	Fabric-wrapped fiberboard
Upper privacy divider panel	Translucent polycarbonate slats
Storage cabinet/drawer fronts	Melamine-faced particleboard matching worktop finish
Vertical modesty panels	16mm melamine-faced particleboard, dark gray finish
Hardware components	Zinc-plated steel connectors, lock cores for drawers
Storage unit casters	Black nylon swivel casters, two with brake function
Cable management components	ABS plastic round cable grommets
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workspace configuration	Four individual L-shaped work zones separated by cross privacy dividers
Privacy screen function	Blocks direct line of sight between adjacent seated users, allows overhead light transmission
Integrated storage per seat	One lockable drawer, one closed double-door cabinet, one open upper cubby shelf
Cable management	Dual desk grommets per work surface for routing power/data cables to under-desk channels
Storage mobility	Mobile storage units fitted with swivel casters for repositioning under work surfaces
Modular assembly	Knock-down panel construction with shared central divider supports
Surface performance	Stain-resistant, water-resistant, scratch-resistant melamine finish
Drawer security	Keyed lock on drawer to secure personal office items
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff work areas	Provides divided individual work zones for teams of 4 employees
Small business startup offices	All-in-one workstation with storage reduces separate furniture purchases
Coworking space dedicated team pods	Cross layout creates private team work zones in shared spaces
Corporate administrative department floors	Standardized cubicle configuration for clerical and admin staff
Call center operation floors	High density seating with privacy dividers for focused phone work
Government agency service office areas	Durable construction suitable for high-traffic public service environments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables, safety and strength requirements for commercial workstations
EN 1335-1:2020	Office furniture, office work chair dimensional coordination for desk clearance
EN 71-3:2019	Safety of furniture, migration of harmful elements for surface materials

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for strength, durability and structural performance
ANSI/BIFMA X5.9-2019	Storage units standard for cabinet and drawer load and durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel desk structural safety
GB 18584-2001	Formaldehyde emission limit for interior decoration materials, wooden furniture
GB/T 35607-2017	Green product assessment standard for office furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel desk structural safety;
2. GB 18584-2001: Formaldehyde emission limit for interior decoration materials, wooden furniture;
3. GB/T 35607-2017: Green product assessment standard for office furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-4C-LW-322812

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-4C-LW-322812

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-4C-LW-322812Open Export Tool

Quick Actions

Post an RFQ

Product Description

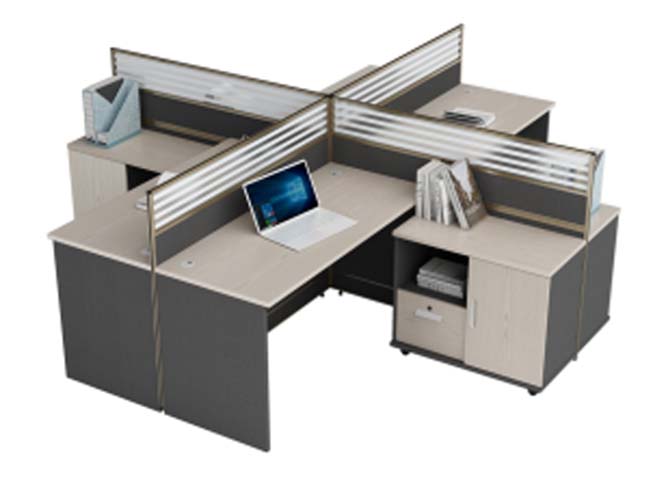

The 4-Person Cross-Shaped Office Cubicle Workstation with Integrated Storage is a compact, team-focused workspace solution delivered unbranded under model CUB-4C-LW-322812, designed to deliver balanced privacy and collaborative accessibility for groups of four. Its core layout arranges four equal L-shaped individual work zones around a central cross-shaped divider structure, creating a symmetrical cluster with a total footprint sized to fit mid-sized open floor areas. Privacy dividers rise to seated eye level, constructed with an anodized aluminum alloy frame that supports lower fabric-wrapped fiberboard panels to block direct line of sight between adjacent seated users, and upper translucent polycarbonate slats that allow natural and overhead light to filter across the entire cluster, eliminating closed-in, dim work conditions.\nWork surfaces are crafted from E0 grade melamine-faced particleboard with a 2mm PVC edge band, finished to resist stains, water exposure, and scratches from daily office use. Each L-shaped work zone is paired with dedicated integrated storage: one lockable drawer, one closed double-door cabinet, and one open upper cubby shelf, all finished to match the worktop. Storage units mount on black nylon swivel casters, two per unit fitted with brakes, so units can be repositioned smoothly under work surfaces or pulled out for easy access, then locked in place. Cable management is built directly into each station, with dual desk grommets per work surface that route power and data cables to concealed under-desk channels to reduce desktop clutter. The knock-down modular construction uses zinc-plated steel connectors and shared central divider supports for efficient assembly, with vertical dark gray melamine modesty panels added to shield seated leg areas from view.\nThis workstation is suited for a wide range of commercial spaces: it creates defined individual zones in open-plan office staff areas, serves as an all-in-one furnishing solution for small startup offices to reduce separate furniture purchases, forms dedicated private team pods in coworking spaces, delivers standardized, consistent setups for corporate administrative floors, supports focused phone work with its privacy dividers on call center floors, and stands up to high-traffic use in government agency service office areas. For procurement teams, key considerations include noting the unit ships across two cartons, requires on-site assembly, supports a static load per work surface suited for standard office equipment, features lockable storage for securing personal or work materials, and uses low-formaldehyde-emission materials to support indoor air quality goals. The caster load rating supports the weight of standard stored office supplies, and the modular design allows for consistent deployment across large floor plans without custom modification.

4-Person Cross-Shaped Office Cubicle Workstation with Integrated Storage Specifications
