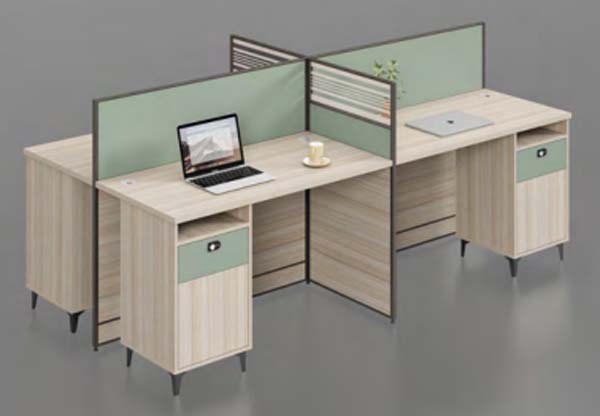

Product supplier4-Person L-Shaped Cross-Partition Office Cubicle Workstation Cluster, 25mm melamine-faced MFC board, PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2820 × 2820 × 1100 mm | |
|---|---|---|
| Overall footprint | 2820 x 2820 x 1100 mm | |
| Desk work surface height | 750 mm | |
| Single L-seat work surface size | 1400 x 1400 mm | |
| Privacy partition height | 1200 mm | |
| Privacy partition panel thickness | 100 mm | |
| Individual knee clearance width | 800 mm | |
| Under-desk knee clearance height | 650 mm | |
| Integrated storage pedestal dimensions | 400 x 500 x 650 mm | |
| Work surface board thickness | 25 mm | |
| Tapered support leg height | 150 mm | |
| Slatted vent section height | 300 mm | |
| Cable grommet diameter | 80 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit net weight | 260 kg | |
|---|---|---|
| Per-seat work surface static load | 100 kg | |
| Per-storage drawer static load | 25 kg | |
| Work surface abrasion resistance | 2000 cycles | |
| Recommended user capacity | 4 seated staff | |
| Partition frame lateral stability load | 50 kg | |
| Product warranty period | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm melamine-faced MFC board, PVC edge banding | |
|---|---|---|
| Privacy divider upper panel | Fabric-upholstered particle board, dark metal frame | |
| Privacy divider slatted section | Horizontal slatted ventilated panel, same sage green finish | |
| Storage pedestal body | 18mm melamine-faced engineered wood, light oak grain finish | |
| Storage drawer front | 18mm melamine-faced board, sage green accent finish | |
| Support legs | 1.2mm thick powder-coated tapered steel, matte black finish | |
| Desk modesty panel | 16mm melamine-faced engineered wood, light oak finish | |
| Hardware connectors | Zinc-plated steel cam locks and screws | |
| Edge banding | 2mm thick ABS impact-resistant edging | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Individual seated workstations | Four separate L-shaped work positions separated by cross dividers | |
|---|---|---|
| Integrated per-seat storage | 1 upper drawer and 1 lower closed cabinet per position at outer desk corner | |
| Cable management | Round wire grommet at each work position | |
| Slatted partition ventilation | Horizontal slatted lower section on dividers at seated eye level | |
| Knock-down modular assembly | Pre-drilled components with cam lock connectors | |
| Elevated base clearance | 150mm clearance under all storage and desk units | |
| Fixed partition privacy | 1200mm high solid upper divider panels | |
| Color-coordinated design | Light oak work surfaces with sage green drawer and divider accents | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff areas | 4-person cluster for administrative, customer service or operations teams | |
|---|---|---|
| Small business office spaces | Compact footprint fits startup or branch office layouts requiring 4 work positions | |
| Shared co-working spaces | Modular design allows fixed dedicated desks for members | |
| Corporate departmental zones | Suitable for finance, HR or back-office teams requiring separate work and storage | |
| Call center work floors | Partition height limits visual distraction between adjacent agents | |
| Matching office chair recommendation | Ergonomic mid-back office chairs with 520 mm adjustable seat height |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for work surfaces | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic dimensional requirements for seated work positions | |
| EN 13722:2004 | Office furniture storage units, strength and durability requirements for pedestals |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer and cabinet load capacity and durability | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and environmental impact |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and storage components | |
|---|---|---|
| GB/T 3326-2016 | Desk, chair and stool dimensional standards for office furniture ergonomic dimensions | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels used in indoor furniture | |
| GB/T 4897.3-2003 | Particleboard specifications for furniture-grade structural use in work surfaces |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and storage components; 2. GB/T 3326-2016: Desk, chair and stool dimensional standards for office furniture ergonomic dimensions; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels used in indoor furniture; 4. GB/T 4897.3-2003: Particleboard specifications for furniture-grade structural use in work surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
