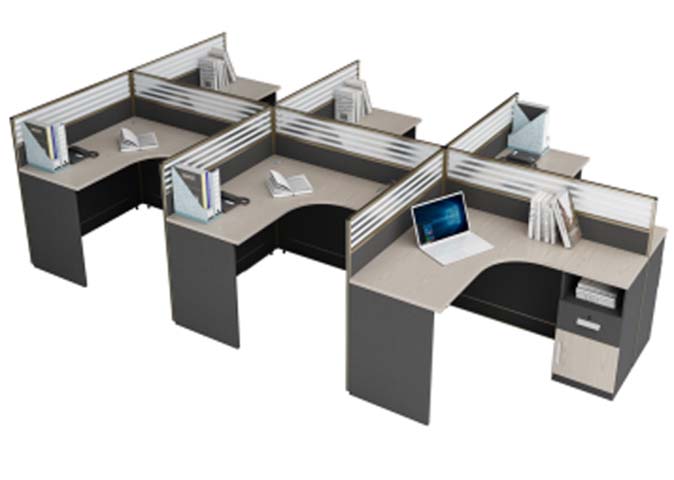

6-Person L-Shaped Cluster Office Cubicle Workstation with Partitions and Storage Pedestals (model WS-CUB-6P-L1200) is listed under L-Shaped Office Desk. Dimensions: 4800 × 2400 × 1200 mm. Materials: 25mm thick E1 grade particle board with light oak melamine finish, PVC edge banding. Load capacity: 100 kg. Product Features: Modular,furniture,L-shaped,workstations,6-seat,cluster,privacy,partition,dividers,integrated,storage,pedestals. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | JUNPIN | Model | WS-CUB-6P-L1200 |
| Overall dimensions (W × D × H) | 4800 × 2400 × 1200 mm | Primary Component Thickness | 40 mm according to load-bearing role |
| Hardware / Moving-part Clearance | 5 mm operating clearance | Total cluster net weight | 390 kg |
| Individual desktop static load capacity | 100 kg | Per-seat drawer static load rating | 25 kg |
| Partition impact resistance rating | 20 kg | Recommended maximum user count | 6 |
| Desktop surface abrasion resistance cycles | 2000 | Product standard warranty period | 3 years |
| Reference Static Load | 150 kg depending on category | Moving-part Durability Reference | Acceptance target 50000 cycles |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years | Desktop work surface | 25mm thick E1 grade particle board with light oak melamine finish, PVC edge banding |
| Support cabinet and modesty panels | 18mm thick E1 grade particle board with dark gray melamine finish, matching edge banding | Upper partition section | 30mm thick MDF core wrapped in dark gray fabric, horizontal frosted acrylic inlay strips |
| Partition frame trim | 1.2mm thick extruded aluminum profile with dark bronze anodized finish | Storage pedestal door and drawer fronts | 16mm thick particle board with dual-tone light/dark gray melamine finish |
| Drawer slide hardware | Cold-rolled steel three-section full-extension ball-bearing slides, zinc-plated finish | Adjustable floor glides | Nylon base with steel threaded stem, 15mm height adjustment range |
| Desk cable management grommets | ABS plastic black circular grommets with brush inserts, 80mm diameter | Pedestal lock hardware | Zinc alloy keyed cam lock with 2 keys per lock |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | Reference Finish / Color Count | Recommended 6finish options |
| Individual workspace privacy separation | 1200mm high partitions block direct line of sight between adjacent seated users | Desktop cable routing | 80mm brush grommets pass power and data cables from desktop to under-desk area |
| Per-seat under-desk storage | 1 lockable utility drawer and 1 enclosed cabinet door for personal office supply storage | Floor leveling adjustment | 15mm height adjustment on nylon glides compensates for uneven office flooring |
| Modular cluster reconfiguration | Aluminum connection joints allow rearrangement of partitions and desks to alternate layout sizes | Rear elevated side shelf | Fixed raised shelf behind each worktop holds books, files or small office items as seen in product render |
| Curved ergonomic work edge | Concave rounded front edge reduces forearm pressure during extended seated computer work | Frosted acrylic partition inlays | Translucent strips allow overhead light transmission while maintaining visual privacy between seats |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Packaging Volume | 0.8 m³/set |
| Reference Packaged Gross Weight | 120 kg/set | Open plan corporate offices | Creates defined independent workspaces while maintaining collaborative access for teams of 6 staff |
| Call center and shared service work areas | Partitions reduce visual distraction between adjacent agents during extended shift work | Startup and co-working office spaces | Modular design allows flexible reconfiguration as team sizes and layouts change |
| Government and administrative office areas | Durable commercial construction meets high-traffic daily use requirements | Educational institution staff offices | Integrated storage supports paperwork and document organization for administrative staff |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4800 × 2400 × 1200 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total cluster net weight | 390 kg | |
|---|---|---|
| Individual desktop static load capacity | 100 kg | |
| Per-seat drawer static load rating | 25 kg | |
| Partition impact resistance rating | 20 kg | |
| Recommended maximum user count | 6 | |
| Desktop surface abrasion resistance cycles | 2000 | |
| Product standard warranty period | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop work surface | 25mm thick E1 grade particle board with light oak melamine finish, PVC edge banding | |
|---|---|---|
| Support cabinet and modesty panels | 18mm thick E1 grade particle board with dark gray melamine finish, matching edge banding | |
| Upper partition section | 30mm thick MDF core wrapped in dark gray fabric, horizontal frosted acrylic inlay strips | |
| Partition frame trim | 1.2mm thick extruded aluminum profile with dark bronze anodized finish | |
| Storage pedestal door and drawer fronts | 16mm thick particle board with dual-tone light/dark gray melamine finish | |
| Drawer slide hardware | Cold-rolled steel three-section full-extension ball-bearing slides, zinc-plated finish | |
| Adjustable floor glides | Nylon base with steel threaded stem, 15mm height adjustment range | |
| Desk cable management grommets | ABS plastic black circular grommets with brush inserts, 80mm diameter | |
| Pedestal lock hardware | Zinc alloy keyed cam lock with 2 keys per lock | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Individual workspace privacy separation | 1200mm high partitions block direct line of sight between adjacent seated users | |
|---|---|---|
| Desktop cable routing | 80mm brush grommets pass power and data cables from desktop to under-desk area | |
| Per-seat under-desk storage | 1 lockable utility drawer and 1 enclosed cabinet door for personal office supply storage | |
| Floor leveling adjustment | 15mm height adjustment on nylon glides compensates for uneven office flooring | |
| Modular cluster reconfiguration | Aluminum connection joints allow rearrangement of partitions and desks to alternate layout sizes | |
| Rear elevated side shelf | Fixed raised shelf behind each worktop holds books, files or small office items as seen in product render | |
| Curved ergonomic work edge | Concave rounded front edge reduces forearm pressure during extended seated computer work | |
| Frosted acrylic partition inlays | Translucent strips allow overhead light transmission while maintaining visual privacy between seats | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan corporate offices | Creates defined independent workspaces while maintaining collaborative access for teams of 6 staff | |
|---|---|---|
| Call center and shared service work areas | Partitions reduce visual distraction between adjacent agents during extended shift work | |
| Startup and co-working office spaces | Modular design allows flexible reconfiguration as team sizes and layouts change | |
| Government and administrative office areas | Durable commercial construction meets high-traffic daily use requirements | |
| Educational institution staff offices | Integrated storage supports paperwork and document organization for administrative staff |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements for work surfaces and support structures | |
|---|---|---|
| EN 1335-1:2020 | Office furniture workstation ergonomic dimensional guidelines for seated work positions | |
| EN 13986:2004+A1:2015 | Wood-based panel formaldehyde emission and structural performance requirements |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to worktop and cabinet panel construction | |
|---|---|---|
| GB/T 3327-2017 | Office desk dimensional and structural performance standards for height and load requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, requirement for E1 grade board materials | |
| GB/T 4897.3-2015 | Particle board performance requirements for structural furniture use in load-bearing components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to worktop and cabinet panel construction; 2. GB/T 3327-2017: Office desk dimensional and structural performance standards for height and load requirements; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requirement for E1 grade board materials; 4. GB/T 4897.3-2015: Particle board performance requirements for structural furniture use in load-bearing components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
