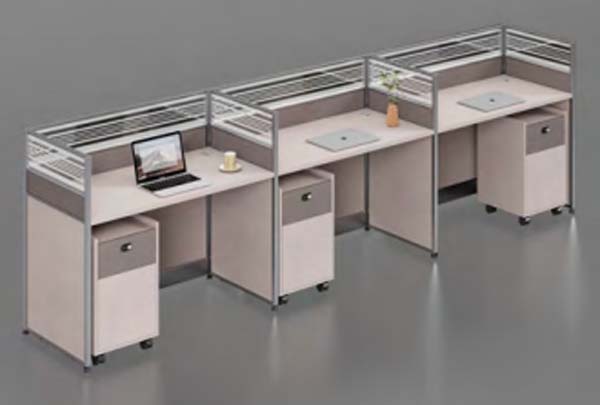

Product supplier3-Person 120-Degree Modular Office Cubicle Workstation with Mobile Pedestals, 1.5mm thick powder-coated silver steel tubing
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4200 × 1400 × 1100 mm | |
|---|---|---|
| Overall assembled dimensions | 4200 x 1400 x 1100 mm | |
| Per-seat work surface dimensions | 1400 x 700 mm | |
| Work surface height above floor | 750 mm | |
| Seated knee clearance height | 650 mm | |
| Privacy divider total height | 1100 mm | |
| Mesh upper panel height | 400 mm | |
| Solid lower divider panel height | 700 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Support frame tube cross-section | 40 x 40 mm | |
| Caster diameter on mobile pedestals | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation net weight | 240 kg | |
|---|---|---|
| Per-seat work surface static load capacity | 120 kg | |
| Supported user count | 3 | |
| Product warranty period | 3 years | |
| Available color option count | 14 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Support frame and legs | 1.5mm thick powder-coated silver steel tubing | |
|---|---|---|
| Work surface tops | 25mm thick melamine-faced MFC board with impact-resistant edge banding | |
| Upper privacy divider panels | Expanded metal mesh with silver steel frame | |
| Lower privacy divider panels | Fabric-wrapped MDF board with taupe/beige two-tone finish | |
| Mobile pedestal cabinet bodies | 18mm thick melamine-faced MFC board | |
| Drawer hardware | Zinc-plated steel drawer slides with integrated key lock | |
| Pedestal casters | Black nylon swivel casters, two with locking brakes | |
| Work surface edge trim | 2mm thick PVC impact-resistant edge banding | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| 120-degree stepped modular layout | Provides three individually separated work zones with staggered sightlines to reduce distraction | |
|---|---|---|
| Two-tone partial-height dividers | Combine 400mm mesh upper for airflow and 700mm solid lower for seated privacy and modesty | |
| Mobile pedestal storage | Each seat includes a lockable 2-drawer rolling cabinet for personal filing and supplies, removable for reconfiguration | |
| Modular connection hardware | Steel frame connectors allow reconfiguration or extension by adding or removing seat modules | |
| Floor leveling feet | Adjustable glides on frame base compensate for uneven office flooring | |
| Integrated cable routing gaps | Pre-cut openings at divider corners route power and data cables under work surfaces | |
| Pedestal caster locks | Two lockable casters per cabinet prevent unintended movement when positioned under desk | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Note for all logistics values | Engineering for initial quotation, not supplier-measured data | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff zones | Provides separated individual workspaces to reduce visual and audio distraction in open areas | |
|---|---|---|
| Call center and customer support teams | Staggered layout allows supervisor visibility while maintaining individual work privacy | |
| Startup and co-working spaces | Modular design supports quick reconfiguration as team size or layout needs change | |
| Administrative and back-office departments | Included mobile pedestals provide close personal storage for documents and supplies | |
| Small business office fit-outs | All-in-one set includes surfaces, dividers and storage for quick deployment | |
| Temporary project work areas | Reusable modular components can be disassembled and relocated between floors |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables: Safety, strength and durability requirements for commercial desks | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office worktables: Mechanical safety requirements for height-adjustable and fixed desks | |
| EN 1335-1:2020 | Office furniture: Work chair dimensions for compatibility with desk knee clearance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products: Performance requirements for strength, durability and stability | |
|---|---|---|
| ANSI/BIFMA X5.6-2022 | Panel systems: Performance standards for cubicle dividers and modular connections |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to work surfaces and pedestals | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal office furniture, applicable to steel support frame | |
| GB/T 10357.1-2013 | Desk strength and durability test methods for load and stability verification | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels used in indoor office furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to work surfaces and pedestals; 2. GB/T 3325-2017: General technical requirements for metal office furniture, applicable to steel support frame; 3. GB/T 10357.1-2013: Desk strength and durability test methods for load and stability verification; 4. GB 18580-2017: Formaldehyde emission limits for wood-based panels used in indoor office furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
