PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 600 × 1100 mm
Overall footprint	1200 x 600 x 1100 mm
Work surface	1200 x 600 mm
Work surface thickness	25.4 mm
Finished work height	750 mm
Under-desk knee opening width	760 mm
Minimum knee clearance height	680 mm
Seated knee depth	450 mm
Overall privacy screen height	1100 mm
Upper slatted screen height	350 mm
Lower solid panel height	600 mm
Rear modesty panel height	450 mm
Panel thickness	32 mm
Cable grommet diameter	80 mm
Leveling foot diameter	30 mm
Post section	40 x 40 mm
Primary Component Thickness	40 mm according to load-bearing role

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed work-surface load	91 kg
Recommended seated-user load	1 person
Panel lateral stability load	75 N per panel
Leveling adjustment	20 mm
Frame static design reference	160 kg
Unit net weight reference	68 kg
Finish wear acceptance	40,000 abrasion cycles
Edge impact acceptance	25 Nm impact at exposed edges
Warranty duration	5 years
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	Light gray melamine-laminated 25.4 mm wood-composite panel
Lower privacy panels	Light gray laminate-faced composite panels
Dark modesty band	Dark gray laminate or powder-coated composite infill
Upper screen infill	Light gray horizontal slatted translucent screen assembly
Structural posts	Dark gray powder-coated steel square uprights
Horizontal rails	Dark gray steel or aluminum extrusions
Bottom raceway	Dark gray metal base channel with rectangular access covers
Cable grommet	80 mm black polymer cable port with open center cap
Leveling feet	Black polymer pads with threaded metal stems
Panel edge trim	Dark gray PVC or aluminum edge banding
Fasteners and connectors	Steel slide-lock brackets and panel joining clips
Frame coating	Textured powder-paint finish on metal framework

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy layout	Three-sided rear, left and right screen arrangement with open front for chair entry
Cable routing	Desktop grommet feeds cables into lower rear raceway with two removable access covers
Power and data provision	Raceway accepts one 2-gang power/data module up to 120 mm wide
Reconfiguration	Panel-and-post knockdown construction allows linear runs and adjacent workstation expansion
Floor leveling	Threaded feet compensate for uneven floors and protect carpet or tile
Leg access	Open front and central under-desk bay provide seated entry without drawers or doors
Modesty protection	Rear solid panel blocks direct under-desk sightlines from walkways
Visual screening	Slatted upper band reduces sightlines while retaining partial light and air passage
Installation method	Flat-packed panels, posts, top and rails assemble on site with mechanical connectors
Accessory attachment	Vertical post slots or rail channels accept hooks, fabric tiles or task accessories
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Creates one seated focus position in call centers, admin floors and shared workplaces
Staff workstation	Supports laptop, monitor, keyboard and phone tasks on a 1200 x 600 mm surface
Project team area	Multiple units can be arranged in linear or back-to-back clusters
Hot-desking neighborhood	Neutral gray finish and cable containment suit rotating staff and flexible seating
Government or procurement fit-out	Durable laminate, metal framing and replaceable panels support long-life standardized installation
Raised-floor office	Leveling feet and rear access covers suit spaces with under-floor or perimeter power changes
Small private administrative cell	Fits one user without doors or storage, leaving room for a mobile pedestal underneath

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002	Office desks safety and structural performance requirements for work surfaces and supports
EN 527-3:2003	Test methods for office desk stability, strength and durability
EN 1023-1:1997	Office screens dimensional and safety requirements for partition systems
EN 1023-2:1997	Office screens mechanical safety and structural test methods

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office desk static load, stability, fatigue and surface performance benchmark
ANSI/BIFMA X5.6-2021	Panel systems safety, stability and attachment-performance benchmark
ANSI/BIFMA e3-2019	Furniture sustainability, material and chemical transparency framework

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	General technical requirements for wooden furniture, applicable to laminate panels and edge quality
GB/T 3325-2017	Metal furniture general technical requirements, applicable to steel posts, rails and coating
GB/T 10357.5-2013	Furniture surface physical and chemical test for cabinet and desk products
GB 18580-2017	Formaldehyde emission limit for wood-based panels and finishing components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to laminate panels and edge quality;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel posts, rails and coating;
3. GB/T 10357.5-2013: Furniture surface physical and chemical test for cabinet and desk products;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels and finishing components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CW-1200-3S-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CW-1200-3S-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CW-1200-3S-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

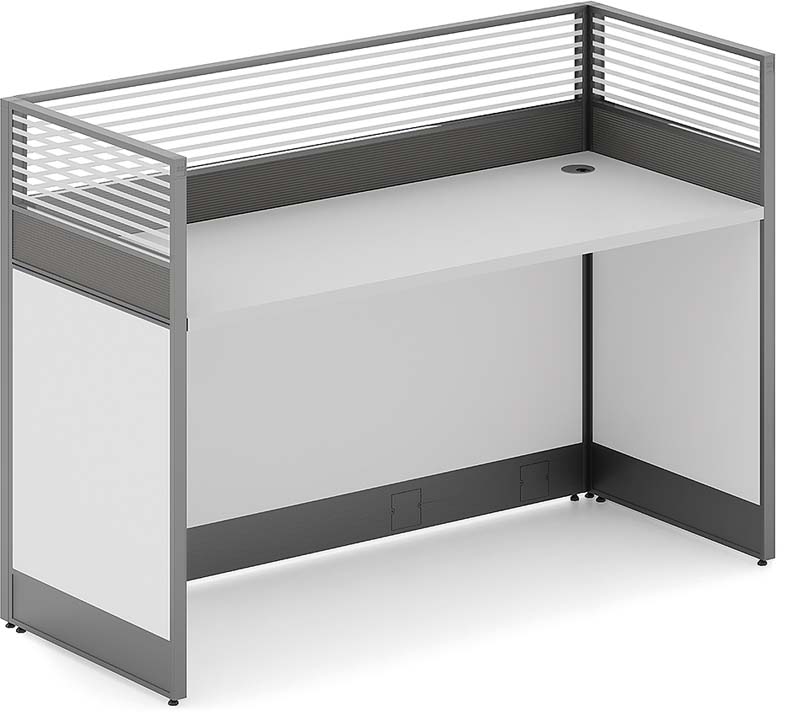

The Single-Person Three-Sided Cubicle Workstation, model CW-1200S-GRY, presents a compact, rectangular workstation with a privacy-focused three-sided screen layout. Rear, left, and right panels form an enclosed focus position, while the open front allows straightforward chair entry. Its neutral gray palette combines a gray metal frame, light gray laminate surfaces and lower panels, dark gray modesty elements, and translucent horizontal slatted upper screens, giving the workstation a structured commercial appearance without fully closing it off from surrounding light. The overall privacy screen height reaches 1100 mm, and the straight work surface measures 1200 by 600 mm at a finished work height of 750 mm. Construction uses panel-and-post knockdown hardware suited to modular office planning. Dark gray powder-coated steel square uprights support dark gray steel or aluminum horizontal rails. The 25.4 mm work surface is a light gray melamine-laminated wood-composite panel, while lower privacy panels use light gray laminate-faced composite material. A dark gray laminate or powder-coated composite infill provides the modesty band, and the upper screen assembly features light gray horizontal translucent slats. A dark gray metal base channel includes rectangular removable access covers. Black polymer leveling pads with threaded metal stems provide 20 mm of adjustment for uneven floors and help protect carpet or tile. Functionally, the workstation is designed for one seated user. An 80 mm black polymer cable grommet with an open center cap routes cables from the desktop into the lower rear raceway, which has two removable access covers and accepts one 2-gang power or data module up to 120 mm wide. The rear solid panel blocks direct under-desk sightlines from walkways, while the open central under-desk bay leaves clear leg access without drawers or doors. The panel-and-post system supports reconfiguration into linear runs, adjacent expansions, and back-to-back clusters. This model suits open-plan offices, call centers, administrative floors, project areas, hot-desking neighborhoods, and standardized government or procurement fit-outs. It is also appropriate for raised-floor offices where rear cable access and leveling are useful. Buyers should plan around a two-carton set, reference assembly time of 40 minutes, packaged gross weight of 120 kg, and packaging volume of 0.8 m³, while confirming layout, power module requirements, floor type, and expansion plans before installation.

Single-Person Three-Sided Cubicle Workstation with Slatted Privacy Screens
