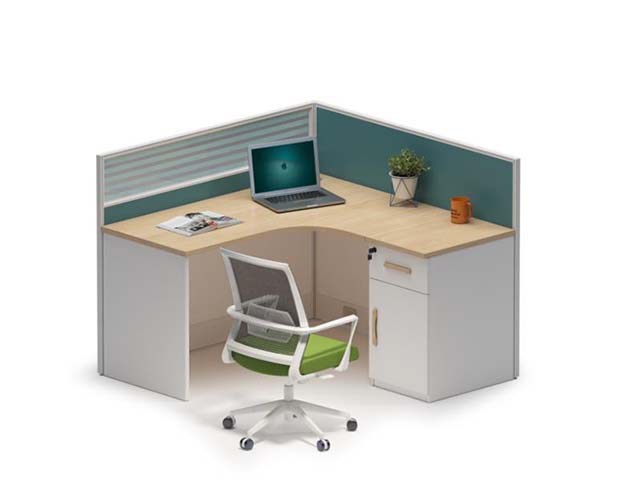

Single-Person L-Shaped Corner Cubicle Workstation with Curved Worktop (model CUB-L1420-CUR-ST) is listed under L-Shaped Office Desk, with overall dimensions of 1420 × 1220 × 1020 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: mid-height,privacy,screens,integrated,drawer,and,cabinet,storage,knock-down,modular,structure,curved,ergonomic,work,edge. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop distributed static load capacity | 91 kg | |
|---|---|---|
| Station net weight | 70 kg | |
| Recommended maximum user weight compatibility | 136 kg | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Frame powder coat corrosion resistance | 500 hours salt spray | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 25mm E1 grade engineered wood core with thermally fused melamine laminate, 2mm PVC edgebanding | |
|---|---|---|
| Storage cabinet body | 18mm E1 grade engineered wood with light grey melamine finish | |
| Privacy screen frame | 1.5mm thick powder-coated aluminum profile with light grey finish | |
| Privacy screen panels | Fabric-laminated teal solid lower section, frosted translucent horizontal upper strip | |
| Support frame and connectors | 1.5mm thick powder-coated steel with adjustable nylon leveling feet | |
| Hardware components | Zinc alloy lock, 3-section silent steel drawer slides, ABS drawer/cabinet handles, steel connecting brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Under-surface cable raceway with 60mm diameter desk grommet for power/data routing | |
|---|---|---|
| Storage security | Keyed lock secures upper drawer; lower cabinet features single-handle swing door | |
| Floor leveling | Adjustable nylon feet at all base contact points to compensate for uneven flooring | |
| Privacy design | Mid-height screens block cross-desk seated sightlines, frosted upper strip maintains natural light transmission |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office individual workstations | Provides semi-private seated workspace for clerical, administrative or task-focused roles | |
|---|---|---|
| Small startup and co-working space seating | Compact footprint fits tight floor plans, modular design allows reconfiguration as team size changes |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable to safety, strength and durability requirements for office work desks | |
|---|---|---|
| EN 527-2:2016 | Applicable to dimensional and ergonomic requirements for office work desks | |
| EN 13986:2004 | Applicable to performance requirements for wood-based panels used in furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable to desk products: static load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Applicable to storage components: drawer strength, slide performance and lock function |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to general technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2016 | Applicable to dimensional and stability requirements for office desks | |
| GB 18580-2017 | Applicable to formaldehyde emission limits for engineered wood panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to general technical requirements for wooden office furniture; 2. GB/T 3327-2016: Applicable to dimensional and stability requirements for office desks; 3. GB 18580-2017: Applicable to formaldehyde emission limits for engineered wood panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
