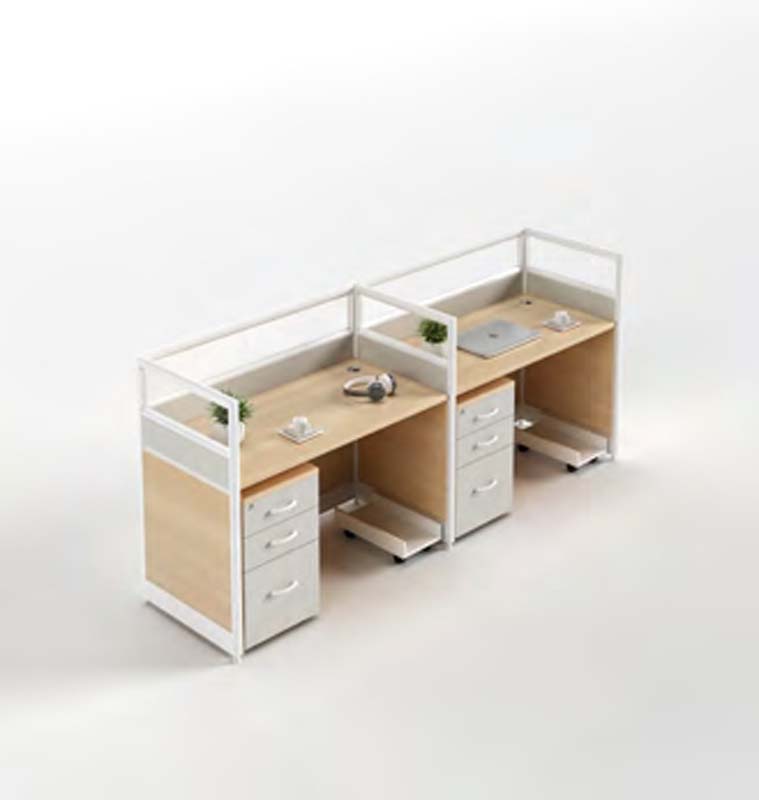

Product supplierTwo-Person Linear Office Workstation with Dividers, Drawer Pedestals and CPU Trays, 25mm melamine-faced MFC particleboard, light oak wood grain finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 700 × 1100 mm | |
|---|---|---|
| Desktop working height | 750 mm | |
| Single work surface per seat | 1200 x 600 mm | |
| Desktop panel thickness | 25 mm | |
| PVC edge band thickness | 2 mm | |
| Divider partition height above desktop | 350 mm | |
| Knee clearance height under desktop | 650 mm | |
| Knee clearance width per seat | 700 mm | |
| Fixed 3-drawer pedestal dimensions | 400 x 500 x 650 mm | |
| Rolling CPU tray dimensions | 250 x 500 x 120 mm | |
| Cable grommet diameter | 60 mm | |
| Steel frame tube wall thickness | 1.2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static vertical load per desktop | 100 kg | |
|---|---|---|
| Single drawer static load capacity | 25 kg | |
| Drawer slide cycle durability | 50000 open/close cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Net weight per workstation | 99 kg | |
| Recommended user capacity | 2 seated office staff | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm melamine-faced MFC particleboard, light oak wood grain finish | |
|---|---|---|
| Edge banding | 2mm PVC edge trim on all exposed panel edges | |
| Support frame | Powder-coated white steel square tube frame and divider rails | |
| Divider panels | Upper translucent clear screen, lower light wood modesty panel, white metal trim | |
| Drawer fronts | Light grey melamine-faced engineered board, white curved metal pulls | |
| Drawer hardware | Cold-rolled steel ball-bearing full-extension drawer slides | |
| CPU tray components | Melamine-faced board tray, four black nylon swivel casters | |
| Modesty panels | 18mm melamine-faced engineered wood matching worktop finish | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | One 60mm diameter cable grommet per desktop, positioned at rear corner of each work surface | |
|---|---|---|
| Storage configuration | One fixed integrated 3-drawer pedestal per seat, with two small stationery drawers and one large file drawer | |
| CPU storage | Pull-out rolling wheeled CPU tray mounted under desktop behind each knee well, slides out for equipment access | |
| Privacy separation | Framed dividers between adjacent seats and at workstation ends, providing visual separation between work zones | |
| Assembly structure | Knock-down flat-pack construction with cam-lock and bolt fasteners for on-site assembly | |
| Drawer operation | Smooth ball-bearing slide action, drawers extend fully to access rear stored contents | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Suitable for general staff work zones, providing separated personal workspaces in shared floors | |
|---|---|---|
| Call center environments | Ideal for high-density seated staff positions with integrated storage and computer support | |
| Administrative/financial departments | Integrated drawer pedestals provide secure personal storage for documents and office supplies | |
| Small office fit-outs | Compact linear 2-person unit fits in tight spaces without requiring custom cubicle installation | |
| Recommended configuration | Pair with ergonomic office task chairs, monitor arms and under-desk cable trays for full workstations |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety, strength and durability requirements, applicable for structural load testing | |
|---|---|---|
| EN 527-2:2002 | Office work tables safety, strength and durability test methods, applicable for cyclic load verification | |
| EN 12521:2015 | Furniture strength, durability and safety requirements for non-domestic seating area tables |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance, applicable for commercial grade rating |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel desk structural quality | |
|---|---|---|
| GB/T 3327-2020 | Test methods for surface physicochemical properties of furniture, applicable for melamine finish durability | |
| GB/T 24821-2009 | Office desks and chairs classification and dimensions, applicable for work surface height and clearance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel desk structural quality; 2. GB/T 3327-2020: Test methods for surface physicochemical properties of furniture, applicable for melamine finish durability; 3. GB/T 24821-2009: Office desks and chairs classification and dimensions, applicable for work surface height and clearance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
