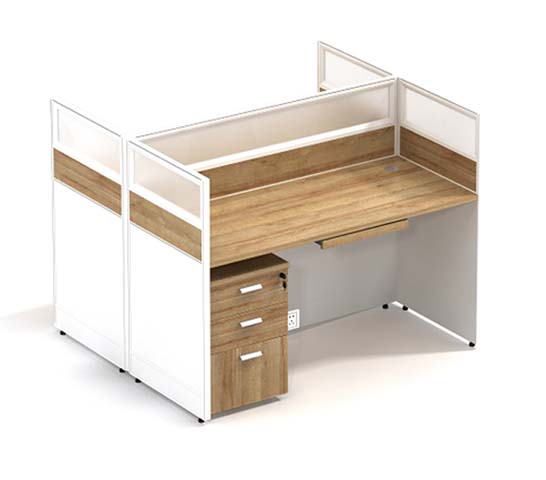

Single-Seat Straight Office Cubicle Workstation with 3-Drawer Mobile Pedestal (model CUB-ST1-1200-KB-PED) is listed under L-Shaped Office Desk, with overall dimensions of 1200 × 600 × 1200 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Modular,design,three-sided,privacy,partition,under-desk,storage,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions (W×D×H) | 1200 × 600 × 1200 mm | |
|---|---|---|
| Finished worksurface height from floor | 750 mm | |
| Partition panel height above worksurface | 450 mm | |
| Desktop panel thickness | 25 mm | |
| Under-desk seated knee clearance height | 680 mm | |
| Under-desk knee clearance width | 800 mm | |
| Under-desk knee clearance depth | 550 mm | |
| 3-drawer mobile pedestal dimensions (W×D×H) | 400 × 500 × 600 mm | |
| Pull-out keyboard tray dimensions (W×D) | 600 × 300 mm | |
| Keyboard tray mounted height from floor | 660 mm | |
| Desktop cable grommet diameter | 60 mm | |
| Partition aluminum frame profile thickness | 2 mm | |
| Adjustable leveling foot height adjustment range | 15 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static uniform load capacity | 91 kg | |
|---|---|---|
| Workstation net weight (excluding packaging) | 68 kg | |
| Surface abrasion resistance rating | 2000 cycles | |
| Recommended maximum user seated weight capacity | 136 kg | |
| Commercial use warranty period | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface | 25mm E0 grade melamine-faced particle board | |
|---|---|---|
| Partition frame | Powder-coated aluminum alloy extrusion | |
| Partition panels | Two-tone composite panel with fabric tackable lower section and translucent upper section | |
| Mobile pedestal | Melamine-faced engineered wood carcass with steel ball-bearing drawer glides | |
| Support frame and legs | 1.2mm thick powder-coated square steel tubing | |
| Hardware components | Zinc-plated steel adjustable leveling feet and nylon casters on pedestal |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Pull-out keyboard tray | Under-desk mounted sliding tray with steel glides, extends 250mm for typing use | |
|---|---|---|
| Integrated cable management | 60mm desktop cable grommet plus under-desk cable channel and integrated AC power outlet | |
| Lockable mobile storage pedestal | Three drawers (2 stationery, 1 hanging file) on 4 swivel casters with central lock | |
| Modular partition connection | Pre-fabricated aluminum frame connectors allow adjacent workstation expansion |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office workstations | Provides individual seated privacy while maintaining modular open office density, suitable for 6person team layouts | |
|---|---|---|
| Administrative and clerical workspaces | Designed for daily computer, paperwork, and filing tasks with integrated storage and cable management |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and mechanical safety requirements | |
| EN 1335-2:2009 | Office furniture seating safety reference for user load accommodations |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, applicable to structural load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.6-2021 | Standard for panel systems, applicable to partition stability and connection strength |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktops and storage components | |
|---|---|---|
| GB/T 3327-2017 | Technical requirements for office desks and tables, applicable to worksurface and structural performance | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktops and storage components; 2. GB/T 3327-2017: Technical requirements for office desks and tables, applicable to worksurface and structural performance; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
