PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2400 × 1200 mm
Overall footprint	2800 x 2400 x 1200 mm
Individual work surface	1200 x 600 mm
Work surface height	750 mm
Privacy partition height	1200 mm
Desk top panel thickness	25 mm
Partition panel thickness	100 mm
Under-desk knee clearance height	650 mm
Under-desk knee clearance depth	450 mm
Central storage pedestal height	750 mm
Modesty panel height	400 mm
Upper transparent partition strip height	200 mm
Leveling foot adjustment range	15 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	260 kg
Per work surface static load capacity	100 kg
Central storage drawer static load	25 kg
Recommended user capacity	4 people
Work surface abrasion resistance	2000 cycles
Surface scratch resistance rating	1H pencil hardness
Warranty period	3 years
Available color options	60
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panel	25mm melamine-faced particleboard, PVC edge banding
Partition frame	1.2mm thick aluminum alloy extruded profile
Lower partition panel	Fabric-upholstered high-density fiberboard, navy finish
Upper partition strip	Semi-frosted acrylic panel, light transparent finish
Central storage cabinet body	18mm melamine-faced MDF, beige/navy two-tone finish
Modesty side panels	18mm melamine-faced engineered wood, beige finish
Support structure	1.5mm thick powder-coated steel square tubing
Leveling feet	Nylon base with steel threaded stud
Hardware components	Zinc-plated steel screws, cam locks, drawer slides
Edge trim	2mm thick PVC edge banding, matching panel color
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cross layout work bays	4 independent seated positions separated by dividers
Central shared storage	1 top open shelf, 2 lockable drawers, 1 lower cabinet
Cable management	Pre-drilled wire grommets at each work bay corner
Leveling adjustment	Rotating feet to adjust height by 15mm for uneven floors
Knock-down assembly	Modular panel and frame connection for on-site installation
Visual privacy	1200mm height partitions block direct seated line of sight
Storage drawer operation	Full-extension side-mount slides with keyed locks
Surface maintenance	Stain and water resistant melamine finish for easy cleaning
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office areas	Dedicated individual workspaces for 4 staff in open offices
Corporate admin departments	Suitable for finance, HR, and general admin staff use
Small business workspaces	Compact footprint maximizes staff capacity in limited space
Call center environments	Partition design reduces cross-talk distraction for agents
Startup office spaces	Modular design supports flexible office layout reconfiguration
Government office work areas	Durable commercial construction meets high-traffic use requirements

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements
EN 1335-1:2020	Office furniture ergonomic dimensional requirements
EN 13986:2004	Wood-based panels for construction performance requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance and safety standard
ANSI/BIFMA X5.9-2019	Storage units performance and safety standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture
GB/T 3327-2016	Office desk performance and dimensional requirements
GB 18580-2017	Formaldehyde emission limits for wood-based panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture;
2. GB/T 3327-2016: Office desk performance and dimensional requirements;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CW-4X-CS-2824

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CW-4X-CS-2824

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CW-4X-CS-2824Open Export Tool

Quick Actions

Post an RFQ

Product Description

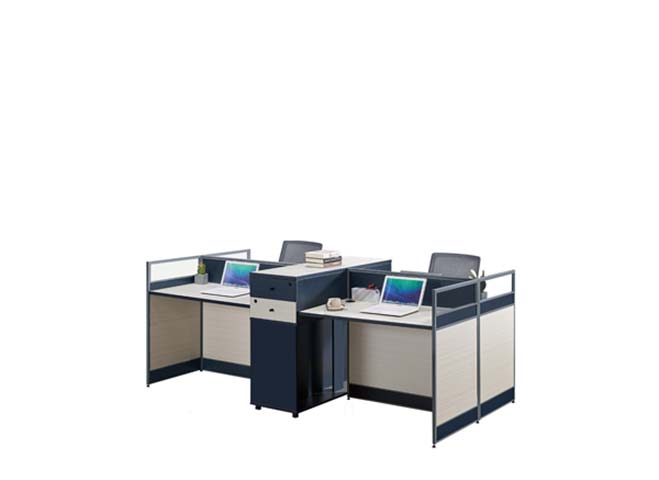

The CW-4X-CS-2824 is an unbranded 4-person cross-shaped office cubicle workstation with integrated central storage, engineered for efficient, privacy-focused shared work environments. Its cross layout arranges four independent seated work bays around a central core, creating balanced, equal access for all users. The system features a two-tone beige and navy finish, with 1200mm tall privacy partitions built from navy fabric-upholstered high-density fiberboard lower panels topped with semi-frosted acrylic upper strips that block direct seated line of sight while preserving soft light transmission. Each 1200 x 600 mm work surface sits at a 750mm height, with 650mm of under-desk knee clearance height and 450mm of clearance depth to support comfortable seated positioning. The central storage unit provides one top open shelf, two lockable full-extension drawers, and one lower enclosed cabinet for shared or personal item stowage. Pre-drilled wire grommets at each work bay corner streamline cable routing for desktop devices, while rotating nylon leveling feet with steel threaded studs allow 15mm of height adjustment to compensate for uneven flooring. The workstation is constructed with durable commercial-grade materials: 25mm melamine-faced particleboard work surfaces with PVC edge banding, 1.2mm thick extruded aluminum alloy partition frames, 18mm melamine-faced MDF for the central storage cabinet, 18mm melamine-faced engineered wood modesty panels, 1.5mm thick powder-coated steel square tubing support structures, and zinc-plated steel hardware including screws, cam locks, and drawer slides. Work surfaces withstand 2000 abrasion cycles and hold a 1H pencil hardness scratch resistance rating, with a 100kg per work surface static load capacity, 25kg per central storage drawer static load, and 260kg total net weight for stable long-term use. Delivered as a knock-down modular system across 2 cartons with a packaged volume of 0.8 m³ and gross weight of 120kg, the unit requires 40 minutes of on-site assembly for installation. It is suited for open plan office areas, corporate admin departments including finance, HR, and general operations, small business workspaces seeking to maximize capacity in limited square footage, call center environments where partitions reduce cross-talk distraction, flexible startup offices that need reconfigurable layouts, and government office areas with high-traffic use demands. Procurement teams should note the unit supports exactly 4 designated users, does not carry third-party brand affiliations, and is backed by a 3-year warranty, with modular design enabling coordinated multi-unit deployment for larger floorplans.

4-Person Cross-Shaped Office Cubicle Workstation with Central Storage Specifications
