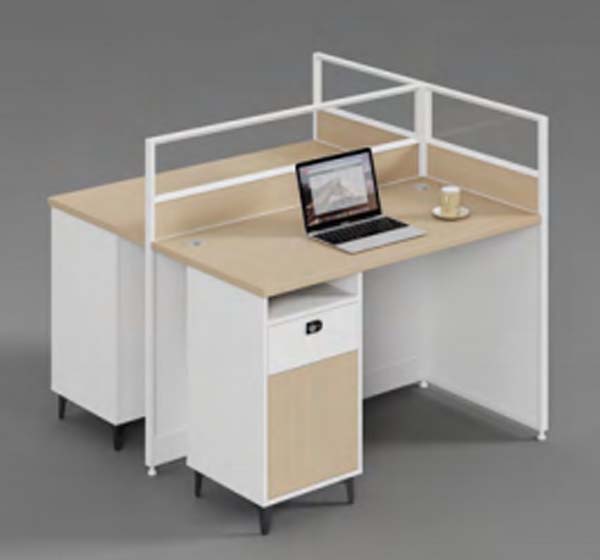

Product supplier2-Person L-Shaped Partitioned Office Cubicle Workstation, 25mm thick MFC engineered wood
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 2200 × 1200 mm | |
|---|---|---|
| Overall footprint | 2800 x 2200 x 1200 mm | |
| Work surface height | 750 mm | |
| Individual work surface segment width | 1600 mm | |
| Work surface depth | 600 mm | |
| Work surface thickness | 25 mm | |
| Privacy partition total height | 1140 mm | |
| Solid partition infill height | 450 mm | |
| Under-desk knee clearance height | 650 mm | |
| Knee clearance width per user | 700 mm | |
| Per-workstation pedestal dimensions | 400 x 550 x 600 mm | |
| Drawer internal height | 150 mm | |
| Cable grommet diameter | 60 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Drawer static load capacity | 20 kg | |
|---|---|---|
| Overall unit net weight | 153 kg | |
| Recommended user count | 2 people | |
| Laminate surface scratch resistance | 2000 cycles | |
| Laminate surface water resistance rating | Class B | |
| Leveler adjustment range | 10 mm | |
| Product warranty period | 10 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core | 25mm thick MFC engineered wood | |
|---|---|---|
| Desktop finish | Thermally fused beige melamine laminate | |
| Desktop edge banding | 2mm thick PVC edging | |
| Partition frame | White powder-coated square steel tube | |
| Partition infill panel | 18mm thick beige/white engineered wood | |
| Storage cabinet body | 16mm thick white laminated engineered wood | |
| Cabinet door and drawer front | Two-tone beige and white laminated MDF | |
| Support legs | 25mm diameter black powder-coated tapered steel legs | |
| Drawer handle | Black recessed ABS plastic handle | |
| Cable grommets | 60mm diameter ABS plastic desk grommets | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation partition function | Low divider screens separate two adjacent workstations to reduce visual distraction | |
|---|---|---|
| Cable management | Two surface grommets route monitor, laptop and power cables off the work surface | |
| Under-desk storage layout | Each user position includes 1 upper utility drawer and 1 lower hinged door cabinet | |
| Leveling adjustment | Leg-mounted adjustable glides compensate for uneven floors | |
| Modular connectivity | Pre-drilled frame connection points allow linking to additional workstation units | |
| Knee clearance design | Unobstructed open space under primary work surface supports standard seated office posture | |
| Storage door operation | Hinged cabinet door swings open to access lower storage compartment | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office areas | Suitable for 2-person team clusters in corporate open office layouts | |
|---|---|---|
| Startup office spaces | Cost-effective paired workstations for growing teams with limited floor space | |
| Shared administrative work areas | Provides dedicated partitioned space for administrative and operations staff | |
| Call center work zones | Low partitions offer partial privacy while maintaining supervisor visibility | |
| Co-working space dedicated desks | Durable commercial construction suitable for daily shared use | |
| Branch office standard workstations | Configurable design supports standardized furnishing across multiple office locations |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and performance requirements for commercial office furniture | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office worktables mechanical safety, strength and durability requirements | |
| EN 13722:2004 | Office furniture storage units strength and durability for under-desk pedestals |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for load, stability and durability performance testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for pedestal cabinet strength and drawer cycle performance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk structural performance | |
|---|---|---|
| GB/T 3327-2016 | Quality and test standards for office desks and worktables, applicable to dimensional accuracy | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office use | |
| GB/T 4897.3-2015 | Performance requirements for particleboard used in furniture structural components |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural performance; 2. GB/T 3327-2016: Quality and test standards for office desks and worktables, applicable to dimensional accuracy; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office use; 4. GB/T 4897.3-2015: Performance requirements for particleboard used in furniture structural components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
