PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1500 × 1500 × 1200 mm
Desktop work surface height	750 mm
Desktop panel thickness	22 mm
PVC edge banding thickness	2 mm
Seated knee clearance height under desktop	650 mm
Knee bay inner width at curved cutout	800 mm
Screen partition height above desktop	450 mm
3-drawer pedestal dimensions	400 x 500 x 650 mm
Opposite-side open storage shelf dimensions	300 x 400 x 150 mm
Cable management grommet diameter	60 mm
Metal screen frame section size	40 x 40 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop uniform static load capacity	150 kg
Applicable user count	1 person
Drawer slide cycle durability	50000 open/close cycles
Desktop surface abrasion resistance	2000 revolutions
Product net weight reference	65 kg
Leveling foot adjustment range	10 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop core	E0-grade high-density fiberboard
Desktop finish	Light wood-tone melamine laminate
Cabinet and drawer panels	White melamine-faced engineered wood
Edge banding	2mm PVC hot-melt edge banding
Privacy screen frame	White powder-coated cold-rolled steel
Drawer slides	Three-section full-extension ball-bearing steel slides
Drawer handles	White ABS plastic integrated pull handles
Cable grommet	ABS plastic round wire port
Leveling feet	Nylon non-slip adjustable glides
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Curved knee bay design	Concave front cutout provides unobstructed seated leg room
Integrated 3-drawer pedestal	Left-side fixed cabinet with two stationery drawers and one file drawer
Opposite open lower shelf	Right-side open shelf provides elevated storage for computer tower
Rear privacy screen	Low partition wraps rear corner edges for visual privacy
Cable management system	60mm desktop grommet routes cables to under-desk wiring channel
Soft-close drawer mechanism	Drawers close quietly without slamming via damper hardware
Central drawer lock	Single key lock secures all three pedestal drawers
Adjustable leveling	Base glides adjust up to 10mm to stabilize desk on uneven floors
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff workstation	Fits single employee work points with visual privacy and dedicated storage
Home office corner workspace	Compact L-shape fits residential corner spaces for remote work use
Startup shared workspace	Durable construction supports daily hot-desking or dedicated seat use
Medical/educational institution staff desk	Easy-to-clean laminate surface meets institutional maintenance requirements
Small business administrative workstation	Integrated storage eliminates need for separate filing cabinets for small offices

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables and desks – Safety requirements, applicable to structural stability
EN 527-2:2016	Office worktables and desks – Mechanical safety test methods for strength and durability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products standard, applicable to static load, cycle and stability performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel and cabinet construction
GB 18584-2017	Limit of formaldehyde emission for wooden furniture, E0 grade ≤0.05 mg/m³ recommended
GB/T 3327-2016	Performance test method for office desks and tables, applicable to load and stability testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet construction;
2. GB 18584-2017: Limit of formaldehyde emission for wooden furniture, E0 grade ≤0.05 mg/m³ recommended;
3. GB/T 3327-2016: Performance test method for office desks and tables, applicable to load and stability testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LWS-1500-LWD-3DR-SCR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LWS-1500-LWD-3DR-SCR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LWS-1500-LWD-3DR-SCROpen Export Tool

Quick Actions

Post an RFQ

Product Description

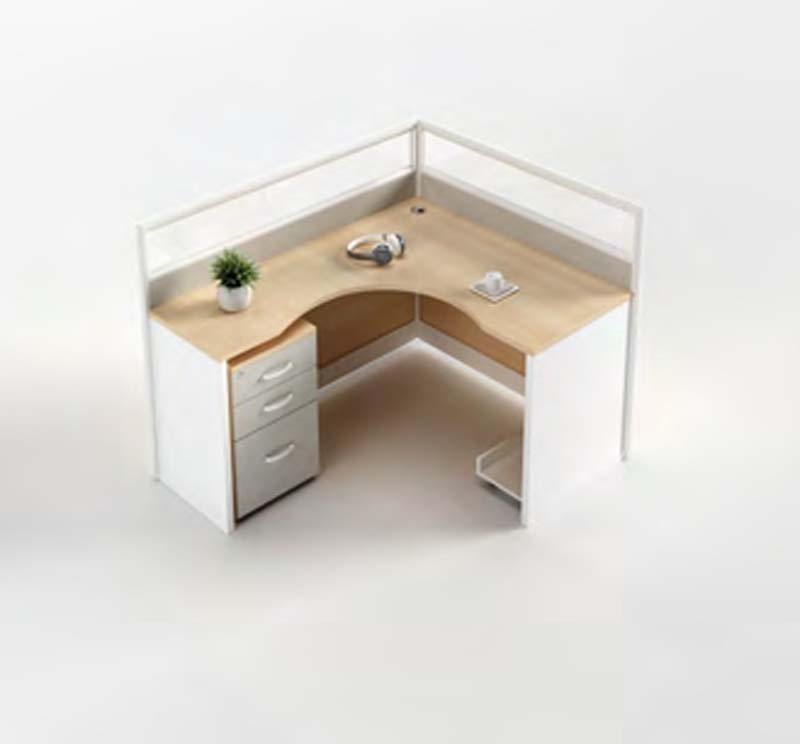

The LWS-1500-LWD-3DR-SCR is an unbranded two-tone L-shaped single-user office workstation desk that balances functional design with understated visual appeal. Its corner layout creates a dedicated work zone that fits neatly into angled spaces, with a light wood-tone desktop paired with crisp white cabinet panels and a white metal privacy screen frame for a clean, modern aesthetic that complements a range of interior palettes. The low rear privacy screen wraps the desk’s back corner edges to define personal work space without blocking overhead light or open sightlines across a room. The desktop is finished with 2mm PVC hot-melt edge banding, and stands at a standard work height with a concave front curved cutout that provides unobstructed seated leg room, with a fixed 3-drawer pedestal positioned on the left and an open lower shelf on the opposite side. The desk is constructed with an E0-grade high-density fiberboard desktop core surfaced with light wood-tone melamine laminate, while cabinet and drawer panels use white melamine-faced engineered wood. The privacy screen frame is built from white powder-coated cold-rolled steel, drawers operate on three-section full-extension ball-bearing steel slides with integrated white ABS plastic pull handles, soft-close damper hardware prevents slamming, and a single central key lock secures all three drawers at once. The left pedestal holds two stationery drawers and one file drawer, while the right open shelf offers elevated storage for a computer tower. A round ABS plastic cable grommet routes cords from the work surface to the under-desk area for tidy cable management, and nylon non-slip adjustable leveling feet compensate for minor unevenness in flooring. The melamine surface supports straightforward cleaning for regular maintenance. This workstation suits a variety of settings: open-plan office staff work points that require visual privacy and dedicated storage, residential home office corner spaces for remote work, startup shared workspaces for both hot-desking and assigned seating, staff work areas in medical or educational institutions, and small business administrative stations where integrated storage removes the need for separate filing cabinets. For procurement planning, note that each unit ships across multiple cartons, requires assembly per set, and includes all core functional components without additional separate accessories needed for immediate use.

Two-Tone L-Shaped Single-User Office Workstation Desk with Drawer Pedestal, Privacy Screen and Cable Grommet Specifications
