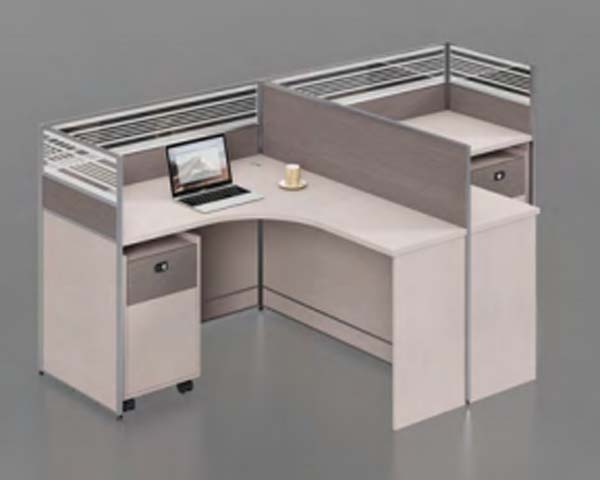

Name: Curved L-Shape Modular Corner Office Cubicle Workstation with Mobile Pedestal
Brand: Fanshidun
SKU: SMDL1X

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1500 × 1400 × 1200 mm
Overall footprint (single station)	1500 x 1400 x 1200 mm
Work surface height from floor	750 mm
Worktop thickness	25 mm
Privacy partition total height	1200 mm
Upper ventilated mesh partition height	300 mm
Lower solid fabric partition height	900 mm
Partition frame profile thickness	40 mm
Knee well opening width	800 mm
Knee well minimum clearance height	680 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Worktop curved front radius	400 mm
Cable grommet diameter	60 mm
Modular connector profile width	30 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single work surface static load capacity	150 kg
Fabric panel acoustic attenuation	18 dB
Recommended user weight capacity	120 kg
Worktop surface abrasion resistance	2000 cycles
Frame finish scratch hardness	3H
Product net weight (single station)	85 kg
Standard warranty period	3 years
Available color options	6
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	High-density engineered fiberboard, density 720 kg/m³
Worktop surface finish	Wear-resistant melamine laminate, 2mm PVC hot-melt edge banding
Partition frame	1.2mm thick aluminum alloy extrusion, electrostatic powder-coated finish
Upper partition section	Ventilated steel mesh, polyester powder coated
Lower partition section	B1 flame-retardant polyester fabric over sound-dampening fiber core
Structural support legs	1.2mm thick cold-rolled steel, powder coated anti-rust finish
Mobile pedestal body	18mm thick melamine-faced engineered wood, matching worktop finish
Drawer slides	Three-section full-extension ball-bearing steel slides, soft-close mechanism
Drawer lock	Keyed cam lock with common keying option
Pedestal casters	50mm diameter swivel polyurethane casters, two with brake locks
Cable management channels	PVC-coated steel wire trays integrated inside partition frames
Modular connecting hardware	Zinc-plated steel bracket and connector sets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular cluster configuration	Connects to adjacent matching units to form 8seat workstation layouts
Mobile pedestal mobility	Rolls freely on four swivel casters, locks in place under work surface
Cable management system	Internal partition channels route power/data cables to 60mm desk grommet
Seated privacy screening	1200mm high partitions block direct line of sight between seated adjacent users
Drawer locking mechanism	Central key lock secures all three pedestal drawers simultaneously
Work surface access	Curved front corner creates open entry for seated users without sharp edges
Sight line ventilation	Upper mesh partition section allows air flow between workstations
Adjustable leveling feet	Integrated leg levelers compensate for uneven floor surfaces
Integrated modesty panel	Solid lower partition panel hides under-desk area from adjacent workers
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan corporate office staff zones	Clustered configurations provide semi-private workspaces for general administrative and clerical staff
Medical and institutional administration areas	Durable, easy-clean surfaces and flame-retardant materials suit high-traffic public facility offices
Shared co-working and startup spaces	Modular design allows easy reconfiguration as team sizes change
Call center and customer service floors	Acoustic privacy panels reduce cross-talk distraction between adjacent agents
Government and public service work areas	Standardized dimensions and durable construction suit long-term high-volume use
Small business back-office workspaces	Single station fits compact corner spaces, with under-desk storage to maximize floor space
Temporary project team workspaces	Connectable modules can be assembled into temporary team clusters and disassembled for relocation

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2019	Office worktables safety and strength requirements, applicable to work surface structure
EN 1335-1:2020	Office furniture workstation ergonomic dimensional guidance
EN 1022:2018	Furniture seating and table stability test methods

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability and structural performance
ANSI/BIFMA X5.9-2019	Storage units standard for mobile pedestal performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktop and pedestal components
GB 18580-2017	Formaldehyde emission limits for wood-based panel products, E1 grade required
GB/T 3325-2017	Technical requirements for metal furniture hardware, applicable to frame and drawer hardware
GB 20286-2006	Flame retardant requirements for public place furniture upholstery
GB/T 10357.1-2013	Furniture mechanical performance test for table static load

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and pedestal components;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panel products, E1 grade required;
3. GB/T 3325-2017: Technical requirements for metal furniture hardware, applicable to frame and drawer hardware;
4. GB 20286-2006: Flame retardant requirements for public place furniture upholstery;
5. GB/T 10357.1-2013: Furniture mechanical performance test for table static load;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L1500-CRV-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L1500-CRV-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L1500-CRV-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Fanshidun model CUB-L1500-CRV-PED is a curved L-shape modular corner office cubicle workstation paired with a matching mobile pedestal, finished in a coordinated beige-grey two-tone palette tailored for commercial and public office settings. Its visual design balances semi-enclosed privacy and open access: the L-shaped layout features a gently curved front corner that eliminates sharp edges to create a welcoming entry point for seated users, while integrated partitions rise to deliver sightline separation between adjacent work positions. The partition design splits into two sections: a lower solid fabric panel and an upper ventilated mesh section, framed by slim, uniform profiles that create a clean, cohesive cluster appearance when multiple units are connected. The workstation is built for consistent long-term use across high-traffic environments. Its 25mm thick worktop uses a high-density engineered fiberboard substrate with a wear-resistant melamine laminate surface, sealed with 2mm PVC hot-melt edge banding to resist daily wear. Partition frames are constructed from 1.2mm thick electrostatic powder-coated aluminum alloy extrusion; the lower partition segment wraps a sound-dampening fiber core in B1 flame-retardant polyester fabric, while the upper segment uses polyester powder-coated ventilated steel mesh. Structural support legs are made from 1.2mm thick anti-rust powder-coated cold-rolled steel, and the included mobile pedestal uses 18mm thick melamine-faced engineered wood matched to the worktop finish, fitted with three-section full-extension soft-close ball-bearing steel drawer slides and a central keyed cam lock that secures all three drawers at once, with a common keying option available for facility-wide management. Functionality is engineered for practical daily use: the 1200mm total partition height blocks direct line of sight between seated adjacent users, with the fabric lower panel delivering 18 dB of acoustic attenuation to reduce conversational distraction, while the upper mesh section preserves cross-workstation air flow. Internal partition channels route power and data cables to a 60mm desk grommet for tidy cord management. The mobile pedestal rolls freely on four swivel casters and locks securely under the desk to provide out-of-sight storage, with a knee well opening sized for comfortable seated access. The single work surface supports 150 kg of static load, with a recommended user weight capacity of 120 kg, a worktop abrasion resistance rating of 2000 cycles, and 3H scratch hardness for frame finishes. This model suits a wide range of public and commercial workspaces. Clustered configurations connecting up to 8 seats work well for open-plan corporate staff zones, call center floors, and government or public service work areas, delivering consistent semi-private workstations for administrative, clerical, and customer service roles. Its durable, easy-clean surfaces and flame-retardant materials make it appropriate for medical and institutional administration offices, while its modular design supports flexible reconfiguration for co-working spaces and growing startup teams. A single standalone station fits compact corner positions in small business back offices, with under-desk storage to maximize usable floor space.
