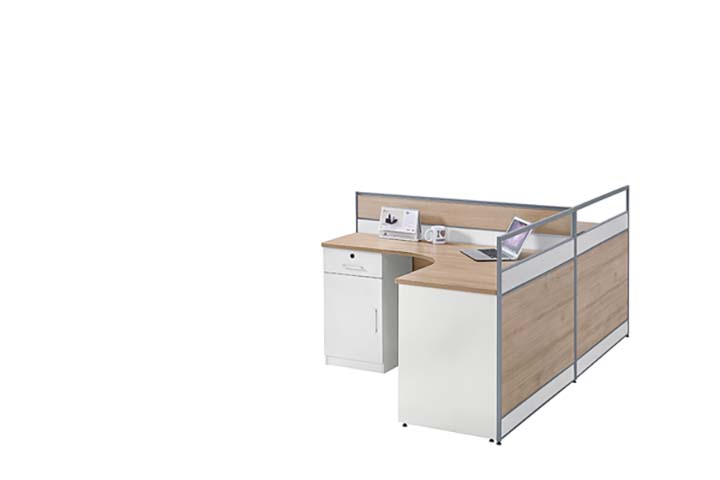

Product supplier2-Person L-Shaped Partitioned Office Workstation with Integrated Storage, 25mm melamine-faced particleboard, light oak finish, 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1400 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 100 kg | |
|---|---|---|
| Seating capacity | 2 users | |
| Product net weight | 125 kg | |
| Partition screen noise reduction coefficient | 0.3 | |
| Adjustable foot maximum load per foot | 80 kg | |
| Edge banding impact resistance | 1.5 J | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm melamine-faced particleboard, light oak finish, 2mm PVC edge banding | |
|---|---|---|
| Storage cabinet carcass | 16mm melamine-faced particleboard, matte white finish, 1mm PVC edge banding | |
| Partition frame | Gray powder-coated cold-rolled steel square tubing | |
| Lower partition panels | 12mm MDF with matching light oak melamine finish | |
| Upper partition divider | Frosted semi-transparent acrylic panel | |
| Drawer front and cabinet door | 18mm melamine-faced MDF, matte white finish, recessed metal pull handles | |
| Leveling feet | Injection-molded nylon base with steel threaded stem | |
| Drawer lock | Zinc alloy keyed cam lock with two keys per lock | |
| Worktop surface finish | Scratch-resistant melamine laminate, class 1 wear rating | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated left storage pedestal | 1 lockable top drawer plus 1 lower hinged door cabinet, secures personal items | |
|---|---|---|
| Modular partition system | 3-sided privacy screens separate adjacent work positions to reduce distraction | |
| Cable management access | Pre-drilled 60mm cable grommet at each work position routes monitor and power cords | |
| Floor leveling adjustment | Threaded nylon feet adjust 15mm to stabilize unit on uneven office floors | |
| L-shaped work surface layout | Provides extended work area for documents, peripherals and task equipment | |
| Knock-down assembly design | Flat-packed for transport, cam-lock fasteners enable on-site assembly without specialized tools | |
| Reconfigurable layout | Partition frames connect with standard clips to align with additional matching workstation modules | |
| Curved corner work zone | Smooth rounded inner corner eliminates sharp edges, improves user movement between tasks | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office areas | Provides individual work zones for teams in corporate administrative spaces | |
|---|---|---|
| Call center and customer service spaces | Partition screens reduce distraction for staff on prolonged voice calls | |
| Small business startup offices | Integrated storage eliminates need for separate filing cabinets in compact spaces | |
| Government and institutional workspaces | Durable panel construction withstands high daily use in public sector offices | |
| Temporary project team spaces | Reconfigurable design allows quick rearrangement for changing team sizes | |
| Shared co-working spaces | Defined individual work positions support hot-desking for multiple daily users |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable for EU market acceptance | |
|---|---|---|
| EN 13986:2004+A1:2015 | Wood-based panels for structural use, applicable for panel performance verification | |
| EN 71-3:2019+A1:2021 | Migration of certain elements, applicable for surface finish safety checks |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard, applicable for load and stability testing | |
|---|---|---|
| ANSI/BIFMA X7.1-2022 | Formaldehyde emission standard for office furniture, applicable for low-emission verification |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel structural components | |
|---|---|---|
| GB/T 3327-2016 | Performance standards for office desks and workstations, applicable to worktop load and stability | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable for E1 grade acceptance | |
| GB/T 10357.1-2013 | Furniture mechanical test for table strength and durability, applicable for structural validation |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel structural components; 2. GB/T 3327-2016: Performance standards for office desks and workstations, applicable to worktop load and stability; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for E1 grade acceptance; 4. GB/T 10357.1-2013: Furniture mechanical test for table strength and durability, applicable for structural validation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
