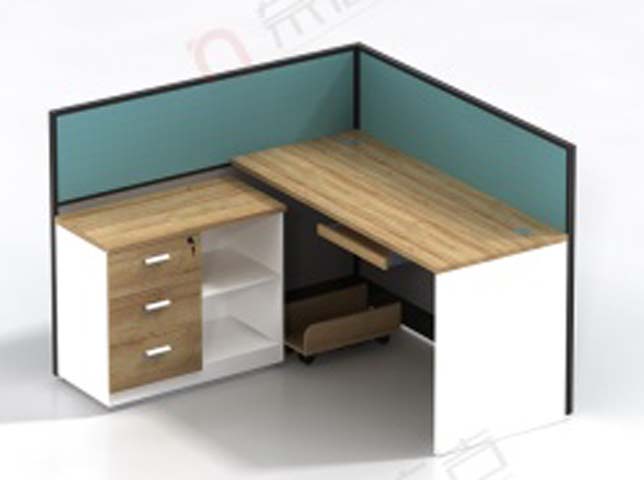

Single-Seat L-Shaped Office Workstation Desk with Fabric Partition (model LWS-1612-3D-P) is listed under L-Shaped Office Desk, with overall dimensions of 1600 × 1600 × 1200 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modular,cubicle,structure,fabric,privacy,screen,integrated,drawer,storage,commercial,furniture. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint (work surface + return) | 1600 x 1600 mm | |
|---|---|---|
| Working desk surface height | 750 mm | |
| Desktop panel thickness | 25 mm | |
| Partition screen total height | 1200 mm | |
| Partition panel thickness | 30 mm | |
| Main desktop depth | 600 mm | |
| Side return storage unit width | 800 mm | |
| Side return storage unit depth | 500 mm | |
| Knee well clearance height | 650 mm | |
| Knee well clearance width | 700 mm | |
| Keyboard tray travel extension | 300 mm | |
| Drawer internal height per unit | 150 mm | |
| Open shelf vertical spacing | 300 mm | |
| Cable grommet diameter | 60 mm | |
| Mobile CPU caddy internal dimension | 250 x 500 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop uniform static load capacity | 100 kg | |
|---|---|---|
| Surface abrasion resistance | 2000 cycles | |
| Drawer slide cycle life | 50000 cycles | |
| Net product weight (per workstation) | 75 kg | |
| Recommended maximum user weight capacity | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface and cabinet panels | E1 grade melamine-faced particleboard | |
|---|---|---|
| Partition screen frame | 1.2mm wall thickness aluminum alloy | |
| Partition screen infill | Fabric-wrapped fiberboard panel | |
| Panel edge treatment | 2mm thick PVC edge banding | |
| Drawer hardware | Zinc-plated steel ball-bearing drawer slides | |
| Support and base structure | 1.0mm thick powder-coated steel frame with adjustable glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Keyboard tray operation | Under-desk pull-out sliding tray | |
|---|---|---|
| Storage drawer security | 3-drawer lockable pedestal with central key lock | |
| CPU support mobility | Wheeled rolling caddy for desktop computer tower | |
| Cable management | Under-desk cable routing channel with surface grommets |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office individual workstations | Provides semi-privacy and integrated storage for daily administrative work | |
|---|---|---|
| Corporate staff and administrative zones | Suited for regular seated computer work, document filing and storage |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2017 | Office worktables safety and strength requirements | |
|---|---|---|
| EN 1335-1:2020 | Office furniture workstations dimensional coordination |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2023 | Office desks and workstations dimensional and performance standards | |
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 3327-2023: Office desks and workstations dimensional and performance standards; 3. GB 18584-2001: Limit of formaldehyde emission for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
