PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 1600 × 1200 mm
Overall workstation footprint	1600 x 1600 x 1200 mm
Work surface height	750 mm
Work surface depth (main work area)	700 mm
Privacy partition height	1200 mm
Privacy partition panel thickness	60 mm
Knee clearance opening width	800 mm
Knee clearance height under worktop	680 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Desktop panel thickness	25 mm
Cable grommet diameter	80 mm
Side support cabinet depth	500 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Work surface static load capacity	100 kg
Mobile pedestal drawer static load	30 kg per drawer
Net weight (single workstation complete)	85 kg
Work surface surface scratch resistance	2000 cycles
Recommended user weight capacity	130 kg
Standard product warranty	10 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm E1-grade melamine-faced particle board with 2mm PVC edge banding
Privacy partition frame	Powder-coated gray aluminum extrusion profile
Privacy partition infill panel	Tackable blue woven fabric over medium-density fiberboard core
Fixed under-desk side cabinet	18mm melamine-faced particle board with matching PVC edge banding
Mobile pedestal	0.8mm cold-rolled steel with white epoxy powder-coated finish
Cable management grommet	ABS plastic with brushed finish cover
Modular partition connectors	Die-cast aluminum alloy with gray powder coating
Pedestal casters	50mm black nylon swivel casters with brake function
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Single corner desktop grommet routes power/data cables to under-desk space
Modular cluster assembly	Aluminum slot connectors allow linking of adjacent workstations into open-plan clusters
Mobile pedestal storage	Lockable top drawer plus lower filing cabinet door, rolls fully under work surface
Seated privacy screening	1200mm tall fabric panels block direct line of sight between adjacent seated users
Knee access design	Concave curved front cutout provides leg room for centered seated computer use
Tackable partition surface	Fabric partition panels accept push pins for posting notices and documents
Pedestal mobility lock	Two braked casters fix pedestal position when deployed under desk
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff workstations	Ideal for clustered team seating in corporate open offices requiring seated visual privacy
Call center and administrative offices	Suitable for high-density staff seating with cable management for computer equipment
Startup and co-working spaces	Modular design allows reconfiguration as team size and layout changes over time
Government and enterprise back offices	Durable construction and lockable storage meet standard administrative office requirements
Recommended configuration	Pair with ergonomic mid-back office chair and under-desk CPU holder for complete workstation setup

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to worktop load and stability
EN 1335-1:2020	Office furniture work chair dimensions referenced for knee clearance compatibility

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability, and structural performance
ANSI/BIFMA X5.9-2019	Storage units standard applicable to mobile pedestal load and drawer cycle performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktop and cabinet panel quality
GB/T 35607-2017	Green product assessment for furniture, applicable to formaldehyde emission limits

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet panel quality;
2. GB/T 35607-2017: Green product assessment for furniture, applicable to formaldehyde emission limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L1616-BLWH-MP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L1616-BLWH-MP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L1616-BLWH-MPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

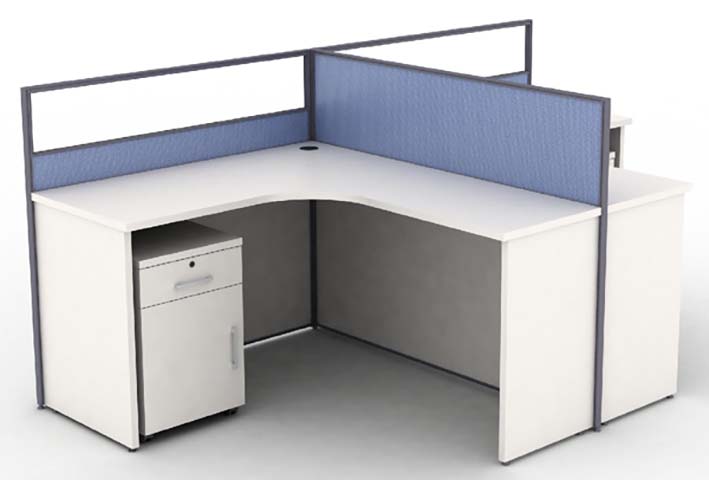

This L-shaped modular office cubicle workstation balances open-plan flexibility with individual seated privacy, designed for high-utility commercial workspace layouts. Its 90-degree corner configuration creates a dedicated personal work zone bounded by 1200mm tall blue fabric privacy partitions framed in powder-coated gray aluminum; the partitions block direct sightlines between adjacent seated users and feature a tackable woven fabric surface that accepts push pins for posting notices and reference materials. A single corner cable management grommet routes power and data cords from the work surface to the under-desk area for uncluttered equipment setup, while a concave curved front cutout provides centered leg room for seated computer use. The worktop and fixed under-desk side cabinet are constructed from E1-grade melamine-faced particle board finished with matching PVC edge banding for clean, durable edges. The included lockable mobile pedestal is built from cold-rolled steel with a white epoxy powder-coated finish, fitted with black nylon swivel casters, two of which include brake locks to hold the unit in place when stowed fully under the work surface. The pedestal features a lockable top drawer and lower filing cabinet compartment to secure personal items and work documents. Die-cast aluminum alloy modular connectors allow adjacent workstations to link together into clustered layouts that scale to fit open floor plans, with straightforward reconfiguration to adapt to changing team sizes. The workstation is well suited for clustered staff seating in corporate open-plan offices, high-density setups in call centers and administrative offices, flexible layouts for startup and co-working spaces, and durable long-term use in government and enterprise back-office environments. For procurement planning, note that each full workstation ships in two cartons, with a per-unit assembly time of 40 minutes. The product includes a 10-year standard warranty, and is recommended to be paired with an ergonomic mid-back office chair and under-desk CPU holder for a fully complete individual work setup. The unbranded unit carries the model number CUB-L1616-BLWH-MP, with a white and blue color scheme that complements a wide range of commercial interior palettes. When planning layouts, teams can rely on its consistent static load ratings to support standard office equipment and regular daily use, with casters that allow easy repositioning of the storage pedestal for cleaning or layout adjustments.

L-Shaped Modular Office Cubicle Workstation with Fabric Privacy Partitions and Lockable Mobile Pedestal Specifications
