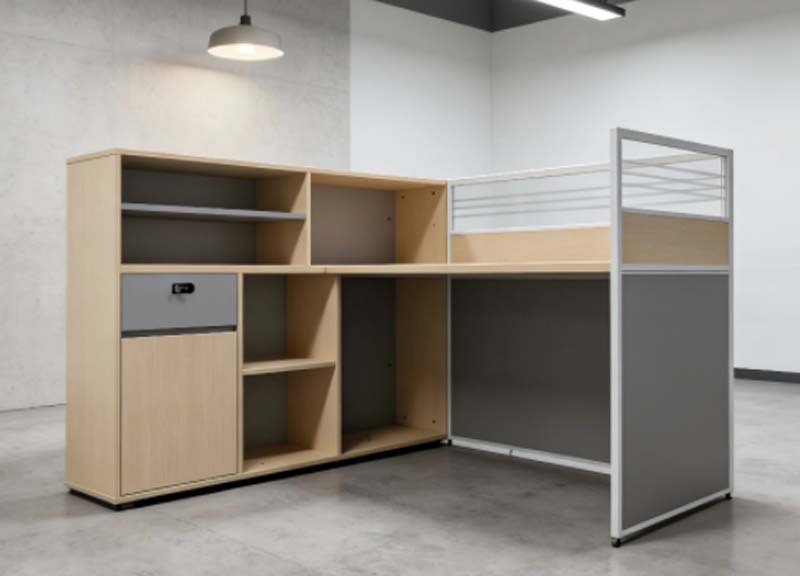

Name: L-Shaped Office Workstation Desk with Integrated Storage and Rolling Divider Screen
Brand: KANAITE
SKU: TMXCS4

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1200 × 1200 mm
Work surface height from floor	760 mm
Left storage return width	1200 mm
Left storage return depth	400 mm
Main work surface depth	600 mm
Under-desk knee clearance height	620 mm
Divider screen overall height	1200 mm
Worktop panel thickness	25 mm
Storage cabinet panel thickness	18 mm
Divider panel thickness	32 mm
PVC edge banding thickness	2 mm
Cable grommet diameter	60 mm
Upper open shelf compartment height	300 mm
Lower storage compartment height	420 mm
Drawer internal usable depth	350 mm
Finished Top Thickness	50 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit net weight	120 kg
Work surface static load capacity	70 kg
Drawer slide open/close cycle rating	50000 cycles
Cabinet door hinge open/close cycle rating	80000 cycles
Surface scratch resistance rating	2 N
Recommended user capacity	1 person
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface and cabinet panels	E1 grade melamine-faced particleboard
Panel edge banding	2 mm thick PVC edge trim
Drawer and divider front panels	Matte grey melamine-faced MDF
Divider screen frame	Silver anodized aluminum extrusion
Drawer lock	Zinc alloy keyed cam lock
Drawer slides	Cold-rolled steel 3/4 extension ball bearing slides
Cabinet hinges	Cold-rolled steel concealed self-closing hinges
Divider screen upper section	Horizontal slat matte rigid panel with aluminum rail frame
Divider casters	360-degree swivel hard nylon casters
Unit base feet	Anti-slip black plastic adjustable foot pads
Cable management components	ABS plastic cable grommets and under-desk raceway
Internal shelf supports	Zinc-plated steel shelf pins

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Left return storage configuration	2 upper open shelves, 1 upper lockable drawer, 1 lower hinged door cabinet, 2 lower open cubbies
Rolling divider screen mobility	4 swivel casters allow repositioning along desk edge for adjustable privacy
Drawer locking function	Keyed cam lock secures upper drawer for private document and supply storage
Cable management function	Desktop grommets and under-desk raceway route power and data cables off work surface
Adjustable base feet	Rotating foot pads level the unit on uneven concrete or carpeted office floors
Adjustable shelf positioning	Lower open shelves accept movable shelf pins for variable compartment heights
Divider privacy function	Solid lower panel blocks direct line of sight, slatted upper section allows light transmission
Work surface configuration	L-shaped continuous worktop spans main seating area and adjacent return surface
Modular reconfiguration	Aluminum frame divider is detachable for open-plan layout adjustments
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office individual workstations	Provides dedicated personal work space with side privacy divider for staff in shared office areas
Small business or startup office layouts	Combines work surface and integrated storage to minimize additional furniture purchases for compact spaces
Home office executive workspaces	Offers sufficient storage and work area for remote work, document organization and computer equipment
Administrative and clerical work areas	Lockable drawer secures sensitive documents, open shelves allow quick access to frequently used supplies
Temporary or reconfigurable office spaces	Rolling divider allows easy layout changes for team projects or event space adjustment
Co-working space dedicated desks	Individual workstation with storage and privacy suits monthly dedicated desk membership offerings

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable to work surface load and stability
EN 14073-2:2004	Office storage furniture safety requirements, applicable to cabinet and drawer structural performance
EN 14074:2004	Office storage furniture test methods for strength and durability, applicable to hinge and slide testing

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability and structural performance for commercial office use
ANSI/BIFMA X5.9-2019	Storage units standard for load capacity, cycle durability and safety of office cabinetry

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel office desk construction and finish quality
GB/T 10357.1-2013	Furniture mechanical performance test for tables, applicable to desktop static load and stability testing
GB 18580-2017	Formaldehyde emission limit for wood-based panels, required for E1 grade panel material acceptance
GB/T 4897.3-2003	Particleboard specification for furniture use, applicable to structural cabinet and worktop panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel office desk construction and finish quality;
2. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to desktop static load and stability testing;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required for E1 grade panel material acceptance;
4. GB/T 4897.3-2003: Particleboard specification for furniture use, applicable to structural cabinet and worktop panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L1276-STG-DIV

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L1276-STG-DIV

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L1276-STG-DIVOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The KANAITE WS-L1276-STG-DIV is an L-shaped office workstation desk designed to balance functional workspace, integrated storage, and flexible privacy for both commercial and residential work settings. Its two-tone light oak and matte grey finish delivers a clean, modern visual profile, with a continuous L-shaped layout anchored by a floor-standing base. The integrated left-side storage return sits flush with the main work surface, creating a cohesive footprint that eliminates the need for separate adjacent storage units. Constructed for consistent daily use, the desk features E1 grade melamine-faced particleboard for its work surface and cabinet panels, finished with 2mm thick PVC edge trim to protect panel edges from impact. Drawer and divider front panels use matte grey melamine-faced MDF, while the rolling divider screen is built with a silver anodized aluminum extrusion frame, solid lower privacy panel, and slatted upper rigid panel set within an aluminum rail frame, supported by 360-degree swivel hard nylon casters. Hardware components include cold-rolled steel 3/4 extension ball bearing drawer slides, cold-rolled steel concealed self-closing cabinet hinges, and a zinc alloy keyed cam lock for the upper drawer. Rotating adjustable base feet allow stable placement on uneven concrete or carpeted floors. Practical functions are integrated directly into the unit to support streamlined work routines. The left return storage incorporates two upper open shelves, one lockable upper drawer for private document and supply storage, one lower hinged door cabinet, and two lower open cubbies with adjustable shelf pins to customize compartment heights. The rolling divider screen can be repositioned along the desk edge to adjust privacy levels; its solid lower panel blocks direct line of sight, while the slatted upper section allows light to pass through the workspace. Built-in cable management uses desktop grommets and an under-desk raceway to route power and data cables away from the work surface, reducing visual clutter. This workstation is suited for a wide range of spaces: open-plan office individual workstations, small business and startup offices seeking to minimize additional furniture purchases for compact layouts, home office executive workspaces, administrative and clerical work areas requiring secure document storage, temporary or reconfigurable office spaces that need flexible layout adjustments, and co-working spaces offering dedicated desk memberships. For procurement planning, note the unit ships across multiple cartons per set, with a reference assembly time of 40 minutes per unit. The desk is designed for single-user operation, with a work surface height aligned to standard office seating, and under-desk knee clearance sized to accommodate standard task chairs. Select configurations where the L-shaped footprint fits allocated floor space without obstructing walkways, and account for the divider’s mobile design when planning adjacent workstations or circulation paths.

L-Shaped Office Workstation Desk with Integrated Storage and Rolling Divider Screen Specifications
