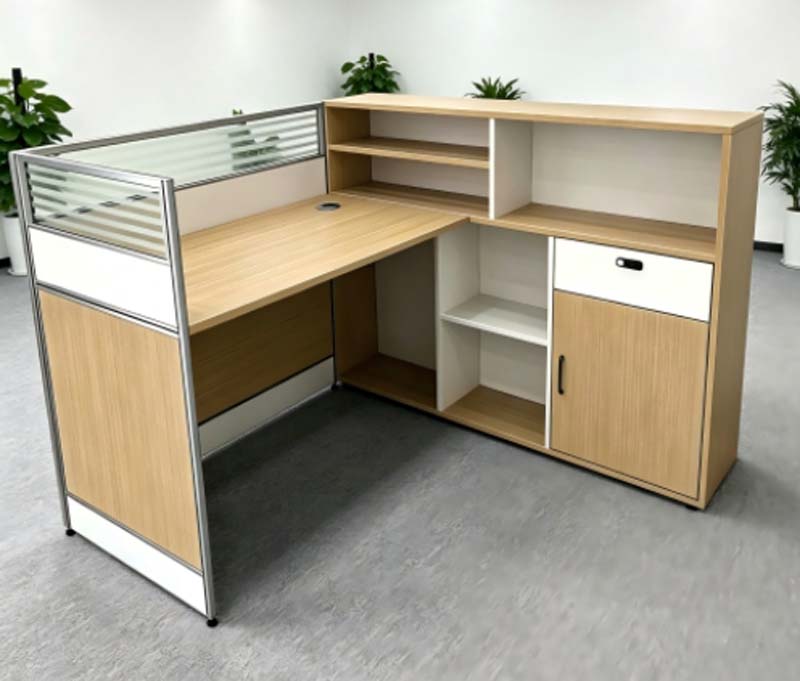

Product supplierLight Oak L-Shaped Office Cubicle Desk with Integrated Storage and Partition, 25mm thick E0 grade melamine laminated particleboard, 2mm rounded PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1600 × 1400 × 1200 mm | |
|---|---|---|
| Overall workstation dimensions (including partition and storage) | 1600 x 1400 x 1200 mm | |
| Work surface height above floor | 760 mm | |
| Main work surface size | 1600 x 700 mm | |
| Side return work surface size | 1000 x 500 mm | |
| Partition panel total height | 1200 mm | |
| Partition upper glass section height | 400 mm | |
| Partition lower privacy panel height | 800 mm | |
| Integrated storage cabinet total height | 1100 mm | |
| Knee well clearance height under work surface | 650 mm | |
| Knee well minimum width at opening | 700 mm | |
| Cable grommet diameter | 60 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface uniform static load capacity | 150 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 open/close cycles | |
| Work surface abrasion resistance rating | 2000 cycles | |
| Edge band impact resistance | 2 J | |
| Recommended number of users | 1 | |
| Product warranty period | 15 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface panel | 25mm thick E0 grade melamine laminated particleboard, 2mm rounded PVC edge banding | |
|---|---|---|
| Partition upper section | 5mm thick frosted tempered glass with 50% light transmittance, silver anodized aluminum frame | |
| Partition lower section | 18mm thick melamine laminated particleboard with white and light oak finish panels | |
| Storage cabinet carcass and shelves | 18mm thick melamine laminated particleboard, white interior finish, light oak exterior | |
| Drawer front and cabinet door | 18mm thick melamine laminated particleboard with light oak and white finish, black ABS handle and lock | |
| Partition support frame | 1.2mm thick silver anodized aluminum alloy extrusion with adjustable leveling glides | |
| Drawer slides | Three-section cold-rolled steel ball-bearing silent slides with zinc plating | |
| Door hinges | Cold-rolled steel concealed hydraulic soft-close hinges | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | 60mm circular desktop cable grommet with under-desk routing space for power and data cords | |
|---|---|---|
| Drawer storage | 1 lockable upper drawer on three-section full-extension slides for secure small item storage | |
| Cabinet storage | 1 hinged lower lockable cabinet door enclosing adjustable shelf space for personal items | |
| Open storage | 2 upper hutch open shelves and 2 lower under-return open shelves for frequently accessed supplies | |
| Workspace privacy | 1200mm tall partition blocks direct line of sight between adjacent seated users | |
| Leveling adjustment | 4 adjustable nylon glides at partition and cabinet base compensate for uneven office floors | |
| Integrated layout | Fixed non-detachable storage and return form a single rigid L-shaped workstation unit | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Provides individual dedicated work zones for staff without full wall construction | |
|---|---|---|
| Corporate employee workstations | Supports daily computer work, document processing and office supply storage for administrative staff | |
| Small business offices | All-in-one design eliminates need for separate desk, storage and partition purchases | |
| Government and public institution offices | Meets commercial durability and storage requirements for long-term daily use | |
| Temporary office fit-outs | Modular fixed structure supports rapid office layout setup with integrated functionality | |
| Call center and shared workspaces | Partitioned design reduces visual distraction while maximizing space efficiency |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements for commercial office desk design validation | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture safety requirements applicable to integrated cabinet and drawer units | |
| EN 13832:2004 | Office furniture storage units structural and dimensional performance requirements |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and durability standard for commercial office workstation testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard applicable to integrated cabinet and drawer components |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel desk structural performance testing | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required ≤0.124mg/m³ for indoor office use | |
| GB/T 4897.3-2015 | Particleboard specifications for furniture-grade panel material used in desk and cabinet construction |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel desk structural performance testing; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required ≤0.124mg/m³ for indoor office use; 3. GB/T 4897.3-2015: Particleboard specifications for furniture-grade panel material used in desk and cabinet construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
