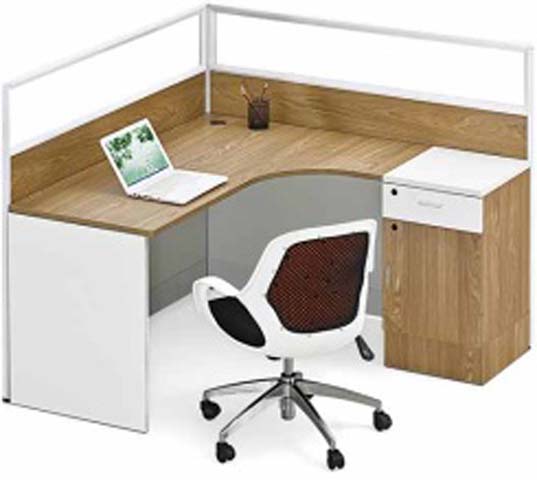

Single-Person Curved-Front Corner Cubicle Workstation with Attached Storage Pedestal (model CW-COR-1P-OAKWHT) is listed under L-Shaped Office Desk, with overall dimensions of 1440 × 1440 × 1200 mm and main material of Particle‑board (PB). Load capacity: 90 kg. Certifications: Two-tone,oak/white,finish,low,privacy,partitions,integrated,storage,pedestal,curved,knee,opening. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 1440 x 1440 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Work surface thickness | 25 mm | |
| Work surface depth at main work zone | 600 mm | |
| Partition panel height | 1200 mm | |
| Partition panel thickness | 32 mm | |
| PVC edge banding thickness | 2 mm | |
| Knee clearance height under work surface | 680 mm | |
| Knee clearance width at curved opening | 700 mm | |
| Attached pedestal dimensions | 400 x 600 x 700 mm | |
| Drawer interior depth | 500 mm | |
| Lower cabinet interior height | 550 mm | |
| Modesty panel height | 450 mm | |
| Left side panel thickness | 18 mm | |
| Cable grommet diameter | 60 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 90 kg | |
|---|---|---|
| Total unit net weight | 75 kg | |
| Adjustable foot leveling range | 10 mm | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | E1-grade particle board with thermally fused oak melamine laminate, 2mm PVC edge banding | |
|---|---|---|
| Partition frame | Powder-coated white steel tube frame | |
| Partition lower panels | Oak-grain melamine-faced particle board | |
| Modesty and pedestal panels | White thermally fused melamine particle board | |
| Hardware components | Zinc-plated steel drawer slides, steel hinges, adjustable plastic leveler feet | |
| Pedestal door and drawer fronts | 18mm thick white melamine-faced MDF |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage layout | 1 upper lockable drawer above 1 lower hinged door cabinet on right return | |
|---|---|---|
| Cable management | 1 desktop cable grommet with under-desk cable routing space | |
| Privacy configuration | Three-sided low desk-height partitions for seated visual privacy | |
| Leveling adjustment | Adjustable feet on base for stability on uneven flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff seating | Provides individual seated privacy for focused task work in shared office spaces | |
|---|---|---|
| Small home office corner installation | Compact footprint fits residential corner spaces for remote work setups |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to work surface and frame structure | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to attached pedestal and cabinet | |
| EN 13722:2004 | Office furniture cubicle partition performance and strength requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk products performance and safety standard, applicable to structural load testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Office storage units performance standard, applicable to attached pedestal drawers and cabinet | |
| ANSI/BIFMA X5.6-2020 | Office panel systems performance standard, applicable to partition panel structure |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel work surfaces and storage components | |
|---|---|---|
| GB/T 3327-2016 | Office desk performance test methods, applicable to structural stability and load testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1-grade panel materials |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel work surfaces and storage components; 2. GB/T 3327-2016: Office desk performance test methods, applicable to structural stability and load testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade panel materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
