Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product weight | 220 kg | |
|---|---|---|
| Worktop distributed load capacity | 80 kg per work surface | |
| Occupant capacity | 2 users | |
| Workstation module count | 2 work positions and 2 lockable storage units | |
| Panel fastener durability target | 50,000 assembly-related movement cycles | |
| Storage lock combinations | 3-digit numeric combination lock | |
| Leveling adjustment range | 15 mm | |
| Warranty target | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | 25 mm particleboard or MDF substrate with light oak melamine facing | |
|---|---|---|
| Worktop edge | PVC or ABS impact-resistant edge banding in matching light oak tone | |
| Storage cabinet carcass | Melamine-faced board in light oak and light gray laminate | |
| Modesty and lower divider panels | White or light-gray laminate board panels with framed edges | |
| Fabric screen | Dark gray fabric-wrapped acoustic/visual divider panel above desk level | |
| Upper translucent panel | Frosted acrylic or glass light-transmitting strip set in metal framing | |
| Partition posts | Silver anodized or powder-coated aluminum extrusions | |
| Desk legs | White powder-coated square steel tube legs with leveling feet | |
| Cabinet base and leveling system | Injection-molded or die-cast adjustable nylon/metal feet | |
| Locks | Black combination-lock housings with metal latch mechanism | |
| Internal hardware | Steel hinges, drawer slides, panel connectors and cam fasteners | |
| Metal surface treatment | Epoxy-polyester powder coating on steel legs and support rails |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

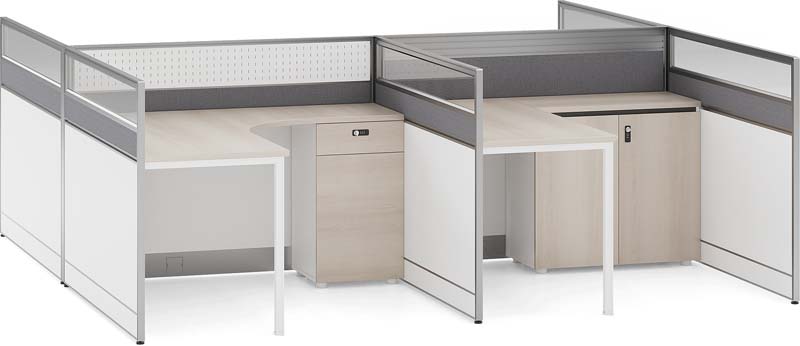

| Workstation configuration | Mirrored two-person F-shaped layout with each user receiving a main desk and a return surface | |
|---|---|---|
| Privacy division | Solid lower modesty panels plus fabric and translucent upper screens separate adjacent and opposite users | |
| Integrated personal storage | Each position includes a top combination-lock drawer and a lower vertical cabinet compartment | |
| Locking operation | 3-digit combination lock secures the upper drawer and coordinates with the cabinet door | |
| Cable routing | Cable-access plate at rear lower modesty panel allows power and data cabling to enter under the work surface | |
| Reconfigurable screen connection | Aluminum posts and horizontal rails connect panels with mechanical brackets for modular relocation | |
| Floor leveling | Threaded feet adjust independently on partitions, cabinets and desk legs to compensate for floor variation | |
| Knee-space layout | Storage is placed on the inner return, preserving a 700 mm wide open knee bay at each main seat position | |
| Under-desk privacy | Solid modesty panels block direct sight lines into the seated leg and storage area | |
| Power/data expansion provision | Partition rails can accept desk-mounted power modules or horizontal cable troughs at 400 mm above worktop | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 2400 x 720 x 180 mm for the largest panel carton | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Creates two defined work positions in one 2800 x 2800 mm footprint, suitable for dense but screened seating | |
|---|---|---|
| Administrative team area | Combines writing space, return surface and lockable personal storage for daily paperwork and laptop tasks | |
| Finance or HR shared workspace | Combination-lock storage supports confidential documents when local key-control policy is confirmed by the supplier | |
| Call-center cluster expansion | Post-and-rail screens can be repeated into rows while retaining user-facing privacy panels | |
| Project-based office reconfiguration | Flat-panel construction supports relocation of screens, tops and storage between floor layouts | |
| Small branch office | Two employees can share one compact installation without separate pedestals or freestanding dividers |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
