Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Side Rail Thickness | 40 mm | |
|---|---|---|
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user capacity | 1 person | |
|---|---|---|
| Worktop distributed static load | 80 kg | |
| Bed static load | 150 kg | |
| Folding bed open/close cycles | 10000 cycles | |
| Caster rolling durability | 20 km | |
| Caster load per wheel | 40 kg | |
| Mattress foam density | 28 kg/m3 | |
| Mattress foam resilience | 35% | |
| Seated workstation net weight | 95 kg | |
| Bed pull-out operating force | 120 N |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 25 mm engineered wood board with light oak-look melamine surface and sealed edges | |
|---|---|---|
| Privacy panel face | Gray woven fabric over composite panel with silver-toned edge frame | |
| Lower modesty panels | White and light gray engineered board panels with hard laminated faces | |
| Storage door | Light oak-look hinged board door concealing the folded bed compartment | |
| Desk support frame | White powder-coated square steel legs and horizontal rails | |
| Folding bed frame | White powder-coated welded steel tube frame with transverse support bars | |
| Mattress | Gray segmented polyurethane pad wrapped in woven textile cover | |
| Bed base support | Steel slat/cross-bar platform with folding drop legs | |
| Casters | Black polyurethane twin-wheel swivel casters with steel mounting brackets | |
| Cable grommet | Round plastic cable port with removable cover at the rear work surface | |
| Edge and hardware | PVC edge banding, steel hinges, bed latches and connector bolts | |
| Panel frame extrusion | Aluminum or steel rectangular screen frame with anodized or powder-coated light finish |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

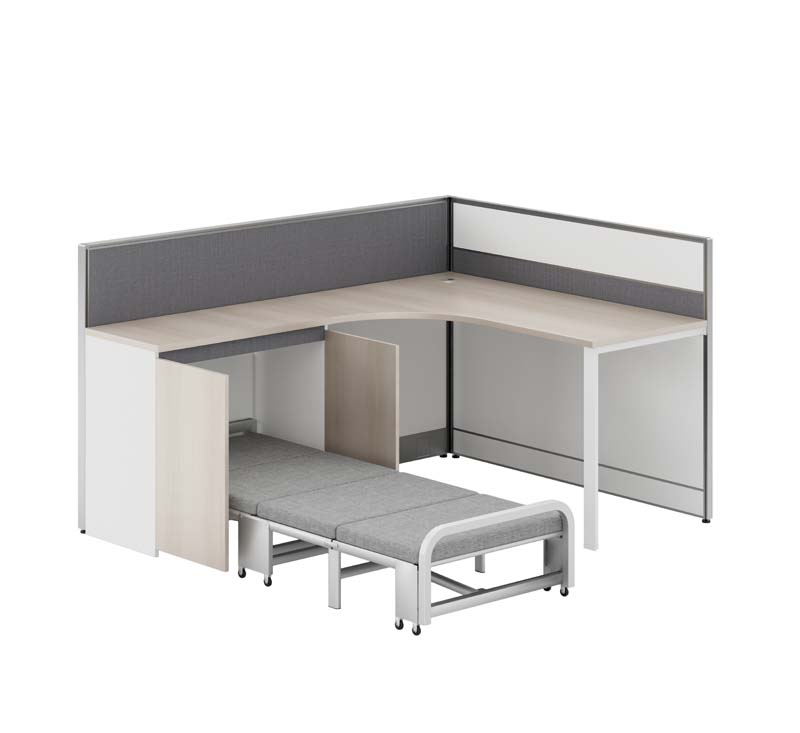

| Pull-out sleeping bed | Three-section caster bed slides horizontally from the left under-desk cabinet for nap use | |
|---|---|---|
| Folding bed deployment | Mattress sections unfold longitudinally while drop legs support the platform on the floor | |
| Bed storage | Folded bed occupies a dedicated cabinet bay and closes behind the matching wood door | |
| Caster mobility | Four corner swivel casters and intermediate caster supports allow one-person extraction and parking | |
| Seated work layout | Curved inner cutout gives one user central leg room between the two desktop wings | |
| Privacy screening | Two-sided rear and side panels block sightlines while leaving the front access open | |
| Cable management | 60 mm rear grommet routes monitor and power cables below the work surface | |
| Under-desk storage | Left cabinet hides bedding when folded and provides a vertical side enclosure | |
| Bed retention | Folded frame is captured by cabinet sides and uses a latch or stop to prevent unintended rollout | |
| Floor leveling | Visible small glide feet under workstation posts provide minor height adjustment on carpet or tile | |
| Panel modularity | Framed screens connect at the 90-degree corner and can align with adjacent workstation runs | |
| Bed capacity limitation | Design is intended for short office rest periods, not permanent residential bedding |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Main carton dimensions | 1680 x 660 x 180 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office nap station | Suitable where employees need daytime rest without a separate dormitory | |
|---|---|---|
| Staff workstation in 24-hour operations | Fits control rooms, medical offices and duty rooms requiring short rest breaks | |
| Single-person cubicle layout | Provides privacy panels, L-shaped desktop and sleep function within one compact footprint | |
| Projects requiring space efficiency | Replaces separate desk, screen and folding bed in dense office floor plans | |
| Government or enterprise staff areas | Suitable for procurement tenders requiring durable panels, cable routing and hidden bedding | |
| Hybrid office rest corner | Can be placed in quiet zones where occasional overnight work is possible | |
| Recommended floor surface | Use on level tile, wood or low-pile carpet with caster access clearance in front |
EU Market Access Requirements* EN Standards
| EN 527-1 office desks | Applies to workstation dimensions, safety and structural requirements for office desk use. | |
|---|---|---|
| EN 16139 non-domestic seating strength | May apply to occasional office nap bed loading if treated as non-domestic lounge support. | |
| EN 1022 furniture stability | Applies to tipping assessment of the desk assembly and unfolded bed. |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5 desk products | Applies to strength, durability and stability acceptance testing of the work surface. | |
|---|---|---|
| ANSI/BIFMA X5.9 storage units | Applies to the integrated cabinet, door and retention enclosure. | |
| ANSI/BIFMA e3 furniture sustainability | Optional framework for panel adhesives, emissions and material documentation. |
Standards applicable to China-market projects
| GB/T 3324-2024 dimensional and structural inspection | Applies to wooden office furniture dimensions, tolerances, stability and workmanship inspection. | |
|---|---|---|
| GB/T 3325-2017 metal furniture requirements | Applies to steel bed and desk frame strength, coating and structural inspection. | |
| GB 18580-2017 formaldehyde emission | Applies to formaldehyde emission verification of wood-based panels before ENF or E1 claims. | |
| GB/T 10357 furniture mechanical tests | Applies to desk and bed strength, durability and stability test protocols. |
This product must meet the following technical requirements: 1. GB/T 3324-2024 dimensional and structural inspection: Applies to wooden office furniture dimensions, tolerances, stability and workmanship inspection.; 2. GB/T 3325-2017 metal furniture requirements: Applies to steel bed and desk frame strength, coating and structural inspection.; 3. GB 18580-2017 formaldehyde emission: Applies to formaldehyde emission verification of wood-based panels before ENF or E1 claims.; 4. GB/T 10357 furniture mechanical tests: Applies to desk and bed strength, durability and stability test protocols.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
