Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall system footprint | 2400 x 1200 x 1100 mm | |
|---|---|---|
| Individual work surface | 1200 x 600 mm per user | |
| Work surface height | 750 mm | |
| Work surface thickness | 25 mm | |
| Privacy panel overall height | 1100 mm | |
| Upper louvered screen height | 350 mm | |
| Lower solid panel height | 750 mm | |
| Panel assembly thickness | 41 mm | |
| Knee opening width | 1050 mm per seat | |
| Knee clearance depth | 600 mm per seat | |
| Under-desk knee clearance height | 675 mm | |
| Cable grommet opening | 60 mm diameter | |
| Modesty panel height | 450 mm | |
| Square support post | 45 x 45 mm section | |
| Leveling foot adjustment | 20 mm travel | |
| Finished Top Thickness | 50 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 4 users | |
|---|---|---|
| Static work surface load | 113 kg per desk | |
| System net weight | 169 kg | |
| Cable tray capacity | 5 kg per user | |
| Leveling floor tolerance | 20 mm total compensation | |
| Panel tackable load | 1 kg per tacking point | |
| Suggested occupant weight limit | 150 kg per seated user | |
| Edge impact and normal desk load design | 113 kg distributed top load | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm woodgrain thermally fused laminate or MFC board with particleboard core | |
|---|---|---|
| Edge treatment | 2 mm PVC edge banding with sealed corners | |
| Lower privacy panel | Light gray melamine-faced board in dark metal perimeter frame | |
| Upper privacy screen | Horizontal louvered translucent insert with dark framed rails | |
| Desktop cable port | White oval plastic grommet with hinged cover | |
| Support framework | Powder-coated steel square posts and connector rails | |
| Modesty panel | Board panel with dark horizontal rail and gray lower infill | |
| Base glides | Steel threaded stem with black nylon non-marring pad | |
| Fasteners and connectors | Zinc-plated steel brackets, cam bolts and panel joiners | |
| Panel infill option | Fabric-faced tackable board can substitute for solid infill | |
| Frame surface | Matte gray powder coating, 1.2 mm metal wall thickness | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

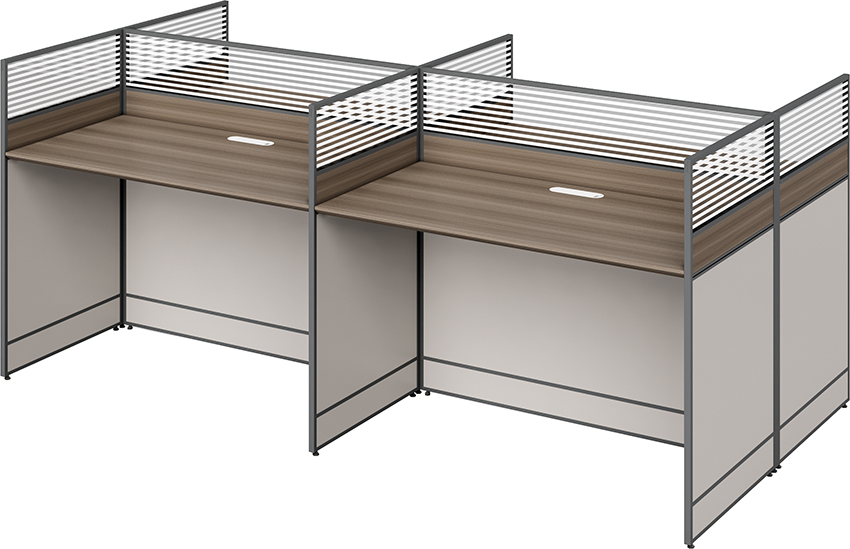

| Workstation layout | Four independent seats arranged as two back-to-back pairs with central and end dividers | |
|---|---|---|
| Privacy separation | Solid lower panels block seated sightlines while 350 mm louvered tops transmit light | |
| Cable routing | Each 60 mm desk grommet feeds cables toward the central partition and under-desk pathway | |
| Under-desk access | Open 600 mm deep knee bay allows task chair entry without fixed drawers | |
| Floor leveling | Threaded glides at each panel foot adjust up to 20 mm to stabilize uneven floors | |
| Modular expansion | Panel posts and connector brackets permit additional workstations to join in rows or clusters | |
| Reversible seat orientation | Rectangular tops can be assigned left or right within the 2-by-2 cluster during installation | |
| Storage compatibility | 1050 mm knee width accepts a 400 mm mobile pedestal beside each user | |
| Cable tray integration | Central divider cavity supports a 100 mm wide under-desk tray or raceway cover | |
| Assembly method | Panels, tops, rails and feet ship flat and assemble with bolted connectors and cam hardware | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 6 flat-packed cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Creates four defined seats while retaining visual light through upper louvers | |
|---|---|---|
| Call center or shared service center | High-density 2-by-2 layout gives each agent cable access and separate modesty space | |
| Administration workspace | 750 mm desk height and 600 mm depth support computer, phone and document tasks | |
| Project team cluster | Modular posts allow the quad to connect with additional bays or storage units | |
| Training and staffing area | Durable laminate tops and wipeable lower panels suit rotating users and daily cleaning | |
| Small office fit-out | Rectangular 2400 x 1200 mm footprint fits four users without included fixed cabinets | |
| Reception back-office area | Privacy screens reduce visual distraction while open knee bays retain chair movement |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks: safety, strength and durability requirements | |
|---|---|---|
| EN 527-2:2014 | Office work tables and desks: dimensional safety and strength test methods | |
| EN 1023-1:1997 | Office screens: dimensional and safety requirements for divider panels | |
| EN 1023-2:2000 | Office screens: mechanical safety and structural test methods | |
| EN 13986:2004+A1:2015 | Wood-based panel requirements applicable to declared board performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety, durability and structural performance test standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage devices standard if mobile pedestals are added later | |
| ANSI/BIFMA G1-2013 | Furniture ergonomics guideline for 750 mm seated work-surface height | |
| ANSI/BIFMA X5.6-2022 | Panel systems standard applicable to modular partitions and connectors | |
| BIFMA E3-2019e1 | Furniture sustainability and material-attribute standard if LEAN procurement reporting is required |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to board tops and panel infills | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture technical requirements, applicable to steel posts, rails and leveling feet | |
| GB/T 3326-2016 | Furniture dimensional coordination, applicable to desk height and seated clearance verification | |
| GB 18580-2017 | Formaldehyde emission requirement for wood-based panels, applicable to MFC or particleboard components | |
| GB/T 10357.5-2011 | Furniture surfacePhysical and chemicaltest method, applicable to laminate wear, stain and impact acceptance | |
| GB/T 10357.1-2013 | Mechanical stability test method, applicable to panel workstation stability checks |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to board tops and panel infills; 2. GB/T 3325-2017: Metal furniture technical requirements, applicable to steel posts, rails and leveling feet; 3. GB/T 3326-2016: Furniture dimensional coordination, applicable to desk height and seated clearance verification; 4. GB 18580-2017: Formaldehyde emission requirement for wood-based panels, applicable to MFC or particleboard components; 5. GB/T 10357.5-2011: Furniture surfacePhysical and chemicaltest method, applicable to laminate wear, stain and impact acceptance; 6. GB/T 10357.1-2013: Mechanical stability test method, applicable to panel workstation stability checks; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
