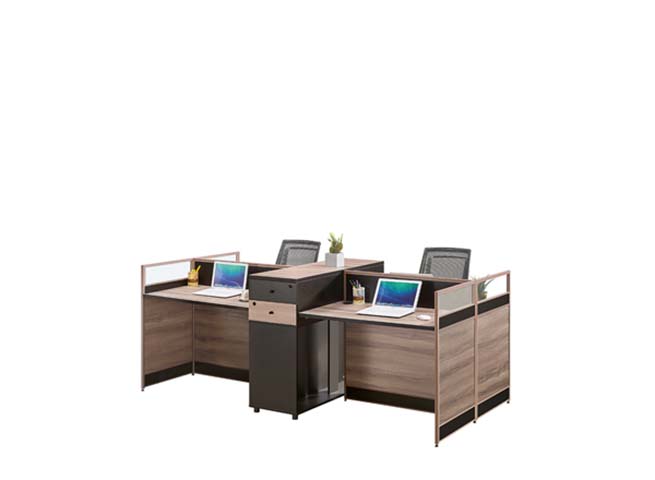

2-Person Cross-Shaped Office Cubicle Workstation with Central Drawer Pedestal (model WS-CR2-1420-WG-BK) is listed under L-Shaped Office Desk. Dimensions: 2820 × 1420 × 1100 mm. Materials: 25mm melamine-faced chipboard (MFC) with walnut wood grain finish, 2mm PVC edge banding. Load capacity: 90 kg. Product Features: Commercial,furniture,modular,partitioned,workstation,wood,grain,finish,black,frame,integrated,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | aibi furniture | Model | WS-CR2-1420-WG-BK |
| Overall dimensions (W × D × H) | 2820 × 1420 × 1100 mm | Overall footprint (WxDxH) | 2820 x 1420 x 1100 mm |
| Work surface height | 750 mm | Individual work surface size (per seat) | 1200 x 600 mm |
| Privacy divider total height | 1100 mm | Under-desk knee clearance height | 650 mm |
| Under-desk knee clearance depth | 550 mm | Central storage pedestal dimensions (WxDxH) | 400 x 600 x 1100 mm |
| Desktop panel thickness | 25 mm | Divider frame tube thickness | 1.2 mm |
| Modesty panel height | 400 mm | Cable grommet diameter | 60 mm |
| Adjustable foot height range | 15 mm | Primary Component Thickness | 40 mm according to load-bearing role |
| Hardware / Moving-part Clearance | 5 mm operating clearance | Per work surface static load capacity | 90 kg |
| Total unit net weight | 60 kg | Recommended maximum user count | 2 |
| Surface scratch resistance rating | 2000 cycles | Structure service life (daily commercial use) | 10 years |
| Warranty period (commercial use) | 3 years | Reference Static Load | 150 kg depending on category |
| Moving-part Durability Reference | Acceptance target 50000 cycles | Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
| Work surface | 25mm melamine-faced chipboard (MFC) with walnut wood grain finish, 2mm PVC edge banding | Support frame | 1.2mm thick black powder-coated square steel tube |
| Upper privacy panels | Semi-transparent frosted acrylic set in bronze-tone metal frame | Lower modesty panels | Matching 18mm wood grain MFC panel with black bottom trim |
| Central pedestal carcass | 18mm matte black melamine-faced MFC with wood grain drawer fronts | Drawer slides | Cold-rolled steel three-section full-extension ball bearing slides |
| Drawer locks | Zinc alloy keyed cam locks, one key per lock core | Adjustable feet | Nylon base with steel threaded stud for height adjustment |
| Edge banding | 2mm thick impact-resistant PVC edge trim on all exposed panel edges | Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
| Reference Finish / Color Count | Recommended 6finish options | Seated visual privacy | 1100mm high dividers block direct line of sight between adjacent seated users |
| Central lockable storage | Two key-locked drawers per central pedestal for shared office supply and file storage | Cable management | 60mm desktop cable grommets route power and data cords from work surface to floor |
| Floor leveling | Adjustable nylon feet compensate for uneven floor surfaces to keep work surface stable | Modular assembly | Knock-down panel construction allows reconfiguration or relocation of workstation segments |
| Under-desk modesty coverage | Solid lower panels block view of users' legs from adjacent walkways and workstations | Smooth drawer operation | Three-section ball-bearing slides allow full drawer extension without binding |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable | Largest shipping carton dimensions | 1450 x 750 x 120 mm |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Packaging Volume | 0.8 m³/set | Reference Packaged Gross Weight | 120 kg/set |
| Open plan office staff areas | Dedicated two-seat cubicle layout provides individual work zones for administrative staff | Small team work zones | Compact cross footprint fits two employees without requiring large dedicated office space |
| Corporate back office departments | Lockable central storage supports secure filing for finance, HR, and operations teams | Call center and shared workspace | Privacy dividers reduce distraction between adjacent agents during phone and screen work |
| Temporary office fit-outs | Modular knock-down design allows fast deployment and easy reconfiguration for short-term leases | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2820 × 1420 × 1100 mm | |
|---|---|---|
| Overall footprint (WxDxH) | 2820 x 1420 x 1100 mm | |
| Work surface height | 750 mm | |
| Individual work surface size (per seat) | 1200 x 600 mm | |
| Privacy divider total height | 1100 mm | |
| Under-desk knee clearance height | 650 mm | |
| Under-desk knee clearance depth | 550 mm | |
| Central storage pedestal dimensions (WxDxH) | 400 x 600 x 1100 mm | |
| Desktop panel thickness | 25 mm | |
| Divider frame tube thickness | 1.2 mm | |
| Modesty panel height | 400 mm | |
| Cable grommet diameter | 60 mm | |
| Adjustable foot height range | 15 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per work surface static load capacity | 90 kg | |
|---|---|---|
| Total unit net weight | 60 kg | |
| Recommended maximum user count | 2 | |
| Surface scratch resistance rating | 2000 cycles | |
| Structure service life (daily commercial use) | 10 years | |
| Warranty period (commercial use) | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm melamine-faced chipboard (MFC) with walnut wood grain finish, 2mm PVC edge banding | |
|---|---|---|
| Support frame | 1.2mm thick black powder-coated square steel tube | |
| Upper privacy panels | Semi-transparent frosted acrylic set in bronze-tone metal frame | |
| Lower modesty panels | Matching 18mm wood grain MFC panel with black bottom trim | |
| Central pedestal carcass | 18mm matte black melamine-faced MFC with wood grain drawer fronts | |
| Drawer slides | Cold-rolled steel three-section full-extension ball bearing slides | |
| Drawer locks | Zinc alloy keyed cam locks, one key per lock core | |
| Adjustable feet | Nylon base with steel threaded stud for height adjustment | |
| Edge banding | 2mm thick impact-resistant PVC edge trim on all exposed panel edges | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seated visual privacy | 1100mm high dividers block direct line of sight between adjacent seated users | |
|---|---|---|
| Central lockable storage | Two key-locked drawers per central pedestal for shared office supply and file storage | |
| Cable management | 60mm desktop cable grommets route power and data cords from work surface to floor | |
| Floor leveling | Adjustable nylon feet compensate for uneven floor surfaces to keep work surface stable | |
| Modular assembly | Knock-down panel construction allows reconfiguration or relocation of workstation segments | |
| Under-desk modesty coverage | Solid lower panels block view of users' legs from adjacent walkways and workstations | |
| Smooth drawer operation | Three-section ball-bearing slides allow full drawer extension without binding | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest shipping carton dimensions | 1450 x 750 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff areas | Dedicated two-seat cubicle layout provides individual work zones for administrative staff | |
|---|---|---|
| Small team work zones | Compact cross footprint fits two employees without requiring large dedicated office space | |
| Corporate back office departments | Lockable central storage supports secure filing for finance, HR, and operations teams | |
| Call center and shared workspace | Privacy dividers reduce distraction between adjacent agents during phone and screen work | |
| Temporary office fit-outs | Modular knock-down design allows fast deployment and easy reconfiguration for short-term leases |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables - Part 1: Dimensions, applies to work surface height and clearance requirements | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office worktables - Part 2: Mechanical safety requirements, applies to structural stability | |
| EN 13722:2004 | Office furniture - Storage units, applies to central pedestal drawer performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for office desks, applies to desk load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Standard for storage units, applies to central pedestal drawer cycle and load testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel desk construction | |
|---|---|---|
| GB/T 3327-2016 | Performance test methods for office desks and tables, applicable for stability and load testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel desk construction; 2. GB/T 3327-2016: Performance test methods for office desks and tables, applicable for stability and load testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
