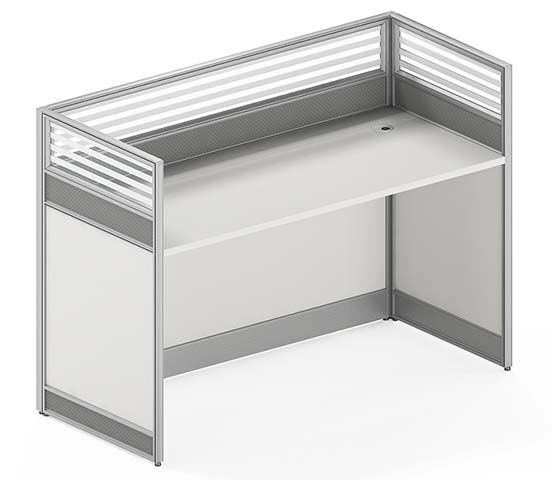

Single-Seat Modular Office Cubicle Workstation (model WS-CUB-1P-1206) is listed under L-Shaped Office Desk, with overall dimensions of 1200 × 600 × 1100 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modular,cubicle,structure,single-seat,workstation,integrated,cable,grommet,three-sided,partition. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 100 kg | |
|---|---|---|
| Partition panel impact resistance | 10 kg | |
| Net product weight | 45 kg | |
| Seating capacity | 1 person | |
| Cable grommet cable pass-through capacity | 8 cables | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 25mm thick particleboard with light gray matte melamine laminate | |
|---|---|---|
| Partition frame | Anodized silver extruded aluminum alloy | |
| Upper partition panels | Horizontal louvered aluminum slats with semi-open gaps | |
| Mid partition band | Dark gray acoustic fabric wrapped over medium density fiberboard core | |
| Lower solid partition panels | Light gray rigid laminate composite panel | |
| Leveling feet | Reinforced nylon adjustable glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Pre-installed round desk grommet routes cables from desktop to under-desk space | |
|---|---|---|
| Semi-private screening | Three-sided partition blocks direct line of sight between adjacent seated users | |
| Modular connection | Aluminum frame profiles accept connecting brackets to link to adjacent workstations | |
| Leveling adjustment | Base glides adjust up to 10mm to compensate for uneven finished floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office layouts | Provides individual semi-private work zones to reduce cross-distraction in shared workspaces | |
|---|---|---|
| Call center and administrative work areas | Compact footprint fits high-density seating while maintaining dedicated work surface per user |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
