PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2840 × 2840 × 1100 mm
Overall cluster dimensions	2840 x 2840 x 1100 mm
Work surface height	750 mm
Per-seat work surface width	1200 mm
Per-seat work surface depth	600 mm
Partition panel thickness	40 mm
Desktop panel thickness	30 mm
PVC edge banding thickness	2.0 mm
Knee clearance height under desk	650 mm
Knee clearance width per seat	700 mm
Aluminum partition frame wall thickness	1.2 mm
Cable grommet diameter	60 mm
Steel support leg diameter	50 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	280 kg
Desktop static uniform load capacity	100 kg per seat
Drawer slide static load per drawer	25 kg
Drawer slide cycle durability	50000 open/close cycles
Partition screen stability lateral load	80 kg
Surface abrasion resistance	2000 revolutions
Recommended user capacity	4 people
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface core	E1-grade particle board
Work surface finish	Melamine laminate
Edge banding	2.0mm thick PVC
Partition frame	Anodized aluminum alloy
Upper partition panel	Perforated steel panel with navy frame
Lower partition modesty panel	Navy blue laminated particle board
Support legs	Powder-coated round steel tube
Drawer pedestals	Laminated particle board with navy drawer fronts
Hardware components	Commercial grade steel locks, slides and connectors
CPU storage shelf	Laminated particle board
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy partition design	1100mm total height with perforated upper section
Cable management system	60mm desktop grommets + under-partition raceway
Per-seat storage	3-drawer integrated pedestal per position
CPU storage provision	Fixed lower shelf under rear desk edge per seat
Leveling adjustment	Threaded leveling feet on all support legs
Modular connection system	Aluminum frame cam-lock connectors
Curved user edge	Concave rounded front edge per seat
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff areas	Ideal for administrative, finance or operations teams requiring individual work zones
Small business office layouts	Compact 4-seat footprint maximizes seating density in limited floor space
Call center or shared workspace	Partition height balances acoustic privacy and team visibility for supervisors
Permanent office installation	Modular frame supports long-term fixed placement with reconfiguration option
Standard task chair pairing	Designed for use with standard caster-base ergonomic office task chairs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2019	Office work tables safety and strength requirements, applicable to desk structure
EN 1335-1:2020	Office furniture work seating dimensions, reference for matching chair clearance
EN 1022:2018	Furniture seating stability test method, reference for chair compatibility

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance and safety standard, applicable to load testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to drawer pedestal durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel structure
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to board materials
GB/T 3327-2016	Office desk performance test methods, applicable to structural load verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel structure;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to board materials;
3. GB/T 3327-2016: Office desk performance test methods, applicable to structural load verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-2840-NW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-2840-NW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-2840-NWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

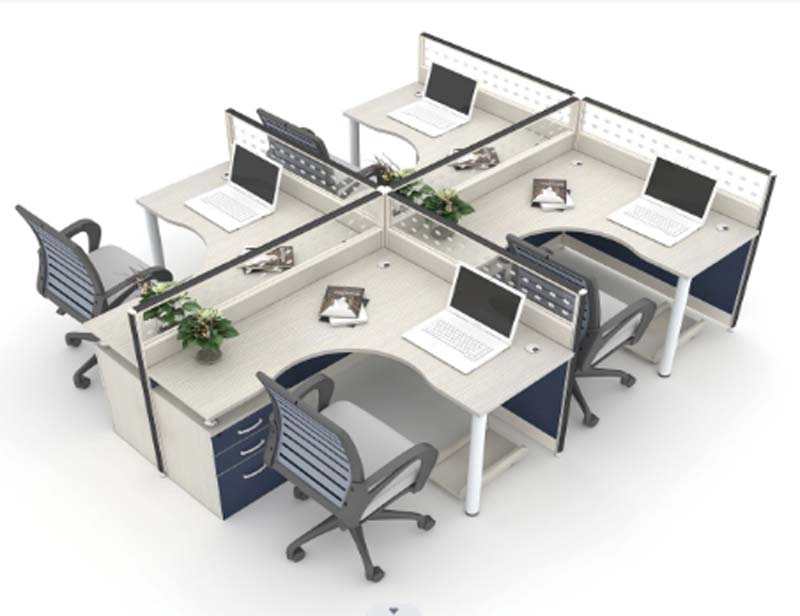

The 4-Person Cross-Shaped Office Cubicle Workstation with Partitions and Drawer Pedestals is a structured, modular seating solution built for balanced privacy and collaborative access across shared work environments. Arranged in a symmetrical cross layout, the cluster positions four individual workstations facing outward from a central partition core, creating distinct, dedicated work zones for each user without wasting floor space. Each seat features a concave rounded front desktop edge for comfortable user positioning, paired with two-tone partitions that combine an upper perforated steel panel set in a navy anodized aluminum frame and a lower navy blue laminated modesty panel, delivering a clean, professional visual profile suited to modern workspaces.
Constructed for consistent commercial use, the workstation uses E1-grade melamine particle board for all work surfaces and storage components, framed with durable anodized aluminum alloy for partition structures and supported by powder-coated round steel tube legs. All exposed panel edges are finished with thick PVC edge banding to resist daily wear, while commercial-grade steel hardware including locks, drawer slides and cam-lock connectors secures the modular frame for stable long-term placement. Threaded leveling feet on every support leg compensate for uneven floor surfaces during installation.
Each position is equipped with practical, user-focused features: an integrated 3-drawer pedestal for personal document and supply storage, a fixed lower shelf under the rear desk edge for CPU placement, and a coordinated cable management system that combines desktop grommets with under-partition raceways to keep power and data cords organized and out of sight. The partition height balances seated acoustic privacy with clear sightlines across the workspace, allowing natural team interaction while reducing cross-seat visual distraction. The work surfaces are sized to accommodate standard task activities, with ample under-desk knee clearance to pair seamlessly with standard caster-base ergonomic office task chairs.
This workstation is well suited for open-plan office staff areas housing administrative, finance or operations teams, compact small business offices where efficient seating density is a priority, and call centers or shared workspaces where supervisors require clear visibility across teams without eliminating individual user privacy. Its modular connection system supports both permanent fixed installation and future layout reconfiguration as team needs shift.
For procurement planning, note that each full set ships across multiple cartons, with an assembly time of 40 minutes per set for trained installers. Buyers should account for total floor space required for the full cluster footprint during space planning, and confirm compatibility with existing ergonomic task chair specifications prior to bulk purchase to ensure consistent user comfort across all positions. The unbranded model offers flexible integration with a range of existing office decor palettes thanks to its neutral work surface finish and navy partition accents.
