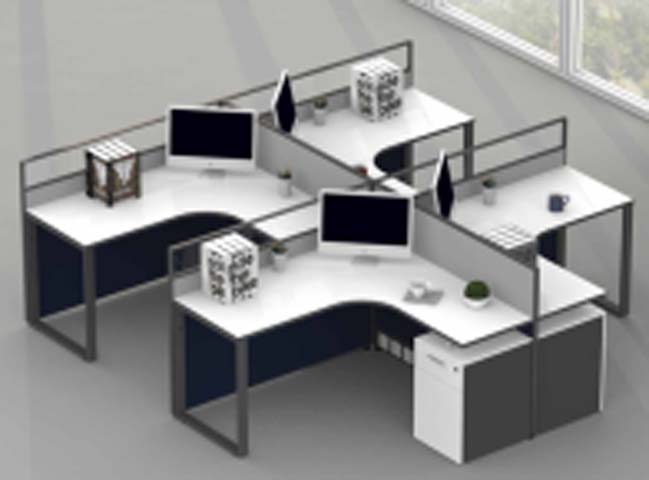

4-Person Curved L-Shape Modular Office Cubicle Workstation with Raised Side Shelves (model OFW-CUB-L4-1200-WD) is listed under L-Shaped Office Desk, with overall dimensions of 3276 × 3276 × 1346 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: modular,commercial,4-person,cluster,curved,L-shaped,partial-height,privacy,dividers,cantilever,side,shelves,under-desk,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled cluster footprint | 3276 x 3276 x 1346 mm | |
|---|---|---|
| Per-station primary work surface width | 1524 mm | |
| Per-station primary work surface depth | 610 mm | |
| Per-station return work surface width | 914 mm | |
| Work surface height above floor | 750 mm | |
| Privacy divider height above floor | 1346 mm | |
| Work surface panel thickness | 25 mm | |
| Secondary structural panel thickness | 16 mm | |
| Raised cantilever side shelf depth | 300 mm | |
| Under-desk seated knee clearance height | 650 mm | |
| Under-desk storage cabinet height | 600 mm | |
| Under-desk storage cabinet width | 400 mm | |
| Privacy divider panel thickness | 25 mm | |
| Cantilever metal leg frame tubing thickness | 1.5 mm | |
| Raised shelf height above main work surface | 250 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-work-surface static load capacity | 91 kg | |
|---|---|---|
| Per-station storage cabinet drawer static load | 25 kg | |
| Recommended user capacity | 4 people | |
| Work surface scratch resistance rating | 2000 cycles | |
| Frame static load safety factor | 2.5:1 | |
| Product net weight maximum | 380 kg | |
| Standard commercial warranty period | 10 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main work surface | 25 mm E1-grade particleboard core with white thermally fused melamine laminate, 2 mm PVC edge banding | |
|---|---|---|
| Structural frame and legs | 1.5 mm thick rectangular steel tubing with dark grey powder-coated finish, welded and bolted connectors | |
| Privacy divider panels | 16 mm particleboard core upholstered with dark blue woven polyester fabric, steel frame edging | |
| Raised cantilever side shelves | 25 mm white melamine laminate matching work surface, supported by steel brackets attached to divider frame | |
| Under-desk storage cabinets | 16 mm melamine-faced particleboard with white and dark grey two-tone finish, steel drawer slides, integrated key lock | |
| Cable management components | ABS plastic cable grommets and steel raceway channels integrated into divider frames |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Integrated frame raceways with desk surface grommets to route power and data cables off work surfaces | |
|---|---|---|
| Storage function | Per-station under-desk lockable cabinet units with file and supply storage drawers, positioned at workstation ends | |
| Modular expandability | Bolt-together connector system supports reconfiguration into 2-person, 6-person, or custom linear clusters | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan corporate office spaces | Designed for collaborative team zones with partial privacy between adjacent workstations | |
|---|---|---|
| Shared administrative and staff work areas | Suits 8-hour daily single-shift commercial use with durable surfaces for regular office equipment |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to desk structure and load ratings | |
|---|---|---|
| EN 1335-1:2020 | Office furniture dimensions for work surfaces, applicable to ergonomic height and clearance design | |
| EN 1022:2018 | Furniture seating and table stability testing, applicable to workstation anti-tip verification |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to work surface load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to under-desk cabinet load and drawer testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to work surface and cabinet components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame and leg structures | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1-grade core materials | |
| GB/T 24821-2009 | Office desk performance test methods, applicable to work surface load and stability testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to work surface and cabinet components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame and leg structures; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade core materials; 4. GB/T 24821-2009: Office desk performance test methods, applicable to work surface load and stability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
