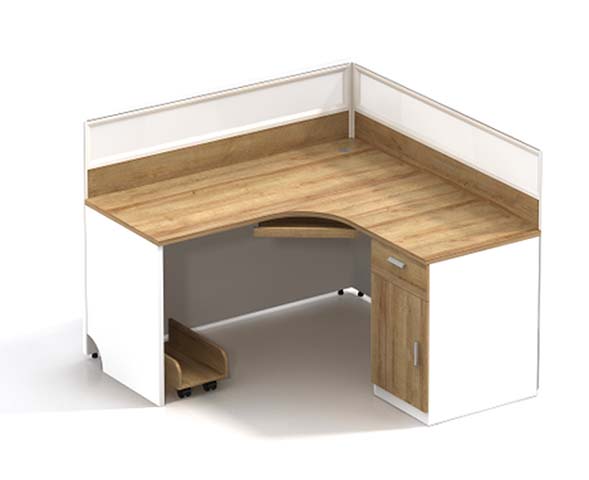

Single-Person L-Shaped Corner Office Workstation with Privacy Partition, Keyboard Tray and Storage (model CORNER-WS-1630-OAK-WHT) is listed under L-Shaped Office Desk, with overall dimensions of 1630 × 1630 × 1200 mm and main material of Particle‑board (PB). Load capacity: 150 kg. Certifications: light,oak/white,two-tone,L-shaped,cubicle,layout,built-in,under-desk,storage,pull-out,keyboard,tray,rolling,CPU,stand,integrated,privacy,dividers,cable,grommet. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint dimensions | 1630 x 1630 x 1200 mm | |
|---|---|---|
| Standard desktop working height | 750 mm | |
| Desktop panel thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Privacy partition total height | 450 mm above desk surface | |
| Partition panel thickness | 40 mm | |
| Seated knee clearance height under desk | 680 mm | |
| Knee recess width at curved central cutout | 800 mm | |
| Pull-out keyboard tray floor clearance | 560 mm | |
| Keyboard tray usable dimensions | 550 x 300 mm | |
| Right-side storage pedestal dimensions | 450 x 550 x 680 mm | |
| Rolling CPU caddy usable dimensions | 300 x 500 x 200 mm | |
| Cable grommet diameter | 60 mm | |
| Side modesty panel thickness | 18 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop uniform static load capacity | 150 kg | |
|---|---|---|
| Surface abrasion resistance (Taber test) | 500 cycles | |
| Metal hardware salt spray corrosion resistance | 500 hours | |
| Product net weight | 55 kg | |
| Recommended user weight capacity | 136 kg | |
| Free replacement warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop work surface | 25mm E1-grade melamine-faced particleboard | |
|---|---|---|
| Privacy partition frame | 1.2mm thick extruded aluminum alloy | |
| Partition panel core | 18mm medium density fiberboard with white matte laminate | |
| Storage pedestal and side panels | 18mm E1-grade melamine-faced particleboard | |
| Support frame and base connectors | 1.5mm thick cold-rolled steel with powder coating | |
| Drawer and cabinet pulls | Brushed aluminum alloy handles |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Pull-out keyboard tray operation | Undermount ball-bearing slide tray extends 280mm forward | |
|---|---|---|
| Mobile CPU caddy function | Rolling caddy with 4 swivel casters slides out from left under-desk bay | |
| Storage pedestal organization | Upper shallow drawer for office supplies, lower cabinet with adjustable shelf | |
| Cable management system | Rear-corner cable grommet connects to partition internal cable channel |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office cubicle zones | Provides individual partitioned workspaces with dedicated storage and cable management | |
|---|---|---|
| Small business private offices | Fits compact corner layouts to maximize floor space with integrated storage |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for commercial desk applications | |
|---|---|---|
| EN 527-2:2016 | Office work tables, safety, strength and durability requirements for adjustable components | |
| EN 13722:2004 | Office furniture, storage units performance requirements for drawer and cabinet components | |
| EN 1335-1:2020 | Office work chair dimensional coordination, applicable to seated knee clearance dimensions |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for static load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for drawer slide and shelf load testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel desk components | |
|---|---|---|
| GB/T 3327-2018 | Test methods for stability of furniture, applicable to desk tip-over resistance testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1-grade panel materials | |
| GB/T 10357.1-2013 | Mechanical performance test for tables, applicable to desktop static load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel desk components; 2. GB/T 3327-2018: Test methods for stability of furniture, applicable to desk tip-over resistance testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade panel materials; 4. GB/T 10357.1-2013: Mechanical performance test for tables, applicable to desktop static load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
