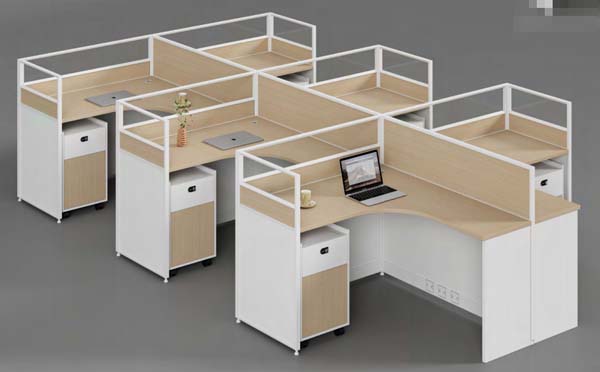

6-Person Cross-Shaped L-Shape Modular Office Cubicle Workstation with Mobile Pedestals (model CUB-L6-CROSS-OAK-WH) is listed under L-Shaped Office Desk. Dimensions: 3000 × 3000 × 1200 mm. Materials: 25mm E1-grade melamine-faced particleboard, 2mm PVC impact-resistant edge banding. Load capacity: 300 kg. Product Features: modern,open-plan,style,modular,partition,structure,light,oak,and,white,finish,integrated,under-desk,mobile,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | Fanshidun | Model | CUB-L6-CROSS-OAK-WH |
| Overall dimensions (W × D × H) | 3000 × 3000 × 1200 mm | Overall 6-seat cluster footprint | 3000 x 3000 x 1200 mm |
| Standard desk surface height | 750 mm | Single seat L-shaped work surface dimension | 1500 x 1400 mm |
| Partition divider total height | 1200 mm | Desk top panel thickness | 25 mm |
| Knee clearance height under desk | 650 mm | Work surface depth at primary seating position | 700 mm |
| Partition panel total thickness | 30 mm | Mobile pedestal overall dimension | 400 x 500 x 600 mm |
| Frosted upper partition panel height | 350 mm | Solid lower partition panel height | 850 mm |
| Adjustable leveling foot adjustment range | 15 mm | Curved inner knee corner radius | 150 mm |
| Cable grommet diameter | 80 mm | Primary Component Thickness | 40 mm according to load-bearing role |
| Hardware / Moving-part Clearance | 5 mm operating clearance | Single work surface static load capacity | 300 kg |
| Total set gross weight (assembled) | 400 kg | Recommended maximum user weight per seat | 150 kg |
| Surface abrasion resistance rating | 2000 cycles | Partition frame static lateral load resistance | 100 kg |
| Standard manufacturer warranty period | 5 years | Available finish color options | 6 |
| Reference Static Load | 150 kg depending on category | Moving-part Durability Reference | Acceptance target 50000 cycles |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years | Work surface panel | 25mm E1-grade melamine-faced particleboard, 2mm PVC impact-resistant edge banding |
| Partition frame structure | 1.0mm thick white powder-coated steel/aluminum alloy rectangular tube frame | Upper partition panel | 5mm thick frosted translucent polycarbonate or tempered glass panel |
| Lower partition panel | 16mm thick light oak melamine-faced particleboard privacy panel | Mobile pedestal cabinet body | 18mm thick white and light oak melamine-faced particleboard with lockable aluminum drawer pulls |
| Pedestal casters | 50mm diameter black nylon swivel casters, 2 with brake function per unit | Modesty panel below work surface | 18mm thick white melamine particleboard panel with integrated cable cutouts |
| Structural support legs | 1.2mm thick powder-coated square steel legs with adjustable nylon leveling feet | Hardware fasteners | Zinc-plated steel cam lock and bolt hardware for knock-down assembly |
| Surface finish coating | Electrostatic powder-coated finish on all metal frames for scratch and rust resistance | Cable management components | ABS plastic cable grommets and under-desk cable routing trays |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | Per-seat privacy partition | 1200mm tall divider blocks direct line of sight between adjacent seated workers for call center privacy |
| Integrated mobile storage pedestal | 3-drawer lockable rolling cabinet fits under each work surface for personal document and supply storage | Built-in cable management system | Desk grommets and modesty panel cutouts route power and data cables from floor to work surface to reduce clutter |
| Adjustable floor leveling | Rotating leveling feet at each support point adjust to compensate for uneven office flooring to eliminate wobble | Knock-down modular assembly | Pre-drilled components connect with standard hardware to allow reconfiguration, expansion or relocation of the cubicle cluster |
| Ergonomic curved knee opening | Rounded inner corner on L-shaped work surface provides comfortable leg room without sharp edge contact for seated users | Lockable pedestal drawers | Central lock on each mobile pedestal secures all 3 drawers to protect personal items and confidential documents |
| Brake-enabled casters | Two locking casters per mobile pedestal hold the cabinet in position when in use, unlock for easy repositioning | Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Packaging Volume | 0.8 m³/set | Reference Packaged Gross Weight | 120 kg/set |
| Open-plan corporate office zones | Ideal for teams of 6 administrative or operational staff requiring balanced privacy and collaboration | Call center and customer support facilities | High-density 6-seat layout provides individual workspaces for agents with space for headsets and equipment |
| Government and institutional back offices | Durable commercial-grade construction supports daily high-traffic use for administrative processing staff | Co-working space dedicated team zones | Modular design allows reconfiguration for growing teams with integrated storage for permanent team members |
| Startup and small business open offices | Compact cross layout maximizes seat count without sacrificing individual work surface area | Training and temporary project spaces | KD assembly allows rapid setup and disassembly for short-term project teams or training cohorts |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 1200 mm | |
|---|---|---|
| Overall 6-seat cluster footprint | 3000 x 3000 x 1200 mm | |
| Standard desk surface height | 750 mm | |
| Single seat L-shaped work surface dimension | 1500 x 1400 mm | |
| Partition divider total height | 1200 mm | |
| Desk top panel thickness | 25 mm | |
| Knee clearance height under desk | 650 mm | |
| Work surface depth at primary seating position | 700 mm | |
| Partition panel total thickness | 30 mm | |
| Mobile pedestal overall dimension | 400 x 500 x 600 mm | |
| Frosted upper partition panel height | 350 mm | |
| Solid lower partition panel height | 850 mm | |
| Adjustable leveling foot adjustment range | 15 mm | |
| Curved inner knee corner radius | 150 mm | |
| Cable grommet diameter | 80 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single work surface static load capacity | 300 kg | |
|---|---|---|
| Total set gross weight (assembled) | 400 kg | |
| Recommended maximum user weight per seat | 150 kg | |
| Surface abrasion resistance rating | 2000 cycles | |
| Partition frame static lateral load resistance | 100 kg | |
| Standard manufacturer warranty period | 5 years | |
| Available finish color options | 6 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface panel | 25mm E1-grade melamine-faced particleboard, 2mm PVC impact-resistant edge banding | |
|---|---|---|
| Partition frame structure | 1.0mm thick white powder-coated steel/aluminum alloy rectangular tube frame | |
| Upper partition panel | 5mm thick frosted translucent polycarbonate or tempered glass panel | |
| Lower partition panel | 16mm thick light oak melamine-faced particleboard privacy panel | |
| Mobile pedestal cabinet body | 18mm thick white and light oak melamine-faced particleboard with lockable aluminum drawer pulls | |
| Pedestal casters | 50mm diameter black nylon swivel casters, 2 with brake function per unit | |
| Modesty panel below work surface | 18mm thick white melamine particleboard panel with integrated cable cutouts | |
| Structural support legs | 1.2mm thick powder-coated square steel legs with adjustable nylon leveling feet | |
| Hardware fasteners | Zinc-plated steel cam lock and bolt hardware for knock-down assembly | |
| Surface finish coating | Electrostatic powder-coated finish on all metal frames for scratch and rust resistance | |
| Cable management components | ABS plastic cable grommets and under-desk cable routing trays | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Per-seat privacy partition | 1200mm tall divider blocks direct line of sight between adjacent seated workers for call center privacy | |
|---|---|---|
| Integrated mobile storage pedestal | 3-drawer lockable rolling cabinet fits under each work surface for personal document and supply storage | |
| Built-in cable management system | Desk grommets and modesty panel cutouts route power and data cables from floor to work surface to reduce clutter | |
| Adjustable floor leveling | Rotating leveling feet at each support point adjust to compensate for uneven office flooring to eliminate wobble | |
| Knock-down modular assembly | Pre-drilled components connect with standard hardware to allow reconfiguration, expansion or relocation of the cubicle cluster | |
| Ergonomic curved knee opening | Rounded inner corner on L-shaped work surface provides comfortable leg room without sharp edge contact for seated users | |
| Lockable pedestal drawers | Central lock on each mobile pedestal secures all 3 drawers to protect personal items and confidential documents | |
| Brake-enabled casters | Two locking casters per mobile pedestal hold the cabinet in position when in use, unlock for easy repositioning | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan corporate office zones | Ideal for teams of 6 administrative or operational staff requiring balanced privacy and collaboration | |
|---|---|---|
| Call center and customer support facilities | High-density 6-seat layout provides individual workspaces for agents with space for headsets and equipment | |
| Government and institutional back offices | Durable commercial-grade construction supports daily high-traffic use for administrative processing staff | |
| Co-working space dedicated team zones | Modular design allows reconfiguration for growing teams with integrated storage for permanent team members | |
| Startup and small business open offices | Compact cross layout maximizes seat count without sacrificing individual work surface area | |
| Training and temporary project spaces | KD assembly allows rapid setup and disassembly for short-term project teams or training cohorts |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks, safety and strength requirements for work surfaces | |
|---|---|---|
| EN 1023-1:2019 | Office storage furniture, safety and strength requirements for mobile pedestals | |
| EN 1335-1:2020 | Office furniture, office work chair dimensional coordination for seated clearance | |
| EN 71-3:2019 | Migration of certain elements, applicable to surface finish safety requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to work surface load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to mobile pedestal strength and durability | |
| ANSI/BIFMA X5.1-2017 | Office chairs standard, for coordinated seating clearance dimensions | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, applicable to material emissions and lifecycle |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to work surfaces and cabinet panels | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frames and support structures | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to all particleboard components | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to work surface load and stability testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to work surfaces and cabinet panels; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frames and support structures; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to all particleboard components; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to work surface load and stability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
