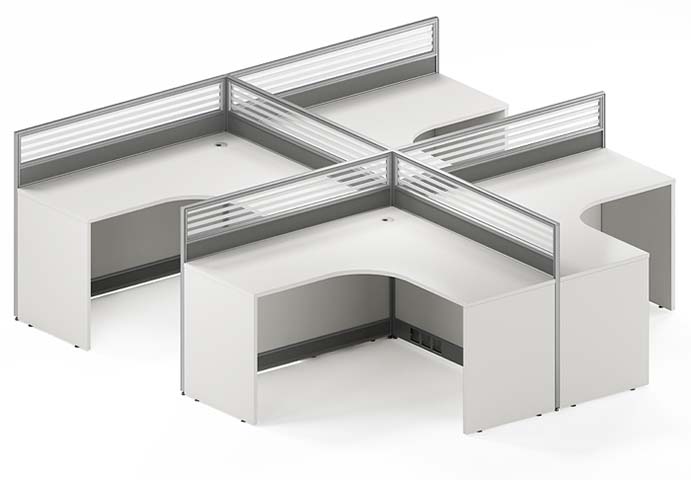

4-Person Cross-Shaped Semi-Translucent Partition Office Cubicle Workstation (model WS-CR4-2840-GW) is listed under L-Shaped Office Desk, with overall dimensions of 2840 × 2840 × 1100 mm and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: Modular,cubicle,structure,white-grey,finish,cross,4-seat,layout,curved,knee,cutouts,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2840 x 2840 x 1100 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Partition screen height | 1100 mm | |
| Desktop panel thickness | 25 mm | |
| Single L-shaped work surface segment | 1420 x 600 mm | |
| Under-desk knee clearance height | 673 mm | |
| Knee opening width at curved front | 800 mm | |
| Cable grommet diameter | 60 mm | |
| Partition screen thickness | 40 mm | |
| Modesty panel height | 400 mm | |
| Aluminum partition frame wall thickness | 1.2 mm | |
| Edge banding thickness | 2 mm | |
| Adjustable foot height adjustment range | 15 mm | |
| Single work surface depth at user position | 600 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-work-surface static load capacity | 113 kg | |
|---|---|---|
| Unit total weight | 470 kg | |
| Seating capacity | 4 users | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Powder-coated steel frame rust resistance | Grade 1 | |
| Adjustable foot load rating per foot | 80 kg | |
| Cable channel capacity per under-desk tray | 12 cables | |
| Product warranty | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core | E1 grade particleboard | |
|---|---|---|
| Desktop surface | Thermally fused melamine laminate | |
| Partition frame | 1.2mm thick extruded aluminum alloy | |
| Upper partition section | Semi-translucent frosted acrylic slats | |
| Lower partition/modesty panel | 16mm thick grey melamine particleboard | |
| Support structure and hardware | 1.0mm thick powder-coated steel with zinc alloy connectors |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | 60mm surface grommets plus under-desk aluminum cable channels | |
|---|---|---|
| Floor leveling | Rotary adjustable feet at all base contact points | |
| Workspace privacy | 1100mm high cross partitions separating all four work zones | |
| Modular assembly | Knockdown panel connection with steel bracket fasteners |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff work areas | Provides divided individual workspaces for teams in open office layouts | |
|---|---|---|
| Administrative and clerical departments | Suitable for daily computer, paperwork and document processing tasks |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements | |
|---|---|---|
| EN 1335-1:2020 | Office furniture work chair dimensional coordination | |
| EN 1022:2019 | Furniture seating stability test method | |
| EN 15372:2016 | Office furniture strength, durability and safety requirements |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal office furniture | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels | |
| GB/T 24821-2009 | Office panel system furniture technical specifications |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 3325-2017: General technical requirements for metal office furniture; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels; 4. GB/T 24821-2009: Office panel system furniture technical specifications; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
