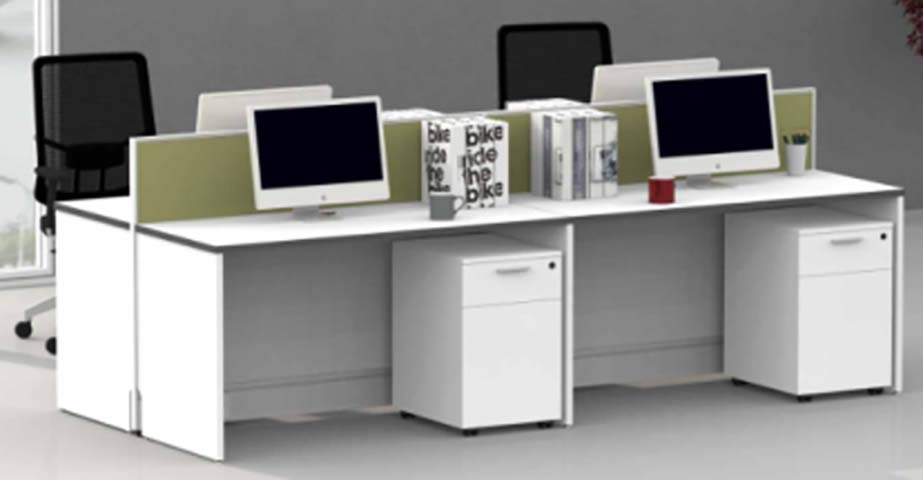

4-Person Face-to-Face Low-Divider Office Workstation Cluster with Mobile Pedestals (model WS-4P-2X2-LD-WG) is listed under L-Shaped Office Desk, with overall dimensions of 2475 × 1225 × 750 mm and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: Modular,low-partition,white/green,color,scheme,mobile,under-desk,storage,commercial,use. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions | 2475 x 1225 x 750 mm | |
|---|---|---|
| Individual desktop size per user | 1200 x 600 mm | |
| Desktop thickness | 25 mm | |
| Divider height above desktop | 300 mm | |
| Divider thickness | 32 mm | |
| Knee clearance height under desktop | 675 mm | |
| Knee clearance width per workstation | 550 mm | |
| Mobile pedestal dimensions | 400 x 500 x 650 mm | |
| Pedestal drawer box height | 150 mm | |
| Pedestal file drawer height | 230 mm | |
| Cable grommet diameter | 60 mm | |
| Edge banding thickness | 2 mm | |
| Steel leg section size | 45 x 45 mm | |
| Steel leg wall thickness | 1.8 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static load per desktop | 113 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Desktop surface abrasion resistance | 2000 cycles | |
| Cable tray load capacity | 10 kg | |
| Total system gross weight | 300 kg | |
| Recommended maximum user weight per station | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core and surface | E1 grade melamine-faced particleboard core, thermally fused laminate surface, scratch/stain resistant | |
|---|---|---|
| Desktop edge trim | 2mm thick PVC edge banding, grey color matching visible trim | |
| Desk frame and legs | Powder-coated square steel tubing, matte silver/grey finish | |
| Privacy dividers | Fabric-upholstered MDF core, sage green finish, tackable surface | |
| Mobile pedestals | Powder-coated steel construction, white finish, central locking system | |
| Caster wheels | 50mm diameter nylon swivel casters, 2 locking units per pedestal |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular connection system | Bracket-connected modular panels allow expansion to larger workstation runs | |
|---|---|---|
| Cable management system | Dual cable grommets per workstation with under-desk raceways for power and data cords | |
| Mobile pedestal locking | Central key lock secures both drawers on each pedestal for personal storage security | |
| Floor leveling | Adjustable glides on desk legs compensate for uneven office flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff work areas | Suitable for 4-person team clusters in open offices, low dividers reduce visual distraction without blocking collaboration | |
|---|---|---|
| Small business and startup offices | Cost-effective modular solution for growing teams, expandable with additional connected clusters |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and performance requirements for commercial workstations | |
|---|---|---|
| EN 1335-1:2020 | Office chairs dimensional requirements, referenced for compatible chair clearance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for load, durability and stability | |
|---|---|---|
| ANSI/BIFMA X5.6-2022 | Panel systems performance standard for partition-connected workstation furniture |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel desktops and cabinet components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frames and pedestals | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required E1 grade ≤0.124mg/m³ |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel desktops and cabinet components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frames and pedestals; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required E1 grade ≤0.124mg/m³; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
