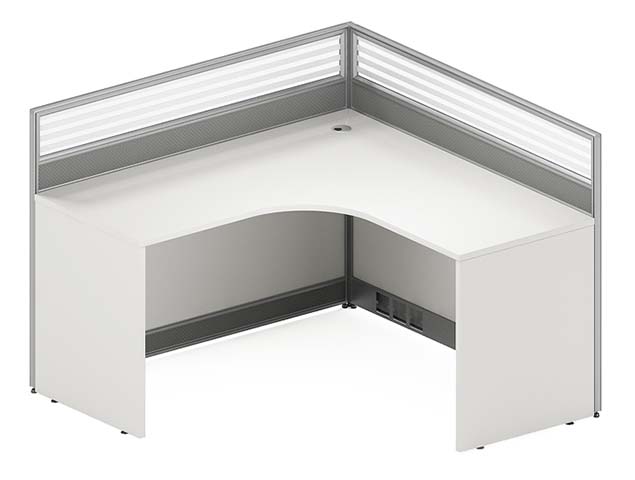

Single-Person L-Shaped Corner Office Cubicle Workstation Desk (model L-CORNER-CUBICLE-1600) is listed under L-Shaped Office Desk, with overall dimensions of 1600 × 1600 × 1200 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Modular,construction,white,finish,two-sided,privacy,partition,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 1600 x 1600 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Work surface depth | 700 mm | |
| Desktop thickness | 25 mm | |
| PVC edge band thickness | 2 mm | |
| Privacy partition total height | 1200 mm | |
| Upper translucent slat section height | 300 mm | |
| Lower privacy panel height | 900 mm | |
| Partition frame wall thickness | 1.8 mm | |
| Knee clearance height under desk | 680 mm | |
| Knee opening width at inner corner | 900 mm | |
| Cable grommet diameter | 80 mm | |
| Adjustable foot height adjustment range | 15 mm | |
| Under-desk cable raceway height | 100 mm | |
| Side modesty panel thickness | 18 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 91 kg | |
|---|---|---|
| Surface abrasion resistance | 2000 cycles | |
| Formaldehyde emission level | 0.05 mg/m³ | |
| Unit net weight | 80 kg | |
| Recommended user weight capacity | 136 kg | |
| Surface stain and impact resistance | Level 2 | |
| Product warranty period | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | E1-grade melamine laminated particleboard, 25 mm thick, 2 mm PVC edge banding | |
|---|---|---|
| Privacy partition frame | 1.8 mm thick extruded aluminum alloy, silver anodized finish | |
| Upper partition panel | Translucent horizontal slat acrylic/polycarbonate diffuser | |
| Lower partition panel | Fabric-faced 0.8 mm cold-rolled steel backing, grey finish | |
| Support structure | Powder-coated square steel tube legs with solid side modesty panels | |
| Leveling feet | Nylon base with steel threaded stem, adjustable height |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | 80 mm desktop grommet connected to under-desk steel raceway for power/data routing | |
|---|---|---|
| Floor leveling adjustment | 15 mm adjustable threaded feet compensate for uneven office floors | |
| Privacy screening | 1200 mm high two-sided dividers provide seated visual privacy while allowing overhead light transmission | |
| Modular connection | Steel bracket connectors allow reconfiguration with adjacent workstation modules |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office workstations | Provides individual seated privacy with cable management for regular staff seating | |
|---|---|---|
| Small office single workspaces | Fits corner positions to maximize usable floor area in compact offices |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to desktop structure | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic dimensional requirements for seated work | |
| EN 1022:2018 | Furniture seating stability test reference for adjacent workstation compatibility | |
| EN 14073-2:2004 | Office storage furniture performance requirements if add-on pedestals are installed |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance and safety standard for commercial office use | |
|---|---|---|
| ANSI/BIFMA X7.1-2022 | Furniture emissions standard for low-VOC indoor air quality | |
| ANSI/BIFMA G1-2013 | Ergonomic guidelines for office workstation dimensional design |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to worktop and panel components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use | |
| GB/T 35607-2017 | General technical requirements for office workstation furniture, applicable to cubicle structure | |
| GB/T 4897.3-2015 | Particleboard specifications for furniture use, applicable to worktop substrate |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to worktop and panel components; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade required for indoor office use; 3. GB/T 35607-2017: General technical requirements for office workstation furniture, applicable to cubicle structure; 4. GB/T 4897.3-2015: Particleboard specifications for furniture use, applicable to worktop substrate; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
