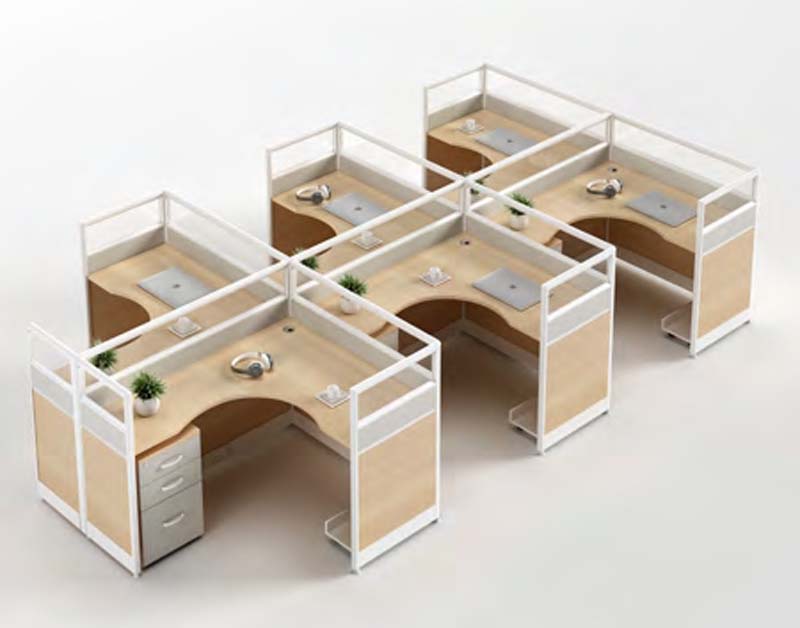

Product supplier6-Person Cross Layout Modular Office Cubicle Workstation Cluster, 25mm E1 grade particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 3600 × 1200 mm | |
|---|---|---|
| Overall cluster footprint | 3600 x 3600 x 1200 mm | |
| Per-position L-shaped worksurface | 1200 x 1200 mm | |
| Worksurface height | 750 mm | |
| Seated partition height | 1200 mm | |
| Worksurface thickness | 25 mm | |
| Partition panel thickness | 30 mm | |
| Curved knee well width | 600 mm | |
| Under-desk knee clearance height | 650 mm | |
| 3-drawer storage pedestal dimensions | 725 x 420 x 480 mm | |
| Cable grommet diameter | 60 mm | |
| Integrated footrest width | 400 mm | |
| Pedestal drawer height per compartment | 200 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight | 320 kg | |
|---|---|---|
| Per-worksurface static load capacity | 120 kg | |
| Drawer static load per compartment | 25 kg | |
| Partition frame load rating | 50 kg per panel | |
| Recommended maximum users | 6 | |
| Melamine surface abrasion resistance | 2000 cycles | |
| Product warranty | 3 years | |
| Available finish color options | 6 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface core | 25mm E1 grade particleboard | |
|---|---|---|
| Worksurface finish | Melamine laminate with 2mm PVC edge banding | |
| Partition structural frame | 1.2mm thick powder-coated white aluminum alloy | |
| Lower partition panels | Beige fabric-wrapped MDF panel | |
| Upper partition panels | Translucent frosted acrylic panel | |
| Drawer hardware slides | Full extension double ball-bearing steel slides | |
| Drawer pulls | Curved white powder-coated aluminum handles | |
| Integrated footrests | 1.5mm thick powder-coated steel plates | |
| Cable grommets | Round ABS plastic with removable cap | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular layout configuration | Knock-down cross 6-position cluster, reconfigurable via standard connectors | |
|---|---|---|
| Cable management | One round grommet per worksurface routes power/data cables below desk | |
| Under-desk storage | Integrated 3-drawer pedestals at select positions, lockable top drawer for valuables | |
| Semi-privacy separation | 1200mm high partitions block direct line of sight between adjacent users | |
| Light transmission | Translucent upper partition panels allow natural light flow between stations | |
| Ergonomic foot support | Fixed steel footrest at each knee well reduces leg fatigue during long seated shifts | |
| Curved knee cutout | Arched worksurface edge provides close seated access without sharp corner contact | |
| Assembly and disassembly | Cam-lock KD connectors allow tool-assisted assembly without permanent adhesive | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff areas | Suitable for teams requiring semi-private individual workspaces in open floor plans | |
|---|---|---|
| Call center and customer service hubs | Curved worksurfaces and cable grommets support phone/headset and computer setups | |
| Startup and SME workspaces | Modular design fits flexible growing teams without full office renovation | |
| Training and administrative departments | Stable worksurfaces and storage support daily document processing and task work | |
| Co-working shared spaces | Six dedicated individual stations maximize space efficiency in co-working environments |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Safety and strength requirements for office worktables, applies to structural load verification | |
|---|---|---|
| EN 1022:2018 | Stability testing for domestic and office seating-adjacent furniture, applies to workstation stability |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Safety and performance standard for desk products, applies to worksurface and frame load testing |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worksurface and panel components | |
|---|---|---|
| GB/T 3327-2016 | Dimensions and tolerances for office desks and workstations, applies to dimensional verification | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applies to E1 grade board material verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worksurface and panel components; 2. GB/T 3327-2016: Dimensions and tolerances for office desks and workstations, applies to dimensional verification; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applies to E1 grade board material verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
