PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2830 × 2830 × 1200 mm
overall cluster footprint	2830 x 2830 x 1200 mm
work surface height above floor	750 mm
single L-shaped station arm length	1500 mm
single L-shaped station arm depth	1400 mm
work surface thickness	25 mm
partition panel total height	1200 mm
partition panel thickness	30 mm
edge banding thickness	2.0 mm
under-desk seated knee clearance height	650 mm
storage drawer interior height	120 mm
lower storage cabinet interior height	500 mm
support leg panel thickness	18 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total assembled product weight	180 kg
single work surface static load capacity	100 kg
surface scratch resistance	2000 cycles
hardware salt spray corrosion resistance	48 hours
recommended user count per cluster	4
structural warranty for commercial use	5 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

work surface panel	E1 grade melamine-faced particleboard, anti-scratch/anti-water/anti-stain finish
work surface edge trim	2.0mm thick matching-color PVC edge banding, hot-melt adhesive applied
partition frame structure	Powder-coated aluminum alloy extruded frame, integrated cable routing channels
partition upper panel	Ribbed tackable fabric-covered acoustic panel, light neutral tone
partition lower panel	Solid melamine-faced panel, dark charcoal grey finish
desk support and base panels	Powder-coated 1.2mm thick steel frame with matching dark grey infill panels
storage unit panels	18mm thick melamine-faced particleboard, two-tone light/dark grey finish
hardware components	Zinc-plated steel screws, hinges and drawer slides, corrosion-resistant coating
leveling feet	15mm diameter adjustable polypropylene feet, 10mm adjustment range
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

partition privacy screening	1200mm tall dividers block seated line of sight between adjacent workstations
integrated under-desk storage	Each station includes 1 lockable drawer and 1 lower cabinet door for personal storage
integrated cable management	Partition frames contain dedicated separated trunking for strong and weak electrical cabling
adjustable floor leveling	Base feet adjust up to 10mm to compensate for uneven office flooring
curved front work edge	Concave curved front edge provides increased knee room and reduced contact pressure
raised auxiliary side shelf	Small elevated shelf behind each partition holds documents, files or small office items
modular reconfiguration	Panels and worktops connect via standardized hardware to allow layout modification
lockable storage security	Top storage drawer includes integrated key lock to secure personal valuables
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

open plan office staff areas	Provides individual partitioned workspaces for teams in open office layouts to reduce distraction
small business administrative offices	All-in-one cluster includes work surfaces and storage for new office setups with limited space
call center and shared service centers	Partial height partitions balance privacy and supervisor visibility for high-density work environments
temporary project team spaces	Modular design allows reconfiguration as project team sizes and layouts change
startup office collaborative zones	Curved work edges enable easy interaction between adjacent team members while defining personal work zones
government and public institution work areas	Meets standard procurement requirements for durable, formaldehyde-compliant commercial office furniture

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Applicable safety and dimensional requirement standard for office work desks and workstations
EN 1335-1:2020	Applicable ergonomic reference standard for seated office workstation clearance dimensions

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Applicable performance and durability standard for office desk products, covers load and cycle testing
ANSI/BIFMA X5.9-2019	Applicable performance standard for office storage units integrated into workstations

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	Applicable general technical requirement standard for wooden office furniture, covers dimensional tolerance and structural integrity
GB 18580-2017	Applicable formaldehyde emission limit standard for wood-based panels used in interior furniture
GB/T 15102-2017	Applicable performance standard for melamine-faced wood-based panels used for work surfaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: Applicable general technical requirement standard for wooden office furniture, covers dimensional tolerance and structural integrity;
2. GB 18580-2017: Applicable formaldehyde emission limit standard for wood-based panels used in interior furniture;
3. GB/T 15102-2017: Applicable performance standard for melamine-faced wood-based panels used for work surfaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-CURV-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-CURV-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-CURV-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

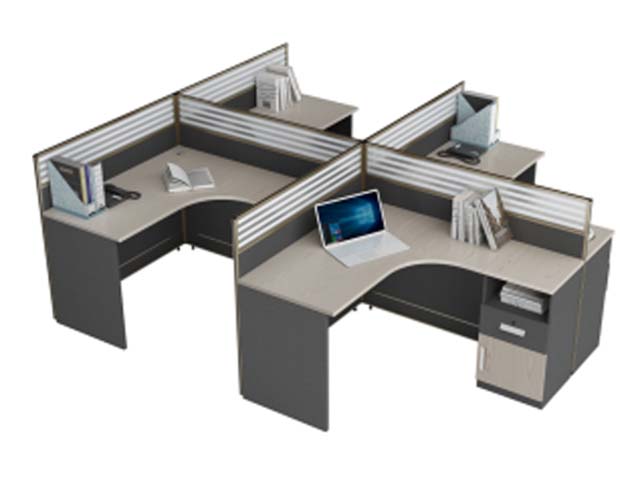

This 4-person cross layout curved L-shaped office cubicle workstation cluster delivers a structured, modern workspace solution with integrated storage, designed to balance personal focus and team connectivity. Its cross-shaped layout arranges four individual L-shaped workstations around a central shared divider core, with gently concave curved front edges on each work surface that create open, comfortable knee space and reduce pressure on forearms during extended work sessions. The design uses a coordinated two-tone finish, with light neutral ribbed fabric on upper partition panels, dark charcoal grey solid lower partition panels, and matching light and dark grey storage elements that create a polished, professional visual presence.
Construction uses durable, commercial-grade materials selected for long-term high-use environments. Work surfaces are made of E1 grade melamine-faced particleboard with an anti-scratch, anti-water, anti-stain finish, trimmed with color-matched 2.0mm thick PVC edge banding applied with hot-melt adhesive for seamless, durable edges. Support structures rely on powder-coated 1.2mm thick steel frames paired with matching dark grey infill panels, while partition dividers use powder-coated aluminum alloy extruded frames. Integrated storage cabinets are constructed from 18mm thick melamine-faced particleboard, with zinc-plated, corrosion-resistant steel hardware and adjustable 15mm diameter polypropylene leveling feet to accommodate uneven flooring.
Practical functions are built directly into the cluster to support daily office use. The 1200mm tall partition dividers block seated line of sight between adjacent stations to reduce distraction, while their partial height maintains visibility for team coordination and supervisor oversight. Each individual workstation includes one lockable drawer and one lower cabinet door for secure personal storage, plus a small elevated side shelf behind the partition for documents and small office supplies. Integrated cable routing channels within partition frames separate strong and weak electrical cabling to keep work surfaces uncluttered, while standardized connecting hardware allows modular reconfiguration to adapt to changing team needs.
This workstation cluster is well suited for a range of commercial spaces, including open plan office staff areas, small business administrative offices, call centers and shared service centers, temporary project team spaces, startup collaborative zones, and government or public institution work areas. It offers space-efficient all-in-one functionality for new office setups with limited square footage, and balances privacy and interaction to support both focused individual work and casual team collaboration.
Procurement teams should note that the product comes unbranded, carries a 5-year structural warranty for commercial use, and ships as a single set across two cartons. Assembly requires roughly 40 minutes per set, and the adjustable feet can compensate for minor unevenness in finished flooring. The E1 grade panel material meets standard formaldehyde compliance requirements for commercial office furniture, and the durable surface and corrosion-resistant hardware are built to withstand consistent daily use in high-traffic work environments.

4-Person Cross Layout Curved L-Shaped Office Cubicle Workstation Cluster with Integrated Storage Specifications
