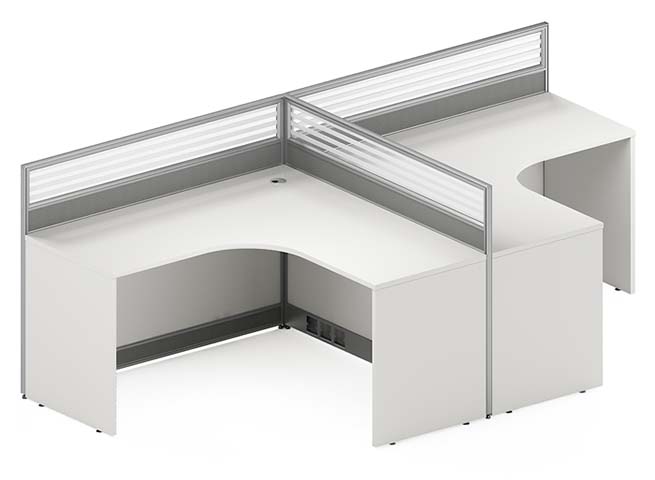

2-Person Back-to-Back Corner L-Shaped Cubicle Workstation with Frosted Dividers (model WS-2P-CR-L-300H) is listed under L-Shaped Office Desk, with overall dimensions of 2400 × 2400 × 1100 mm and main material of Particle‑board (PB). Load capacity: 130 kg. Certifications: commercial,furniture,modular,cubicle,structure,integrated,cable,management,low,privacy,dividers,curved,knee,cutouts. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2400 x 2400 x 1100 mm | |
|---|---|---|
| Work surface height | 760 mm | |
| Single L-work surface per position | 1800 x 600 mm | |
| Knee clearance height | 740 mm | |
| Knee clearance width | 700 mm | |
| Knee clearance depth | 450 mm | |
| Divider total height above floor | 1100 mm | |
| Frosted upper divider strip height | 305 mm | |
| Solid lower divider panel height | 400 mm | |
| Worktop thickness | 25 mm | |
| Modesty panel thickness | 16 mm | |
| Cable grommet diameter | 80 mm | |
| Adjustable foot height adjustment range | 15 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity per work surface | 130 kg | |
|---|---|---|
| Net weight (full workstation) | 155 kg | |
| Divider panel static load rating | 15 kg per linear meter | |
| Work surface abrasion resistance cycles | 100000 cycles | |
| Frame durability cycle rating | 100000 cycles | |
| Recommended user count | 2 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces | 25 mm E1 grade melamine-faced particle board with 1.2 mm ABS edge banding | |
|---|---|---|
| Modesty and side panels | 16 mm E1 grade melamine-faced particle board with matching edge trim | |
| Divider frames | 1.2 mm thick powder-coated silver aluminum alloy extrusions | |
| Upper privacy strips | 4 mm thick frosted translucent acrylic panels | |
| Lower divider panels | 16 mm grey melamine-faced particle board solid panels | |
| Hardware and feet | Powder-coated steel connecting hardware with nylon adjustable level feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | One 80 mm desktop grommet per position with under-desk wire raceway access | |
|---|---|---|
| Floor leveling | Nylon adjustable feet at all base points to compensate for uneven flooring | |
| Modular expansion | Aluminum post frame connects to additional workstation modules for cluster expansion | |
| Privacy separation | Cross-configured dividers provide 1100 mm high visual separation between adjacent users |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan offices | Suitable for 2-person corner clusters in high-density open office layouts, maximizing corner space use | |
|---|---|---|
| Administrative staff areas | Ideal for administrative, data entry or customer service teams requiring moderate privacy and shared space efficiency |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks safety and strength requirements, applicable for structural load validation | |
|---|---|---|
| EN 1335-1:2020 | Office furniture office workstations dimensional coordination for seated use clearance | |
| EN 717-1:2004 | Wood-based panels formaldehyde emission determination for indoor air quality compliance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for static load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.11-2015 | Privacy panel products standard for partition strength and safety requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel work surfaces and modesty panels | |
|---|---|---|
| GB/T 3327-2017 | Technical requirements for office desks and tables, applicable to workstation dimensional and performance benchmarks | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office panel components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel work surfaces and modesty panels; 2. GB/T 3327-2017: Technical requirements for office desks and tables, applicable to workstation dimensional and performance benchmarks; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office panel components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
