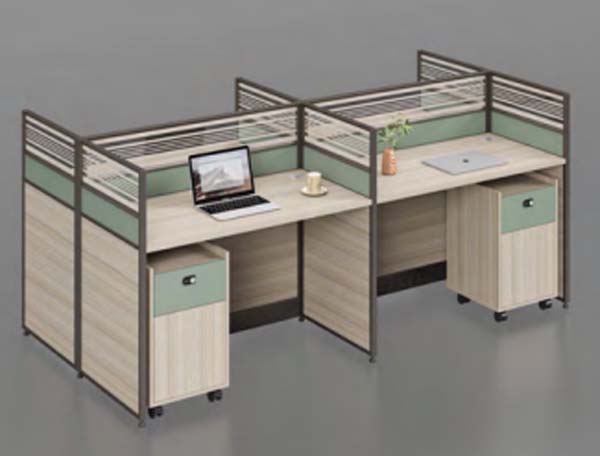

Product supplier2-Person Modular Office Cubicle Workstation with Mobile Pedestals, E1 grade melamine-faced particleboard, 25mm thick, PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2820 × 1420 × 1200 mm | |
|---|---|---|
| overall cluster dimensions | 2820 x 1420 x 1200 mm | |
| work surface height | 750 mm | |
| per-seat work surface size | 1400 x 600 mm | |
| partition panel thickness | 32 mm | |
| knee clearance height under desk | 680 mm | |
| mobile pedestal dimensions | 400 x 500 x 600 mm | |
| lower solid partition height | 700 mm | |
| upper mesh partition height | 500 mm | |
| desktop thickness | 25 mm | |
| leveling foot adjustment range | 15 mm | |
| caster wheel diameter | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total workstation static load capacity | 300 kg | |
|---|---|---|
| single work surface distributed load | 100 kg | |
| pedestal drawer static load per drawer | 30 kg | |
| net weight per complete set | 160 kg | |
| melamine surface abrasion resistance | 2000 cycles | |
| partition acoustic privacy rating (NRC) | 0.35 | |
| applicable user count | 2 people | |
| commercial product warranty | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| work surface | E1 grade melamine-faced particleboard, 25mm thick, PVC edge banding | |
|---|---|---|
| partition frame | 1.2mm thick powder-coated dark gray steel tubing | |
| upper partition panel | Breathable mesh fabric with light-colored accent trim | |
| lower partition panel | Sage green fabric-wrapped fiberboard with light oak laminate kick panel | |
| mobile pedestal | Light oak melamine body, sage green lockable top drawer front | |
| pedestal casters | 360-degree swivel black nylon casters, 4 per unit | |
| frame leveling feet | Injection-molded nylon adjustable feet on all base corners | |
| cable management | Plastic desktop wire grommets, under-desk cable raceway | |
| edge banding | 2mm thick PVC edge sealing on all board panels | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| privacy partition | Partial-height two-zone dividers separate workstations, reducing visual distraction | |
|---|---|---|
| mobile storage | 3-drawer lockable pedestal rolls under desk for personal filing access | |
| floor leveling | Adjustable base feet compensate for uneven flooring up to 15mm | |
| cable management | Desktop grommets route power/data cords from surface to under-desk raceway | |
| modular reconfiguration | Steel frame connects via standard hardware, allowing layout expansion | |
| drawer operation | Smooth ball-bearing drawer slides for full extension access | |
| surface protection | Melamine worktop resists water, scratches, and common office stains | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| master carton dimensions | 1500 x 800 x 180 mm per panel carton, accessory carton 650 x 450 x 400 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open plan office areas | Provides individual work zones with partial privacy for clerical and admin staff | |
|---|---|---|
| co-working spaces | Flexible modular layout supports flexible hot-desking or assigned seating configurations | |
| call center environments | Mesh upper partitions reduce noise transfer while allowing supervisor visibility | |
| small business offices | Compact 2-person footprint fits limited floor space for startup teams | |
| administrative work zones | Standard desk height works with standard office chairs and computer equipment |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to workstation design | |
|---|---|---|
| EN 1335-1:2020 | Office furniture seating dimensions reference, applicable to knee clearance design | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to mobile pedestal performance | |
| EN 1022:2018 | Furniture seating stability test reference, applied to workstation stability verification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard, applicable to worktop load testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to mobile pedestal durability and stability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to work surfaces and cabinet components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame structure | |
| GB 18584-2001 | Limits of harmful substances in wood furniture, applicable to formaldehyde emission verification for panels | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to desk strength and stability testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to work surfaces and cabinet components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame structure; 3. GB 18584-2001: Limits of harmful substances in wood furniture, applicable to formaldehyde emission verification for panels; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to desk strength and stability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
