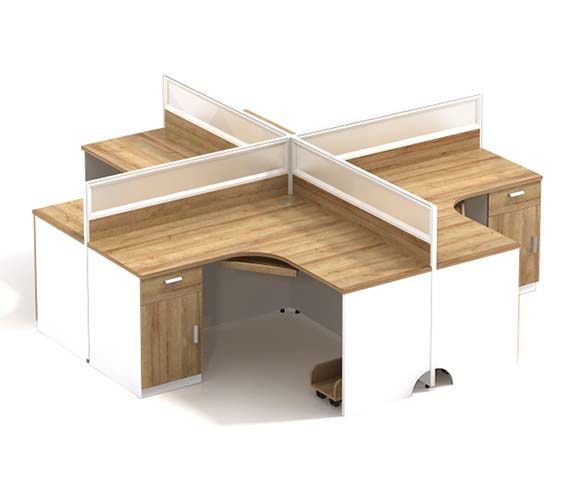

4-Person Cross-Shaped Office Cubicle Workstation with Integrated Storage (model WS-CROSS4-LKWH-01) is listed under L-Shaped Office Desk, with overall dimensions of 3023 × 3023 × 1200 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: modular,furniture,light,oak,finish,white,frame,partitioned,workstation,integrated,under-desk,storage,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall unit dimensions | 3023 x 3023 x 1200 mm | |
|---|---|---|
| desktop work height | 750 mm | |
| individual work surface main section | 1524 x 610 mm | |
| individual work surface return section | 914 x 610 mm | |
| privacy partition height above desktop | 450 mm | |
| desktop thickness | 25 mm | |
| under-desk seated knee clearance height | 660 mm | |
| under-desk seated knee clearance width per user | 800 mm | |
| partition panel thickness | 40 mm | |
| storage pedestal cabinet height | 690 mm | |
| keyboard tray travel extension | 300 mm | |
| cable grommet diameter | 60 mm | |
| base cable pass-through cutout height | 80 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| individual desktop static load capacity | 100 kg | |
|---|---|---|
| total unit weight | 350 kg | |
| user capacity | 4 users | |
| laminate surface abrasion resistance | 2000 cycles | |
| edge bond strength | 1.2 N/mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| work surface | 25mm E1 grade melamine-faced particleboard with 2mm PVC edge banding | |
|---|---|---|
| partition frames | Powder-coated white aluminum extrusion with connector hardware | |
| upper privacy panels | Matte frosted translucent acrylic panels for seated visual privacy | |
| lower partition panels | White melamine-coated hardboard panels for lower screen section | |
| storage cabinet construction | 18mm E1 grade melamine particleboard with light oak wood-grain doors and white side panels | |
| hardware components | Zinc-plated steel cam locks, drawer slides, and keyboard tray rails |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| workstation layout | Cross-divided 4-seat outward-facing configuration with curved concave knee openings per position | |
|---|---|---|
| cable management system | Desktop cable grommets, base-level cable cutouts, and internal panel raceways for organized power/data routing | |
| storage configuration | Integrated fixed under-desk pedestal per user with one shallow top drawer and one lower lockable storage cabinet | |
| keyboard support | Pull-out sliding keyboard tray mounted under foreground workstation main work surface |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| applicable space 1 | Open-plan office call centers and administrative work areas | |
|---|---|---|
| applicable space 2 | Corporate back-office departments and shared team work zones |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks, safety, strength and durability requirements | |
|---|---|---|
| EN 1335-1:2020 | Office work chairs dimensional coordination for under-desk clearance matching | |
| EN 1022:2018 | Domestic and contract furniture seating stability reference for workstation adjacency |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for static load, durability, and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer, shelf, and cabinet performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worksurface and cabinet performance | |
|---|---|---|
| GB/T 3326-2016 | Office furniture desk, table and storage unit dimensional and stability requirements | |
| GB 18584-2001 | Limit of harmful substances for interior decoration wooden furniture, formaldehyde emission limit |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worksurface and cabinet performance; 2. GB/T 3326-2016: Office furniture desk, table and storage unit dimensional and stability requirements; 3. GB 18584-2001: Limit of harmful substances for interior decoration wooden furniture, formaldehyde emission limit; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
