Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop load | 80 kg | |
|---|---|---|
| Pedestal drawer load | 25 kg per drawer | |
| Recommended user weight at workstation | 120 kg | |
| Workstation net weight | 95 kg | |
| Pedestal storage volume | 162 L | |
| Seating capacity | 1 person | |
| Leveling adjustment | 15 mm | |
| Panel privacy sight block | 430 mm solid lower band | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 25 mm melamine-faced particleboard with matching laminated edge | |
|---|---|---|
| Edge banding | 1.0 to 2.0 mm PVC or ABS edge strip | |
| Pedestal drawer fronts | 18 mm melamine-faced engineered board in oak-tone finish | |
| Side and modesty panels | 18 mm light gray melamine-faced engineered board | |
| Partition framing | 50 x 30 mm rectangular aluminum or powder-coated steel posts and rails | |
| Upper privacy screen | 4 mm translucent ribbed acrylic or tempered glass panel | |
| Lower screen backing | 12 to 18 mm wood-composite panel with wood-grain laminate | |
| Drawer lock | Black integrated key lock with numbered insert | |
| Drawer slides | Side-mounted steel ball-bearing drawer slides, 350 mm nominal length | |
| Corner power plate | Black hard-plastic outlet cover mounted on lower horizontal rail | |
| Feet and supports | Steel or nylon circular leveling glides with threaded stems | |
| Fasteners and connectors | Cam-lock connectors, screw brackets and steel corner braces |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

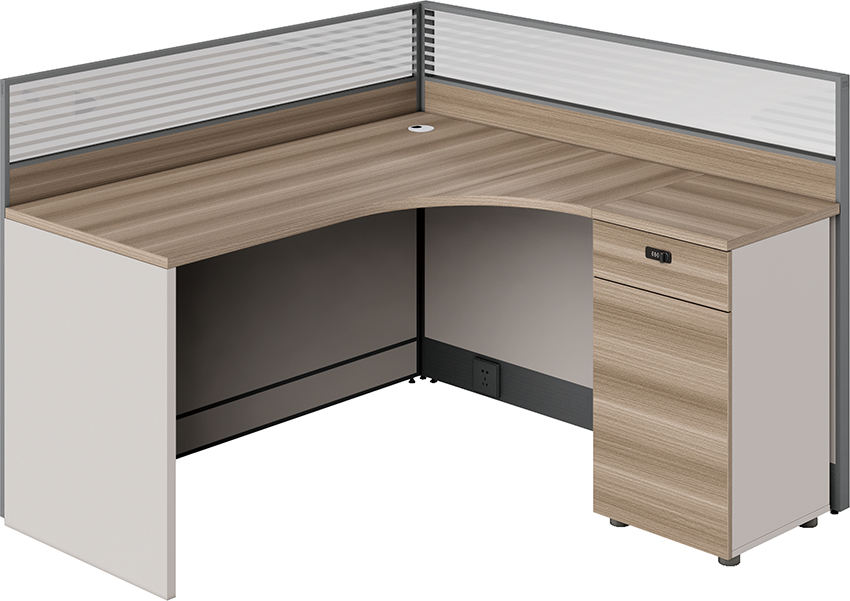

| Work configuration | Single-user L-shaped desk provides straight task area plus return surface for monitor or documents | |
|---|---|---|
| Seated access | Curved concave front creates centered knee bay for one office chair | |
| Storage operation | Right pedestal contains one shallow locking drawer and one larger file/drawer compartment | |
| Locking function | Keyed drawer lock secures the upper drawer and pedestal storage contents | |
| Cable routing | Round rear-corner grommet allows monitor and power cables to pass below the desktop | |
| Power access | Black outlet or junction plate at lower inner corner supports under-desk power connection | |
| Privacy screening | Two-sided translucent ribbed upper panels reduce visual distraction while retaining light transmission | |
| Floor leveling | Threaded circular glides compensate for uneven carpet or tile without lifting panels manually | |
| Modular expansion | Post-and-rail partition geometry can connect to adjacent matching cubicle runs at vertical posts | |
| Under-desk modesty protection | Solid side and rear panels conceal legs and reduce cross-aisle visibility | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Main carton dimensions | 1480 x 680 x 180 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Fits one employee in bench or cluster layouts where visual privacy and cable control are required | |
|---|---|---|
| Administrative workstation | Suitable for daily computer, paperwork and filing tasks due to L-shaped top and locked pedestal | |
| Call-center seating | Compact 1400 mm footprint allows dense rows while the ribbed screen limits side-to-side distraction | |
| Government or finance processing | Locking drawer supports confidential documents at individual work positions | |
| Shared service center | Can be repeated in connected runs using matching partition posts and common power/data trunks |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
