PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1400 × 1100 mm
Overall two-station footprint	2800 x 1400 x 1100 mm
Single L-workstation worktop size	1400 x 1200 mm
Work surface height from floor	750 mm
Seated knee clearance height	620 mm
Seated knee clearance width	600 mm
Seated knee clearance depth	480 mm
Privacy divider total height	1100 mm
Privacy divider panel thickness	60 mm
Worktop panel thickness	25 mm
PVC edge banding thickness	2 mm
Metal support leg wall thickness	1.5 mm
Left storage pedestal dimensions	400 x 550 x 680 mm
Desktop cable grommet diameter	60 mm
Drawer internal usable height	120 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat worktop static load capacity	120 kg
Drawer slide cycle rating	50000 cycles
Cabinet door hinge cycle rating	80000 cycles
Desktop surface abrasion resistance	2000 cycles
Partition panel sound transmission class	25
Per-station net weight	71 kg
Recommended maximum user weight per seat	130 kg
Standard manufacturer warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	25mm thick melamine-faced particleboard (MFC)
Worktop edge finish	2mm thick impact-resistant PVC edge banding
Privacy divider upper section	Perforated powder-coated steel panel with dark metal frame
Privacy divider lower section	Sage green solid MFC accent panel
Support legs	Tapered powder-coated dark steel legs with leveler feet
Storage pedestal structure	Light wood-grain melamine-faced MFC panels
Drawer front panel	Sage green melamine-faced MFC with integrated key lock
Drawer and cabinet hardware	Chrome-finish steel hinges and ball-bearing slides
Cable grommets	ABS plastic cable pass-through covers with brush inserts
Modular connecting hardware	Zinc-plated steel connecting brackets and fasteners
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seated visual privacy	3-sided dividers block direct line of sight between adjacent seated users
Integrated storage configuration	Left-side pedestal with open upper shelf, lockable middle drawer, lower closed cabinet
Cable management system	Dual desktop grommets route power/data cables from work surface to floor
Modular expandability	Pre-drilled connection points link units to form multi-seat open-plan clusters
Storage security	Central drawer lock secures contents in the middle utility drawer
Floor level adjustment	Adjustable glides on each leg compensate for uneven office flooring
Work surface accessibility	Unobstructed central knee well allows full leg movement for seated users
Surface stain resistance	Melamine finish resists common office liquid spills and stains
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office spaces	Provides individual work zones with visual privacy for team-based work environments
Small business staff work areas	Cost-effective modular setup for startup and SME office floor plans
Corporate administrative departments	Durable construction supports daily long-term use for administrative and clerical staff
Co-working shared offices	Modular design allows quick reconfiguration of workstations as tenant needs change
Call center work floors	Low-height dividers balance privacy and supervisor visibility across teams
Government/back-office work areas	Lockable storage secures personal and work documents at each station

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to worktop performance
EN 13722:2004	Office furniture storage units strength and durability, applicable to pedestal storage
EN 14073-2:2004	Office storage furniture safety requirements, applicable to cabinet components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to worktop load and stability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to drawer and cabinet durability
ANSI/BIFMA e3-2019	Furniture sustainability standard, applicable to material emission and lifecycle criteria

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk and panel components
GB/T 3327-2016	Technical requirements for office desks, applicable to worktop strength and stability
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for indoor office furniture
GB/T 4897.3-2003	Particleboard specifications for furniture use, applicable to MFC substrate

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and panel components;
2. GB/T 3327-2016: Technical requirements for office desks, applicable to worktop strength and stability;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office furniture;
4. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable to MFC substrate;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L2-1412-LM-SG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L2-1412-LM-SG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L2-1412-LM-SGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

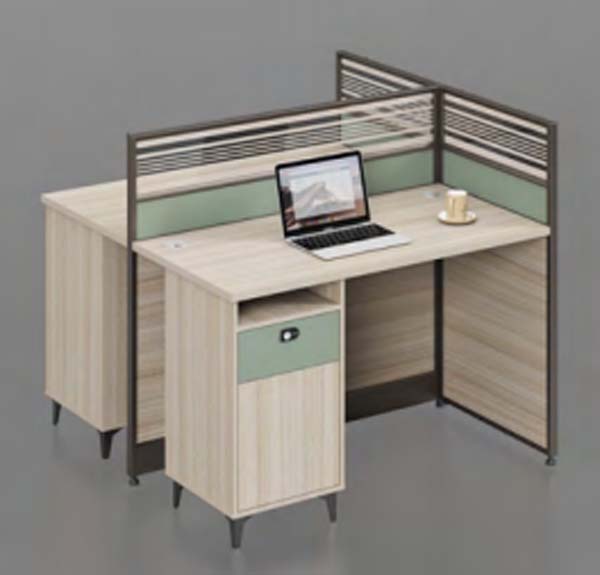

The Two-Person L-Shaped Modular Office Cubicle Workstation with Privacy Dividers, model WS-L1412-LM-SG from an unbranded line, delivers a structured, modern work solution built for shared professional environments. Its L-shaped layout holds two adjacent individual work zones, with a total two-station footprint that fits neatly into open floor plans without wasting usable space. Each 1400 x 1200 mm work surface sits at a standard 750 mm floor height, paired with a central unobstructed knee well offering generous clearance for comfortable seated positioning. Three-sided privacy dividers rise 1100 mm from the floor, with 60 mm thick panels that combine perforated powder-coated steel upper sections, dark metal framing, and solid sage green melamine-faced particleboard lower accents to block direct seated line of sight between neighbors, while retaining balanced sightlines for team oversight.
Construction prioritizes long-term daily use: worktops are formed from 25mm thick melamine-faced particleboard, finished with 2mm impact-resistant PVC edge banding to resist nicks and wear, supported by tapered powder-coated dark steel legs fitted with adjustable glides to compensate for uneven flooring. Each station integrates a left-side storage pedestal built from light wood-grain melamine-faced panels, featuring an open upper shelf, lockable middle drawer with sage green front and central key lock, and a lower closed cabinet. Hardware includes chrome-finished steel hinges rated for 80000 open-close cycles and ball-bearing drawer slides rated for 50000 cycles, with each worktop supporting 120 kg of static load and rated for 2000 cycles of surface abrasion resistance. Divider panels carry a sound transmission class rating of 25 to reduce cross-station noise distraction, while dual ABS plastic cable grommets with brush inserts route power and data cables neatly from the work surface to the floor. Pre-drilled connection points allow units to link together to form larger multi-seat clusters, adapting to evolving team sizes.
This workstation suits a wide range of professional spaces, including open-plan team offices, small business and startup work floors, corporate administrative departments, flexible co-working spaces, call center floors, and government back-office areas, where lockable storage secures personal and work documents at each seat. Procurement teams should note the product ships across multiple cartons with a total packaged gross weight of 180 kg per set, requires 40 minutes of assembly per unit, and supports a maximum recommended user weight of 130 kg per seat, with no proprietary branding to allow flexible alignment with existing office decor schemes.

Two-Person L-Shaped Modular Office Cubicle Workstation with Privacy Dividers Specifications
