Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 78 kg | |
|---|---|---|
| Distributed worktop load | 60 kg | |
| Drawer static load | 20 kg per drawer | |
| Pedestal cabinet stability load | 80 kg | |
| Recommended user capacity | 1 person | |
| Leveling adjustment | 10 mm | |
| Drawer cycle durability | 50,000 cycles | |
| Worktop surface impact acceptance | 18 N·m | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm melamine-faced particleboard with squared edge banding | |
|---|---|---|
| Lower modesty panels | 18 mm melamine-faced board in light gray finish | |
| Drawer fronts | 18 mm wood-grain melamine-faced board with black recessed label/lock fitting | |
| Pedestal side panels | 18 mm light-gray melamine-faced board forming a floor-standing support cabinet | |
| Upper privacy inserts | Frosted translucent sheet with horizontal ribbed texture | |
| Screen frame | Dark gray aluminum or steel extrusion enclosing translucent inserts and joining at the 90 degree corner | |
| Lower screen rail | Wood-grain board rail fixed between metal posts and back of worktop | |
| Rear cable panel | Black vertical panel with integrated socket outlet near floor | |
| Hardware | Black drawer lock or label holder, corner connectors and adjustable leveling feet | |
| Edge protection | PVC or ABS edge banding on exposed board edges | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

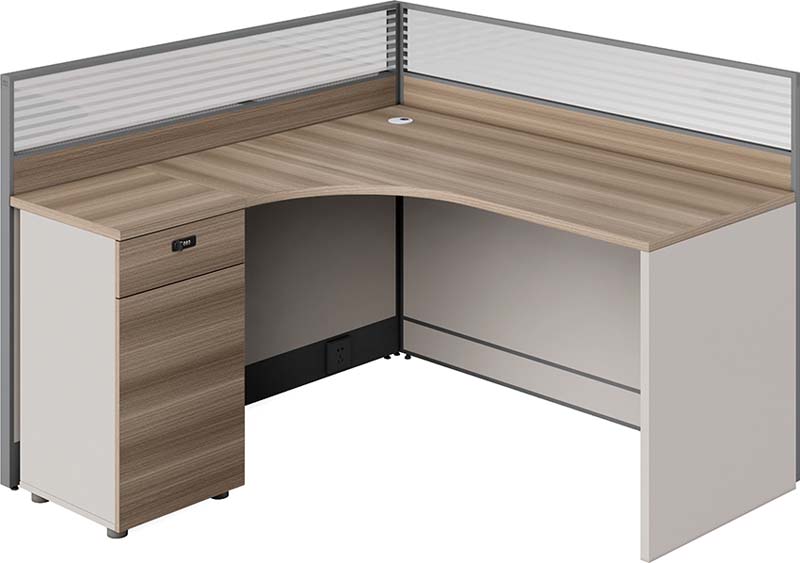

| Corner work layout | Two 1400 mm work runs meet at 90 degrees, separating monitor work from document or storage zones | |
|---|---|---|
| Seated access | Curved concave front edge provides a central 720 mm knee bay for one office chair | |
| Privacy division | Two-panel corner screen extends 350 mm above the worktop to reduce visual distraction | |
| Cable routing | A 60 mm round grommet near the rear corner allows monitor and power cables to drop below the top | |
| Power access | One black socket face is fitted to the rear lower cable/modesty panel | |
| Drawer storage | Two stacked lockable or label-fitted storage drawers are integrated into the left support pedestal | |
| Floor leveling | Round adjustable feet at exposed cabinet bases compensate for uneven floors and protect floor finish | |
| Pedestal support | The fixed cabinet acts as the left structural support, reducing the need for a separate leg | |
| Panel expansion | Vertical corner posts and horizontal rails permit connection to additional workstation modules using matching connectors | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Package count | 3 cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for one employee where acoustic/visual separation is needed without constructing a full office | |
|---|---|---|
| Administrative workstation | Fits paperwork, computer work and personal locked storage in a single footprint | |
| Call-center or back-office row | Can be joined to matching screens and power/data runs for repeated standardized seating | |
| Corner space use | Uses two walls or two circulation edges efficiently while preserving a central seated bay | |
| Small manager workstation | Provides side storage and expanded work surface for laptop, monitor and documents | |
| Project or procurement office | Suitable for users requiring sample documents, locked drawer storage and cable-managed equipment |
EU Market Access Requirements* EN Standards
| Office desk safety and strength | EN 527:2011 | |
|---|---|---|
| Office desk test methods | EN 527:2011 | |
| Storage cabinet safety | EN 14073:2004 | |
| Storage cabinet stability | EN 14073:2004 | |
| Formaldehyde panel emission | EN 13986:2004+A1:2015 |
US and Canada office-furniture standards
| Desk safety | ANSI/BIFMA X2021 | |
|---|---|---|
| Storage cabinet safety | ANSI/BIFMA X2019 | |
| Floor load protection | ANSI/BIFMA X2019Section 5 |
Standards applicable to China-market projects
| Desk structural safety | GB/T 3324 | |
|---|---|---|
| Formaldehyde emission | GB 18580 | |
| Furniture hardware tests | GB/T 10357.5 | |
| Office furniture fire safety | GB 20286 |
This product must meet the following technical requirements: 1. Desk structural safety: GB/T 3324; 2. Formaldehyde emission: GB 18580; 3. Furniture hardware tests: GB/T 10357.5; 4. Office furniture fire safety: GB 20286; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
