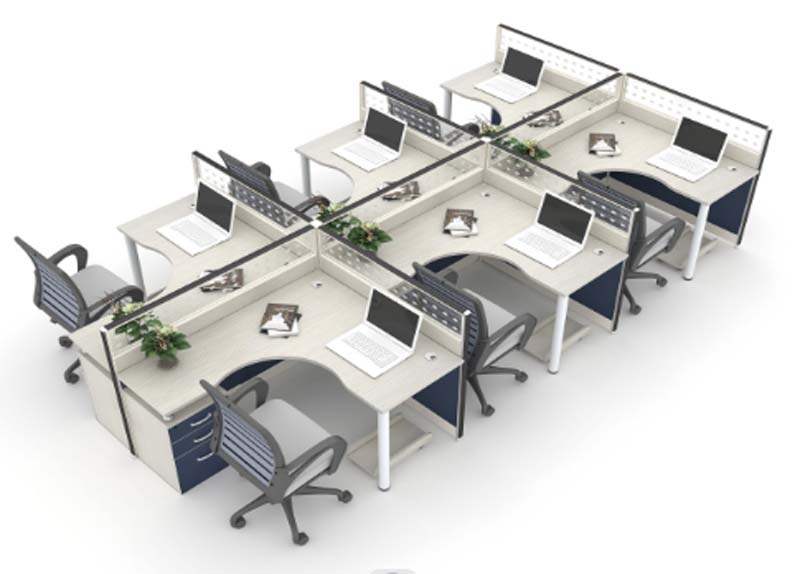

Product supplier6-Person Cross-Shaped Modular Office Cubicle Workstation with Drawer Storage, 25mm E1 grade melamine-faced particleboard (MFC)
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 2400 × 1190 mm | |
|---|---|---|
| Overall cluster footprint | 3600 x 2400 x 1190 mm | |
| Per-seat work surface dimension | 1200 x 600 mm | |
| Work surface height from floor | 760 mm | |
| Seated knee clearance height under desk | 725 mm | |
| Partition total height from floor | 1190 mm | |
| Partition panel thickness | 60 mm | |
| 3-drawer pedestal dimension per seat | 725 x 420 x 480 mm | |
| Curved knee cutout front depth | 150 mm | |
| Cylindrical support leg diameter | 60 mm | |
| Desk modesty panel height | 450 mm | |
| Frosted upper partition height | 350 mm | |
| Perforated lower partition height | 640 mm | |
| Cable grommet diameter per work surface | 60 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit net weight reference | 480 kg | |
|---|---|---|
| Per work surface static load capacity | 100 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Work surface scratch resistance rating | 2000 revolutions | |
| Partition sound transmission class reference | 25 STC | |
| Product structural warranty period | 5 years | |
| Available color finish options | 12 | |
| Hardware cyclic durability rating | 50000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | 25mm E1 grade melamine-faced particleboard (MFC) | |
|---|---|---|
| Work surface edge finish | 2mm thick PVC edge banding, sealed and rounded | |
| Support legs | 1.8mm thick powder-coated cylindrical steel, white finish | |
| Partition frame | Powder-coated aluminum alloy extrusion profile | |
| Upper partition panel | 6mm thick frosted semi-transparent acrylic/glass panel | |
| Lower partition panel | 18mm thick perforated steel/MDF panel, navy blue finish | |
| Drawer pedestal cabinet body | 16mm thick double-sided melamine particleboard, navy blue drawer fronts | |
| Drawer slides | 3-section full-extension cold-rolled steel ball-bearing slides | |
| Modesty panels | 16mm thick melamine particleboard, navy blue finish | |
| Cable management components | 0.8mm thick galvanized steel raceway with plastic grommets | |
| Assembly connectors | Zinc-plated steel cam lock and bracket fittings | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating capacity | 6 individual outward-facing work positions arranged in cross cluster | |
|---|---|---|
| Per-seat storage | 3 lockable drawers per workstation for stationery and document storage | |
| Cable management | Integrated under-desk raceway and surface grommets for power/data cord routing | |
| Modular assembly | Knock-down interlocking panels and connectors for layout reconfiguration | |
| Visual privacy | 1190mm tall partitions separate adjacent workstations for reduced distraction | |
| Seated access | Curved front knee cutout provides unobstructed leg entry for each user | |
| Surface utility | Flat work surface supports laptop, documents and office accessories for daily task work | |
| Leg leveling | Adjustable glide feet on support legs to compensate for uneven floors | |
| Partition light transmission | Frosted upper panel allows natural light transmission between workspaces | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan staff offices | Provides dedicated individual workspaces with reduced distraction for general administrative staff | |
|---|---|---|
| Call centers and telemarketing floors | Supports high-density seating with cable access for headsets and computer equipment | |
| Startup and co-working spaces | Modular construction allows reconfiguration as team size changes | |
| Back-office administrative departments | Integrated drawer storage keeps personal work items organized at each seat | |
| Government and enterprise work areas | Neutral light wood and navy finish matches standard commercial office interior design | |
| Training and project team spaces | Dedicated surfaces support individual task work during long project or training sessions |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office desk safety and stability | EN 527:2002 structural stability and load requirement | |
|---|---|---|
| Office furniture formaldehyde emission | EN 13986:2004 E1 class (≤0.124mg/m³) emission requirement | |
| Furniture surface abrasion resistance | EN 15186:2012 melamine surface wear resistance requirement |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Office desk load performance | ANSI/BIFMA X2021static and dynamic load test requirement | |
|---|---|---|
| Storage unit durability | ANSI/BIFMA X2019drawer unit cycle and load requirement |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Desk surface formaldehyde emission | GB/T 39600E1 grade requirement (≤0.124mg/m³) | |
|---|---|---|
| Office desk structural strength | GB/T 3326 mechanical performance test requirement | |
| Metal furniture coating adhesion | GB/T 1993impact resistance test requirement | |
| Office furniture fire safety | GB 20286flame retardant requirement for public space furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. Desk surface formaldehyde emission: GB/T 39600E1 grade requirement (≤0.124mg/m³); 2. Office desk structural strength: GB/T 3326 mechanical performance test requirement; 3. Metal furniture coating adhesion: GB/T 1993impact resistance test requirement; 4. Office furniture fire safety: GB 20286flame retardant requirement for public space furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
