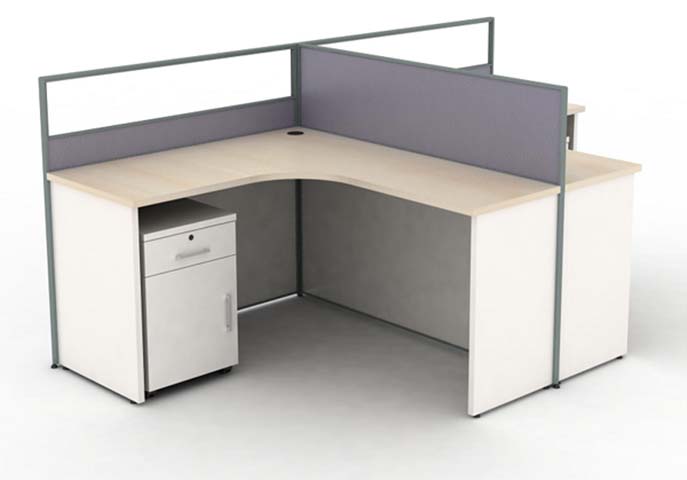

Product supplierL-Shaped Corner Office Cubicle Workstation with Mobile Pedestal and Fabric Privacy Panels, 18mm particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 1800 × 1200 mm | |
|---|---|---|
| Overall footprint (single L-corner module) | 1800 x 1800 x 1200 mm | |
| Work surface height | 750 mm | |
| Worktop thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| Privacy partition total height | 1200 mm | |
| Knee clearance opening width | 800 mm | |
| Knee clearance vertical height under worktop | 680 mm | |
| Worktop depth at main work area | 600 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Partition frame profile size | 30 x 60 mm | |
| Cable grommet diameter | 80 mm | |
| Side fixed storage cabinet depth | 500 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 200 kg | |
|---|---|---|
| Mobile pedestal drawer static load per drawer | 30 kg | |
| Worktop surface abrasion resistance | 500 cycles | |
| Single station net weight | 95 kg | |
| Recommended user count per module | 1 person | |
| Lockable drawer security rating | Keyed alike cam lock | |
| Frame corrosion resistance | 300 hours salt spray | |
| Product warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | 18mm particleboard core | |
|---|---|---|
| Worktop finish | Light oak melamine laminate | |
| Side fixed cabinet panels | 16mm white melamine particleboard | |
| Privacy partition panels | Gray tackable fabric over MDF core | |
| Frame and partition support | 1.5mm thick gray powder-coated cold-rolled steel | |
| Edge banding | 2mm thick PVC edging | |
| Mobile pedestal body | 0.8mm powder-coated steel | |
| Mobile pedestal casters | 50mm diameter nylon swivel casters | |
| Cable grommet | ABS plastic black finish | |
| Foot glides | Nylon adjustable glides | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Single corner cable grommet routes power and data cables from worktop to floor | |
|---|---|---|
| Privacy screening | 1200mm tall corner fabric dividers block direct line of sight between adjacent workstations | |
| Mobile storage access | 2-drawer mobile pedestal rolls fully under worktop, lockable top drawer secures personal items | |
| Modular clustering | Pre-drilled steel frame connects to adjacent cubicle modules to form 2+ person work clusters | |
| Floor leveling | Adjustable nylon glides at each frame foot compensate for 10mm floor height variation | |
| Work surface layout | Curved internal front edge at knee opening provides 800mm wide seated access | |
| Fixed side storage | Full-height enclosed side cabinets form structural end supports for the worktop | |
| Modesty panel integration | Fabric privacy panels extend below worktop to block under-desk visibility | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan general office space | Suitable for clerical, administrative and back-office staff seated work in clustered team layouts | |
|---|---|---|
| Call center and shared workspace environments | Partial height dividers balance privacy and team collaboration for high-density seating | |
| Startup and co-working office fit-outs | Neutral light wood and white finish matches modern minimalist office interior schemes | |
| Government and corporate administrative floors | Durable steel frame and laminate surfaces withstand daily high-traffic office use | |
| Project-based team work zones | Modular connection points allow reconfiguration as team size and layout requirements change | |
| Small business office fit-outs with limited space | Corner L-shape maximizes work surface area within a small footprint |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to worktop load and stability | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic reference for seated work surface height and clearance dimensions | |
| EN 13986:2004+A1:2015 | Wood-based panel performance requirements for melamine-faced particleboard components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for static load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.6-2022 | Panel systems performance standard for modular cubicle partition strength and connection durability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel worktops and cabinet components | |
|---|---|---|
| GB/T 3327-2016 | Performance standards for office desks and workstations, applicable to structural load and stability testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use | |
| GB/T 24821-2009 | Performance requirements for office panel furniture screens and partitions |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel worktops and cabinet components; 2. GB/T 3327-2016: Performance standards for office desks and workstations, applicable to structural load and stability testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use; 4. GB/T 24821-2009: Performance requirements for office panel furniture screens and partitions; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
