PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 1600 × 1200 mm
Overall footprint	1600 x 1600 x 1200 mm
Worktop height above floor	760 mm
Worktop surface depth	700 mm
Privacy partition height	1200 mm
Partition panel thickness	60 mm
Knee clearance height under worktop	650 mm
Knee opening width at curved front	800 mm
Storage pedestal width (right side)	450 mm
Worktop thickness	25 mm
Drawer internal usable height	150 mm
Lower cabinet internal usable height	400 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed worktop static load capacity	91 kg
Seated visual privacy rating	100%
Unit net weight (assembled)	85 kg
Recommended user count	1 person
Surface scratch resistance	2000 cycles
Commercial product warranty length	5 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop surface	25mm thick E1 grade melamine-faced particleboard, 2mm PVC edge banding
Storage cabinet carcass	18mm thick melamine-faced engineered wood, matching two-tone gray/taupe finish
Partition lower panel	16mm thick laminated engineered wood, dark gray finish
Partition upper panel	Ribbed light gray louvered panel, metallic trim frame
Drawer slides	Cold-rolled steel ball-bearing full-extension slides
Cabinet and drawer handles	Matte silver-finish metal pulls, one per drawer/door
Desk support panels	18mm thick laminated engineered wood, dark gray finish
Drawer lock	Keyed cam lock for secured drawer storage
Modesty panel	16mm thick dark gray laminated panel under curved knee opening
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Two 60mm diameter desk grommets at partition corners for desktop wire routing
Drawer operation	Key-locking drawer on ball-bearing slides holds stationery and small files
Lower cabinet storage	Hinged single-door cabinet holds vertical files, CPU or bulk supplies
Partition accessory mounting	Metal frame slots support hanging name tags, file pockets or monitor arms
Modular connection	Pre-drilled panel connectors support joining to adjacent workstations
Open storage shelf	Fixed open shelf above drawer holds frequently accessed books or supplies
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Provides individual privacy for staff focused work in shared open offices
Small business staff work areas	All-in-one unit with storage requires no additional furniture for individual workstations
Call center and admin departments	Standard height partitions reduce visual distraction between adjacent staff
Startup office fit-outs	Modular design allows reconfiguration as team size and layout changes
Home office dedicated workspaces	Compact L-shape fits corner spaces with integrated storage for office supplies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable for structural performance
EN 1335-1:2020	Office furniture seating clearance reference for desk knee opening dimensions
EN 14073-2:2004	Office storage furniture safety requirements for pedestal cabinet and drawers

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable for quality inspection
GB 18580-2017	Formaldehyde emission limits for engineered wood panels, applicable for E1 grade compliance
GB/T 4897.3-2003	Particleboard specifications for furniture use, applicable to worktop and cabinet panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for quality inspection;
2. GB 18580-2017: Formaldehyde emission limits for engineered wood panels, applicable for E1 grade compliance;
3. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable to worktop and cabinet panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-CURV-CUB-1600-WS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-CURV-CUB-1600-WS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-CURV-CUB-1600-WSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

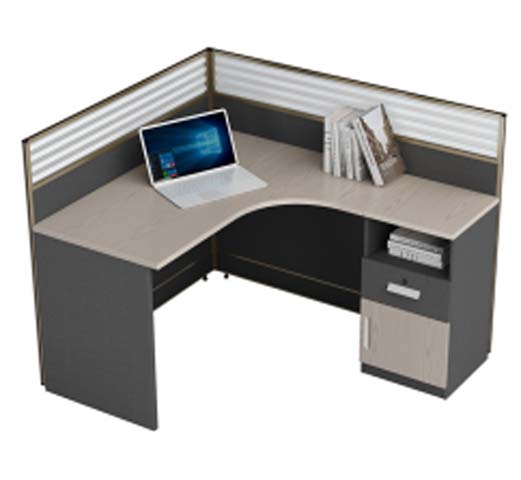

This single-person L-shaped curved-front office cubicle workstation is a self-contained workspace solution designed to balance privacy, storage, and efficient use of floor space. Its signature L-shaped layout is optimized for corner placement, with a smooth curved front edge that creates a generous knee opening for seated access, while framed privacy dividers line the work area to form a defined individual work zone. The design features a coordinated two-tone finish pairing gray and taupe storage and work surfaces with dark gray lower partition panels, ribbed light gray louvered upper panels trimmed in metallic framing, and matte silver hardware for a polished, professional aesthetic. The workstation is built for long-term regular use, with a 25mm thick E1 grade melamine-faced particleboard worktop finished with 2mm PVC edge banding to protect against daily wear. All storage carcasses, desk support panels, partition lower sections, and modesty panels are constructed from durable melamine or laminated engineered wood, with cold-rolled steel ball-bearing full-extension drawer slides, keyed cam locks for secured storage, and robust metal hardware for all structural connections. The integrated storage system occupies the right side of the unit, with a key-locking drawer for stationery and small files, a fixed open shelf above the drawer for frequently accessed items, and a hinged single-door lower cabinet sized to hold vertical files, a desktop CPU, or bulk office supplies. Two desk grommets positioned at partition corners support clean cable routing for desktop devices, while slots built into the partition metal frames accommodate hanging name tags, file pockets, or monitor arms. Pre-drilled panel connectors allow the unit to be joined to adjacent matching workstations for flexible layout planning, and the partition height delivers full seated visual privacy to cut down on cross-workspace distraction. This model works effectively across a wide range of settings. In commercial environments, it is well suited for open plan offices where staff need defined private zones for focused work, small business work areas where its all-in-one design eliminates the need for separate additional storage furniture, call center and administrative departments where consistent partition heights reduce visual distraction between adjacent team members, and startup fit-outs where modular construction supports easy reconfiguration as team sizes and space needs evolve. It also functions well as a dedicated home office workstation, with its compact L-shape designed to fit neatly into residential corner spaces alongside built-in storage for home office supplies. Procurement teams should note the unit ships in two cartons per set, with straightforward on-site assembly, and is backed by a 5-year commercial product warranty. Its modular construction supports phased office rollouts and future layout adjustments, while the integrated storage design reduces total furnishing requirements per individual workspace. The fixed worktop height and privacy partition dimensions are engineered for standard seated office use, with ample knee clearance for comfortable extended work sessions.

Single-Person L-Shaped Curved-Front Office Cubicle Workstation with Integrated Storage Specifications
